7-16 Section 7-5 - Remote Access to Service Platform
7-5-2 How the Customer enables/disables Disruptive Mode and VCO
1) If not already in read mode, FREEZE the image.
2) Move the cursor to the GE icon and press the
right trackball key (= right-click).
3) Select Connect Clinical Lifeline (see: Figure 7-12 on page 7-16 (R1, R2, R2.5 only) or Figure 7-
13 on page 7-16(R3 only) below).
This activates “Disruptive Mode” and “VCO” for the application OLC to quickly assist the customer.
NOTE: To disable disruptive mode, select “CANCEL”.
7-5-3 GE Icon and Remote Connection
Refer to Section 5-9 for Remote Access Icons.

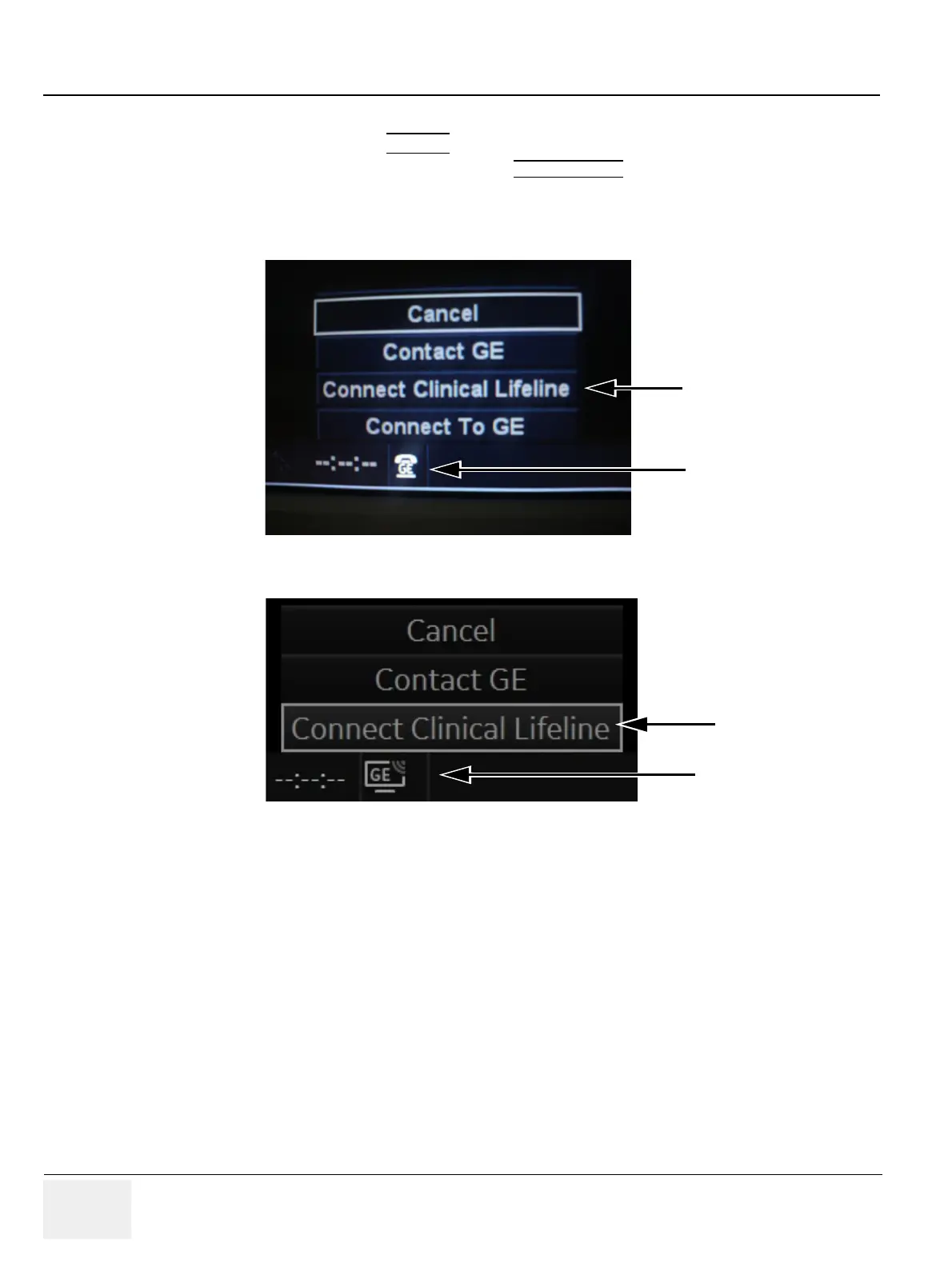

Figure 7-12 Connect Clinical Lifeline (R1, R2, R2.5 only)
Figure 7-13 Connect Clinical Lifeline (R3 only)
GE icon
Enables Disruptive
Mode and VCO
GE icon
Enables Disruptive
Mode and VCO
