GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-156 Section 8-33 - Replacement of the Paper tray

Section 8-33

Replacement of the Paper tray

8-33-1 Manpower

1 Person, 1 minutes.

8-33-2 Tools

None Required.

8-33-3 Removal Procedure

1) Remove Paper tray from Top Cover.

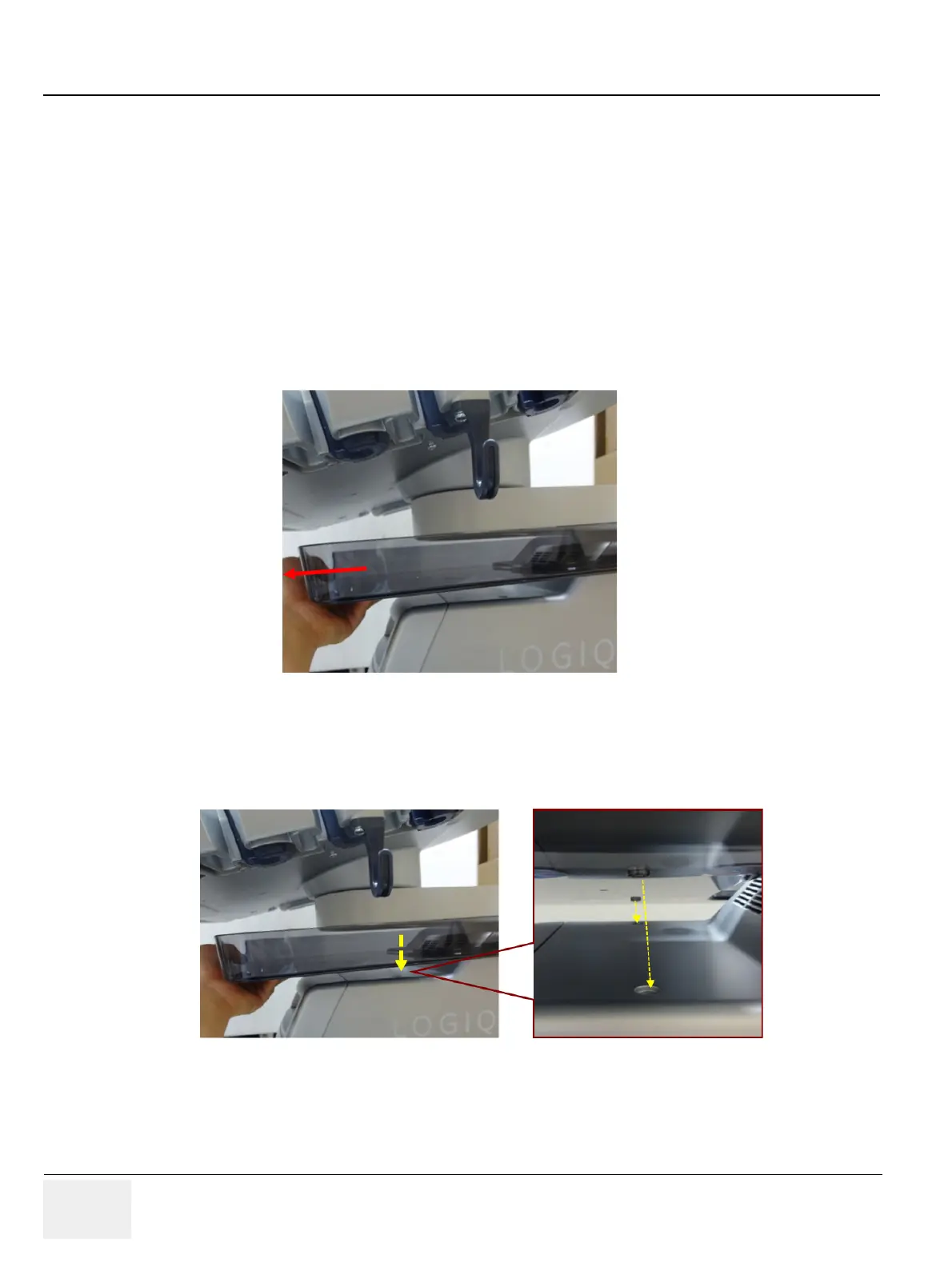

Figure 8-184 Removal of Paper tray

8-33-4 Installation Procedure

1) Align the assembly point and put the Paper Tray on Top Cover.

8-33-5 Functional Check

Visual inspection Only.
