GE
RAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019)
S
ERVICE
M
ANUAL
8-46
Section 8-3 - Syst
em Software - Installation/Upgrad
e Procedure
8-3-7-6
Software DVD / USB Storage

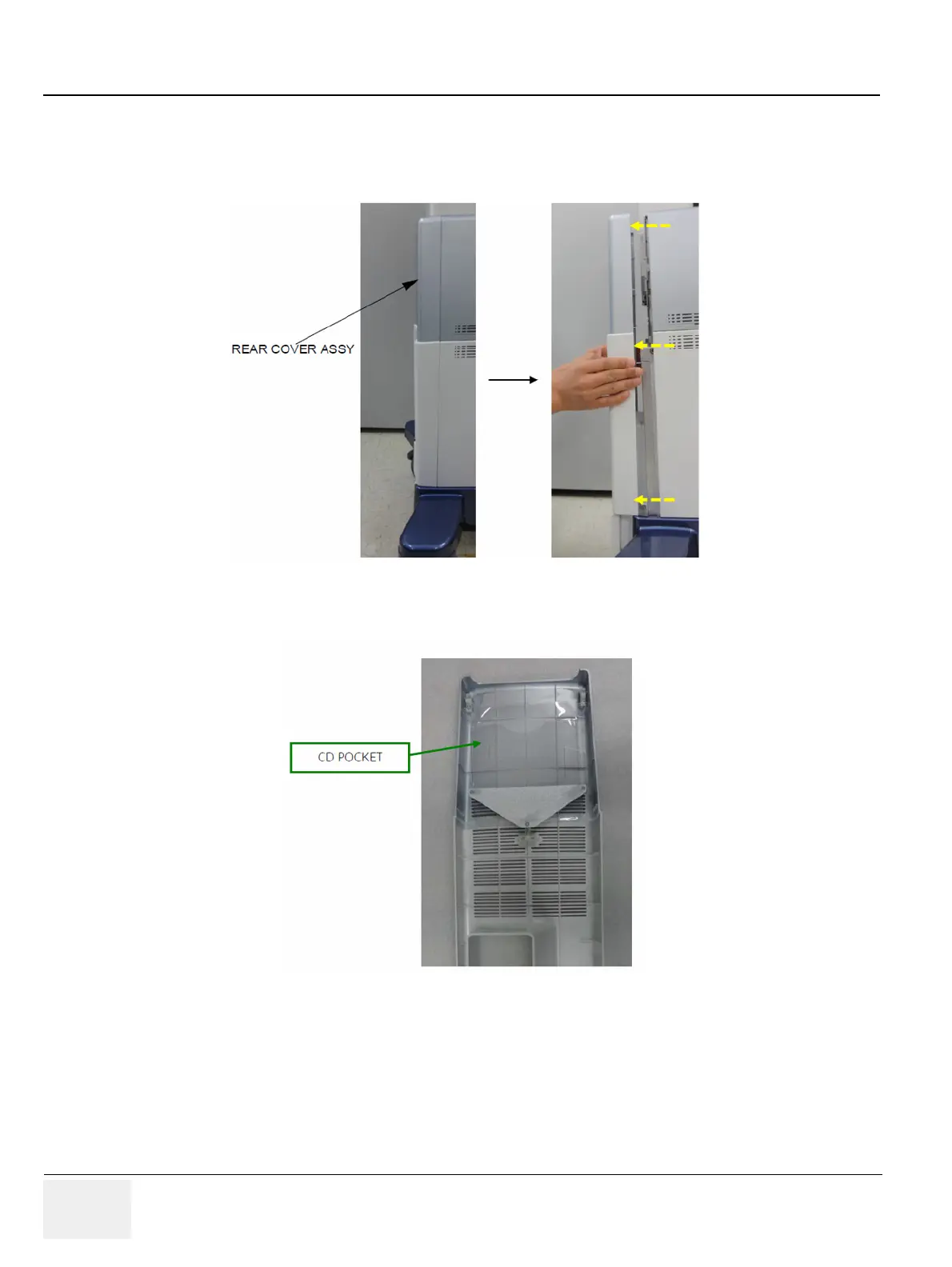

Remove the rear cover and
store the software DVD / USB in the system.
1)
Remove the rear cover.
2)
Store the Software DVD in th
e pocket. (R1, R2, R2.
5 only)
Figure 8-29
Removing the rear cover
Figure 8-30
CD pocket
371
373
