Chapter 5 - Components and Functions (Theory) 5-25
5-9-2-2 How the Customer enables/disables Disruptive Mode and VCO
1) If not already in read mode, FREEZE
the image.
2) Move the cursor to the GE icon and press the
right trackball key (= right-click).
3) Select Connect Clinical Lifeline (see: Figure 5-15 on page 5-25 (R1, R2, R2.5 only) or Figure 5-
16 on page 5-25 (R3 only) below).
This activates “Disruptive Mode” and “VCO” for the application OLC to quickly assist the customer.
NOTE: To disable disruptive mode, select "CANCEL".

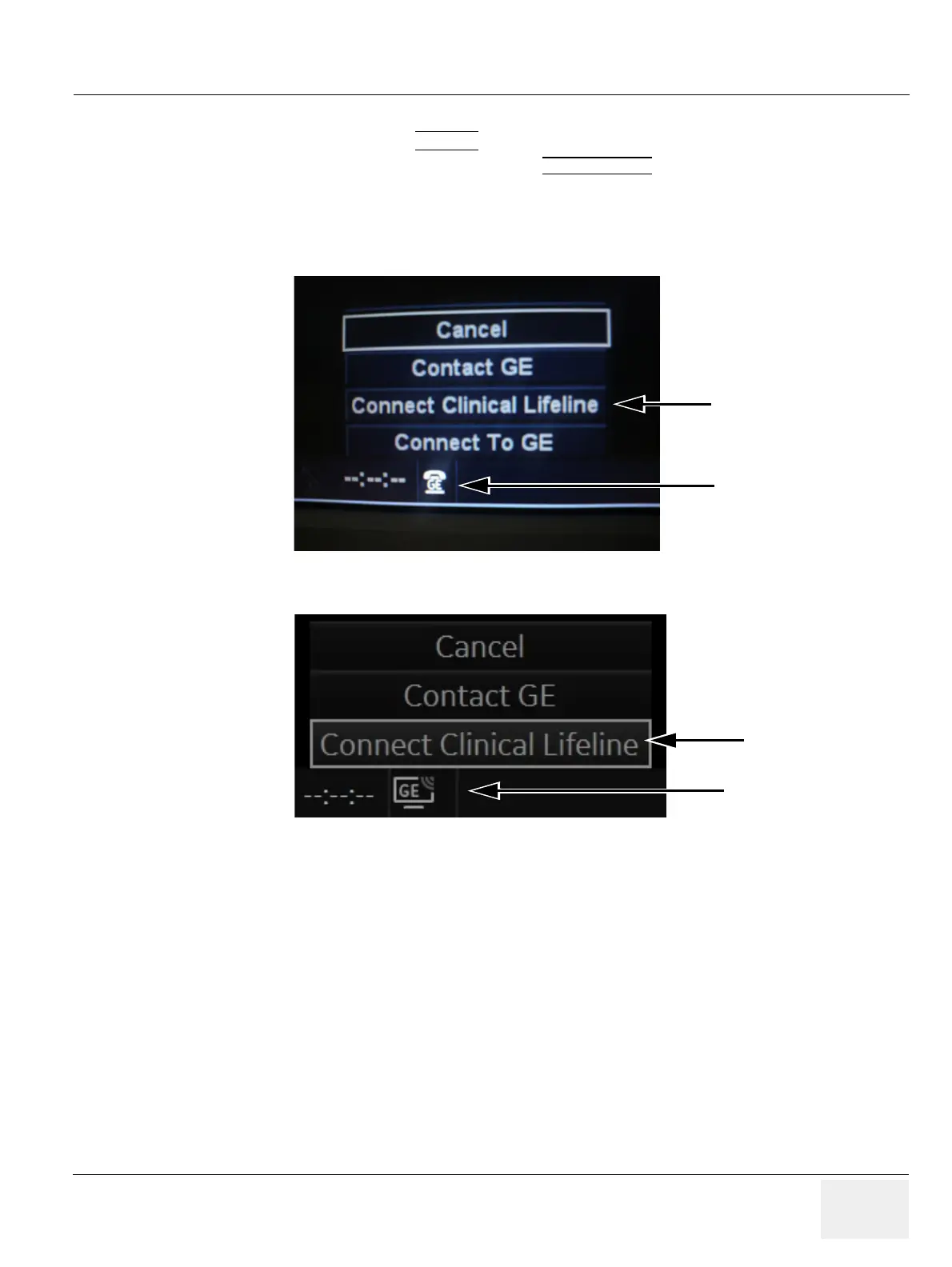

Figure 5-15 Connect Clinical Lifeline (R1, R2, R2.5 only)
Figure 5-16 Connect Clinical Lifeline (R3 only)
GE icon
Enables Disruptive
Mode and VCO
GE icon
Enables Disruptive
Mode and VCO
