GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-148 Section 8-29 - Replacement of Peripheral Cable Assy

8-29-1-5 Installation Procedure

Parts to be installed in reverse order of removal. But, refer to below procedure for cable ties.

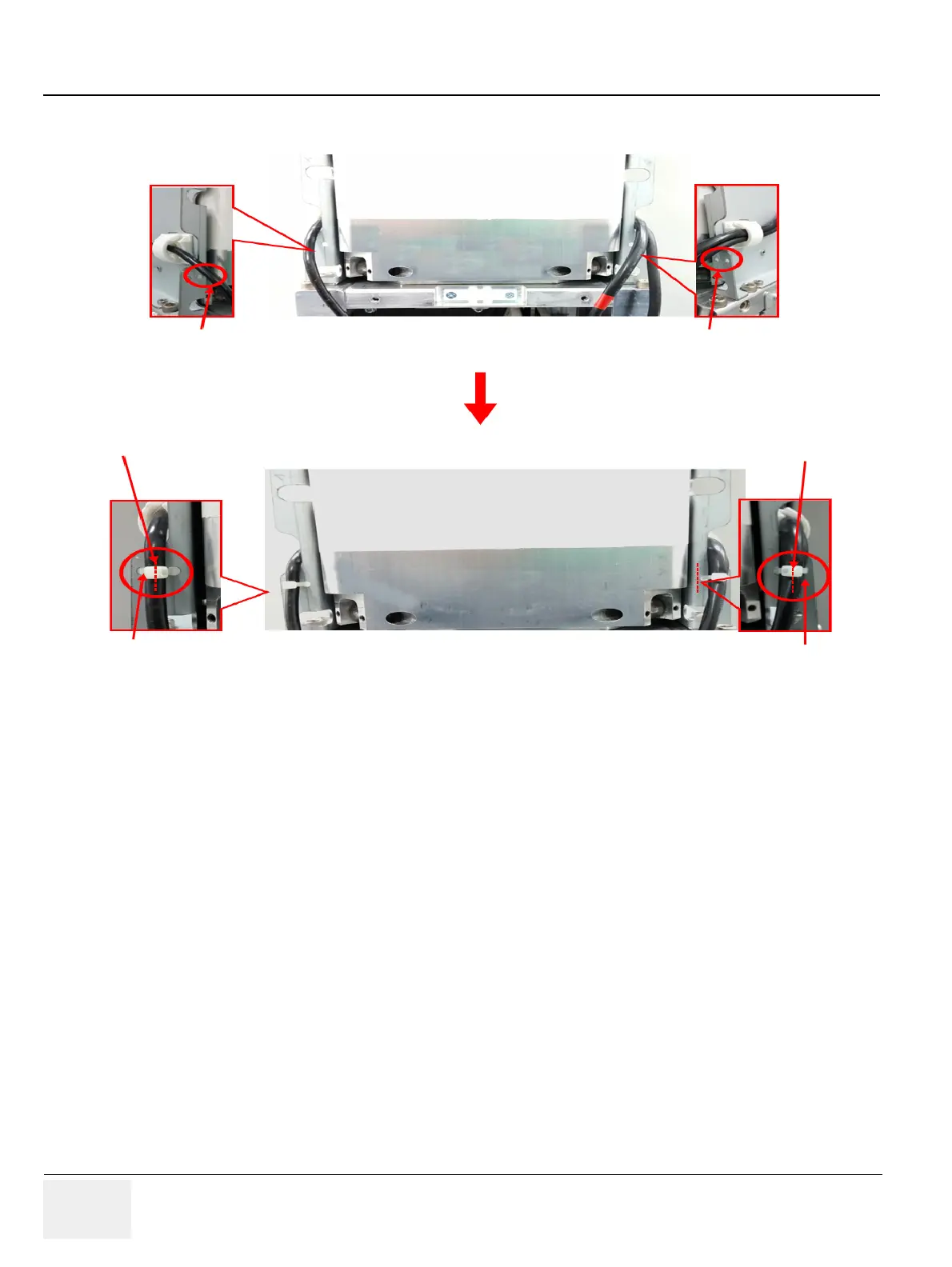

Figure 8-173 Tie cables with the ties through the holes

2 holes for fixing cable tie

Align the head of cable tie as shown

Cable tie
