GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Pr
ocedures
8-205
Section 8-52
Replacement of Probe Light assy
8-52-1
Manpower
1 person, 20minutes
8-52-2
Tools
Standard Phillips Screw driver
8-52-3
Pre work
1)
Remove OPIO Panel assy (refer to section 8-14)
8-52-4
Removal Procedure
1)
Remove probe light cable.

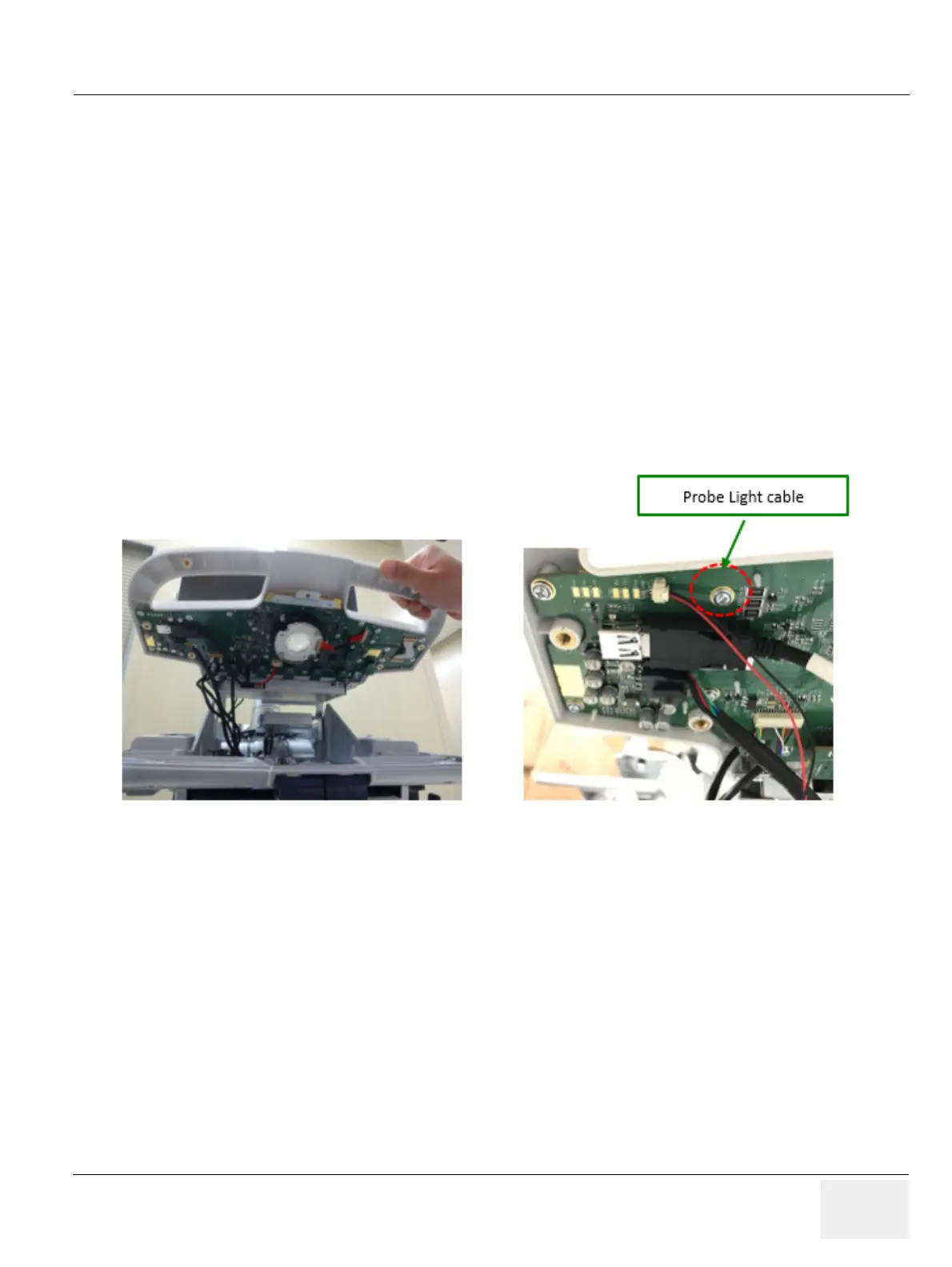

Figure 8-249 Remove of probe light cable from LP7P9 OPIO MAIN BOARD PW
A
530
532
