GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-71

Section 8-10

Replacement of Side Tray & Foot Rest Cover

8-10-1 Manpower

1 person, 15 min.

8-10-2 Tools

Standard Phillips Screwdriver.

NOTE: “Short” type driver preferable for Foot Rest Cover removal/installation.

8-10-3 Removal Procedure

8-10-3-1 Removal Procedure - Side Tray.

Procedures are common for both the Left and Right Side Tray.

1) Remove 2 screws and carefully lift up the side tray.

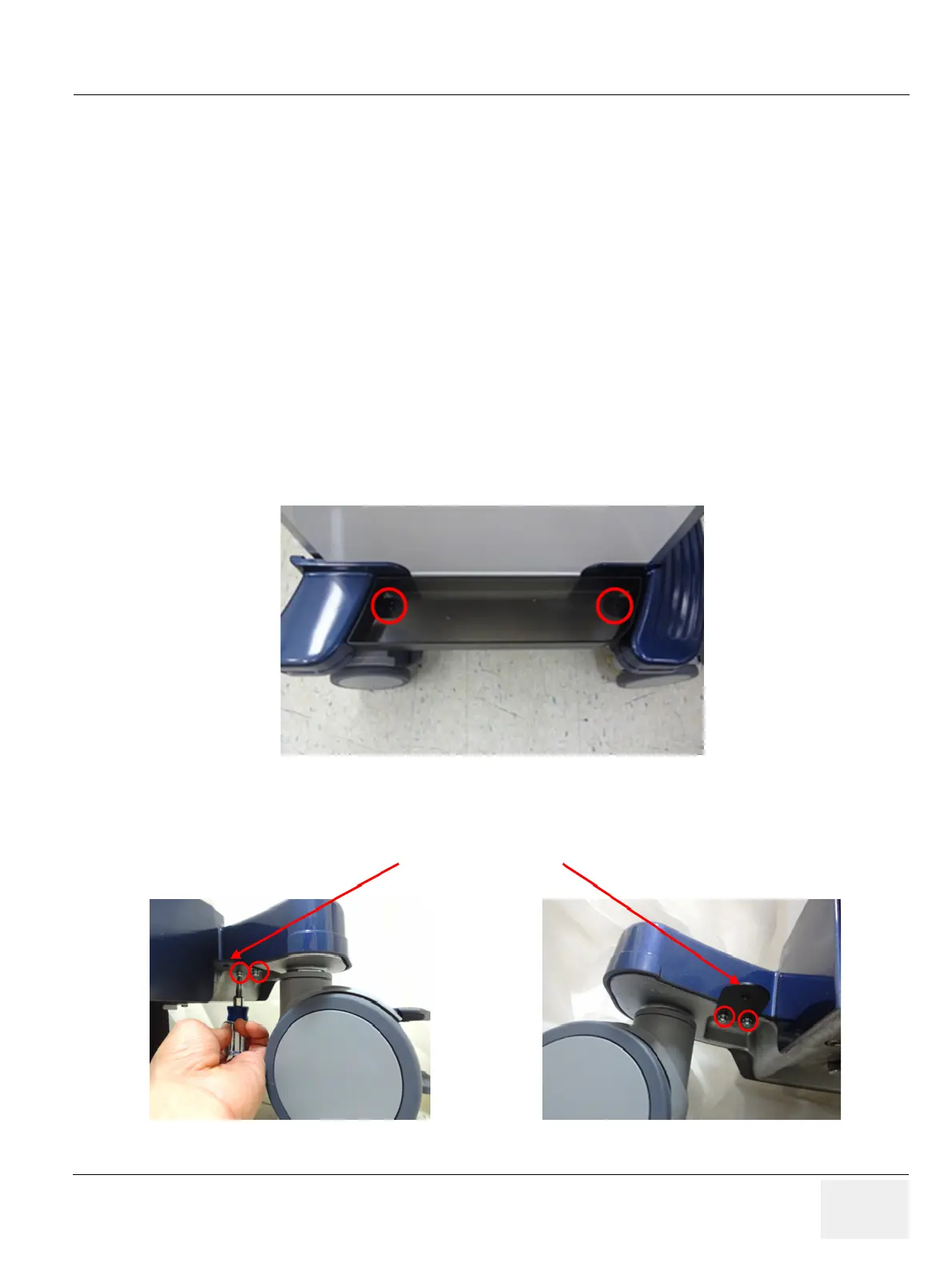

Figure 8-56 Side Tray screw points

2) Remove 2 screws and carefully lift up the side tray.

Figure 8-57 SIDE TRAY FIX BRKT screw points

SIDE TRAY FIX BRKT
