GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-108 Section 8-17 - Replacement around Nest Box

8-17-9 Removal Procedure - Separating DCWD Board(Option) from MPI

Philips screw-driver required to add this part.

1) Remove 3 screws on MPI assy.

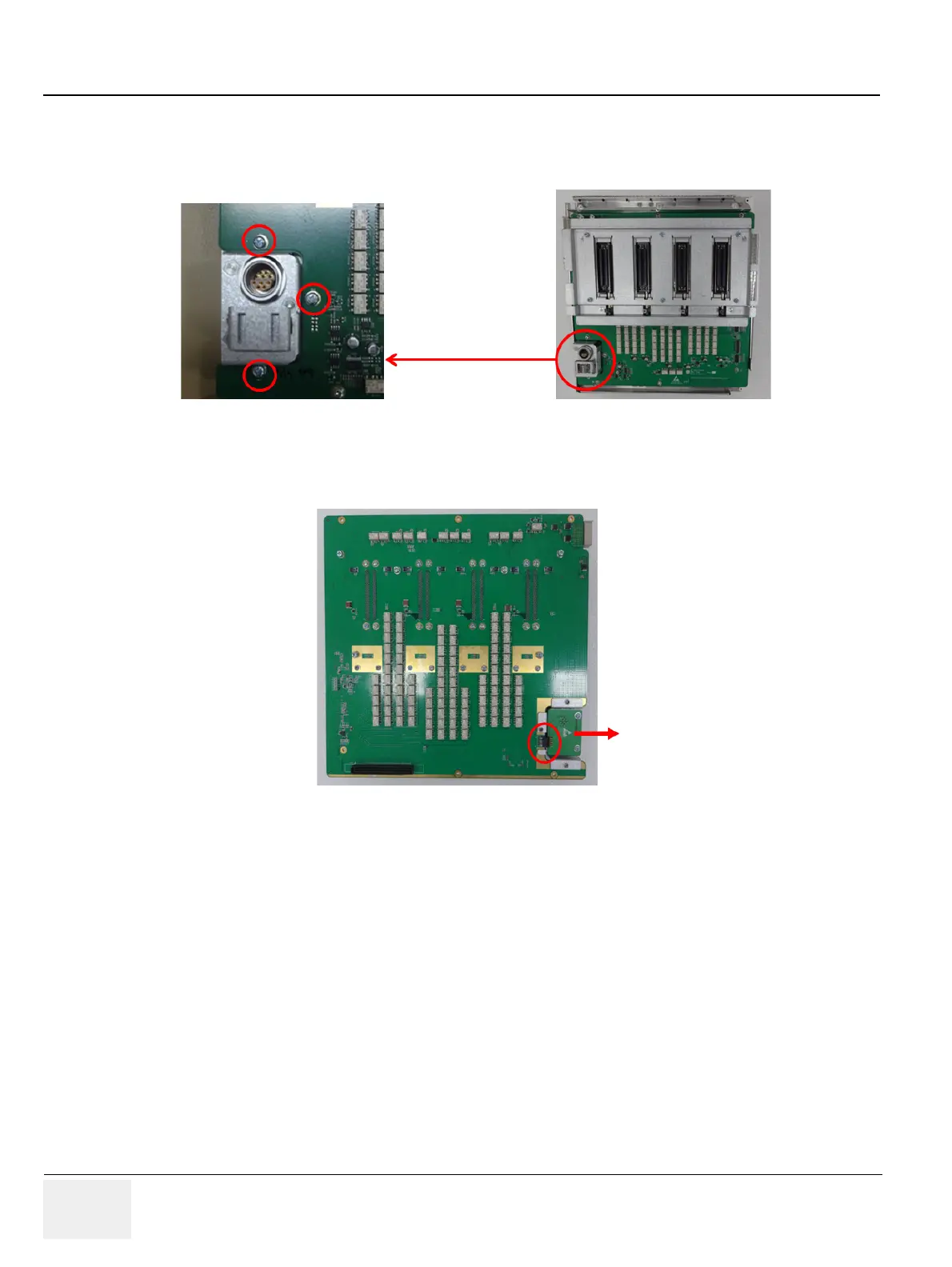

Figure 8-118 DCWD Board screw points

2) Carefully separate DCWD board from MPI assy not to damage the DCWD connector. Refer to

following figure.

Figure 8-119 Position of DCWD board connector
