Chapter 8 - Replacement Procedures 8-119
Section 8-19
Replacement of Bottom fan
8-19-1 Manpower
1 Person, 10 minutes.
8-19-2 Tools
Hex Wrench.
8-19-3 Removal Procedure
1) Remove the Front Cover from system. (refer to section 8-6)
2) Remove the nest Box from system. (refer to section section 8-17-5)
3) Remove 4 Hex screws, front bottom and rear side.

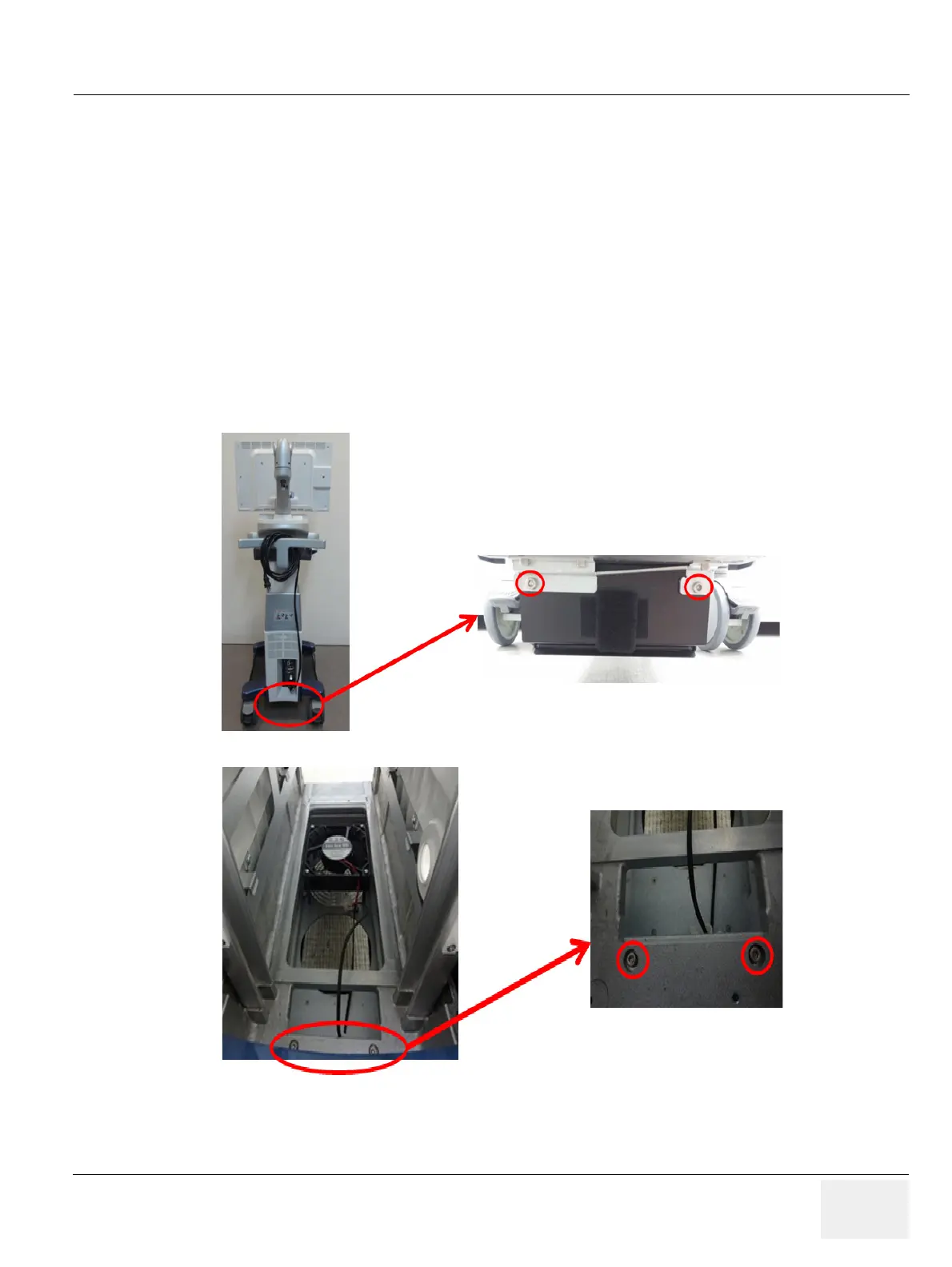

Figure 8-139 Fan screw points of bottom fan assy
