GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 3 - Setup Instructions
3-27
3-7-3-1
Scanner Shutdo
wn
1)
If not already in read mode, freeze the imag
e.
2)
Press the
ON/OFF
button (see:
Figure 3-10
) on the
control panel. Following
dialog appears.

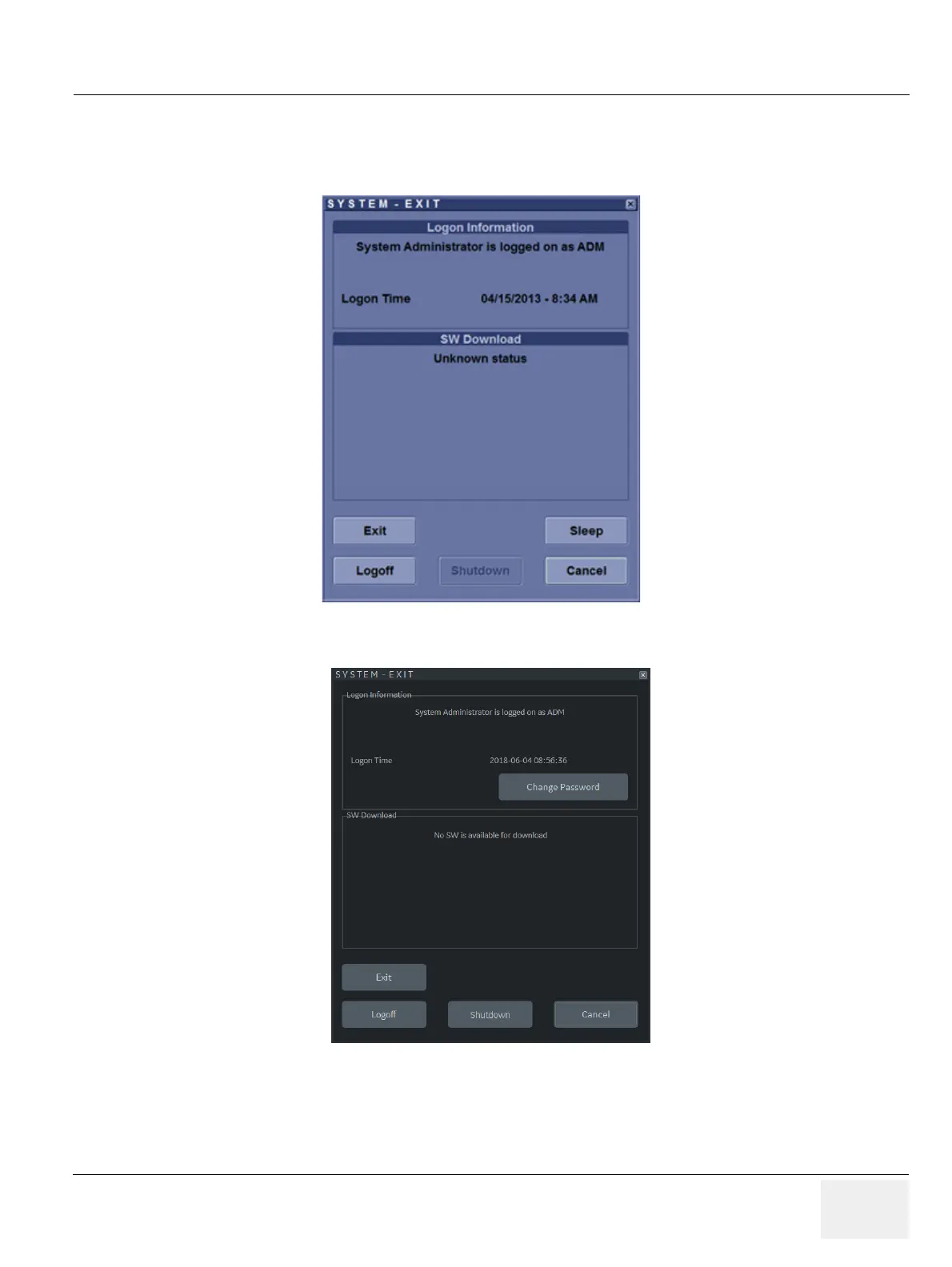

Figure 3-15 System - Exit (R2 and
R2.5)
Figure 3-16 System - Exit (R3)
94
