GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-78 Section 8-12 - Replacement of Monitor Covers

Section 8-12

Replacement of Monitor Covers

8-12-1 Manpower

2 persons, 10 minutes.

8-12-2 Tools

Standard Phillips Screwdriver, Hex Wrench

8-12-3 Pre-Work

1) LCD Monitor and Monitor Cable Cover removed (refer to section 8-11)

8-12-4 Removal Procedure

1) Remove 9 screws and remove the Monitor Rear Cover.

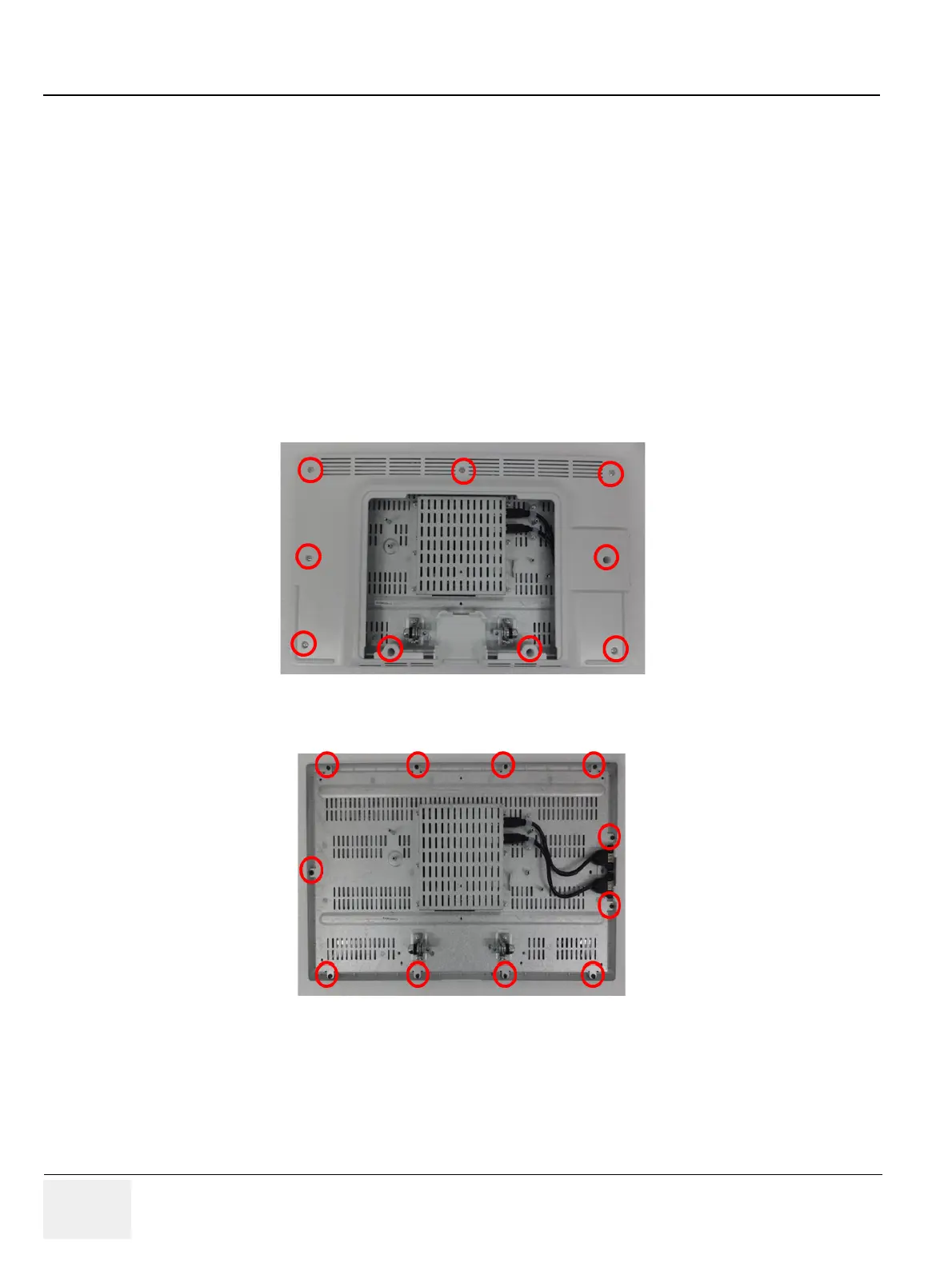

Figure 8-68 Monitor Rear Cover screw points

2) Remove 11 screws and remove the Monitor Front Cover and Glass Filter Assy.

Figure 8-69 Monitor Front Cover screw points
