GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-7

Section 7-3

Check Points Voltages

7-3-1 LED for Power Status

LEDs near the front cooling fan can provide information pertaining to the DC power distribution status.

1) Remove Front Cover (no tools required)

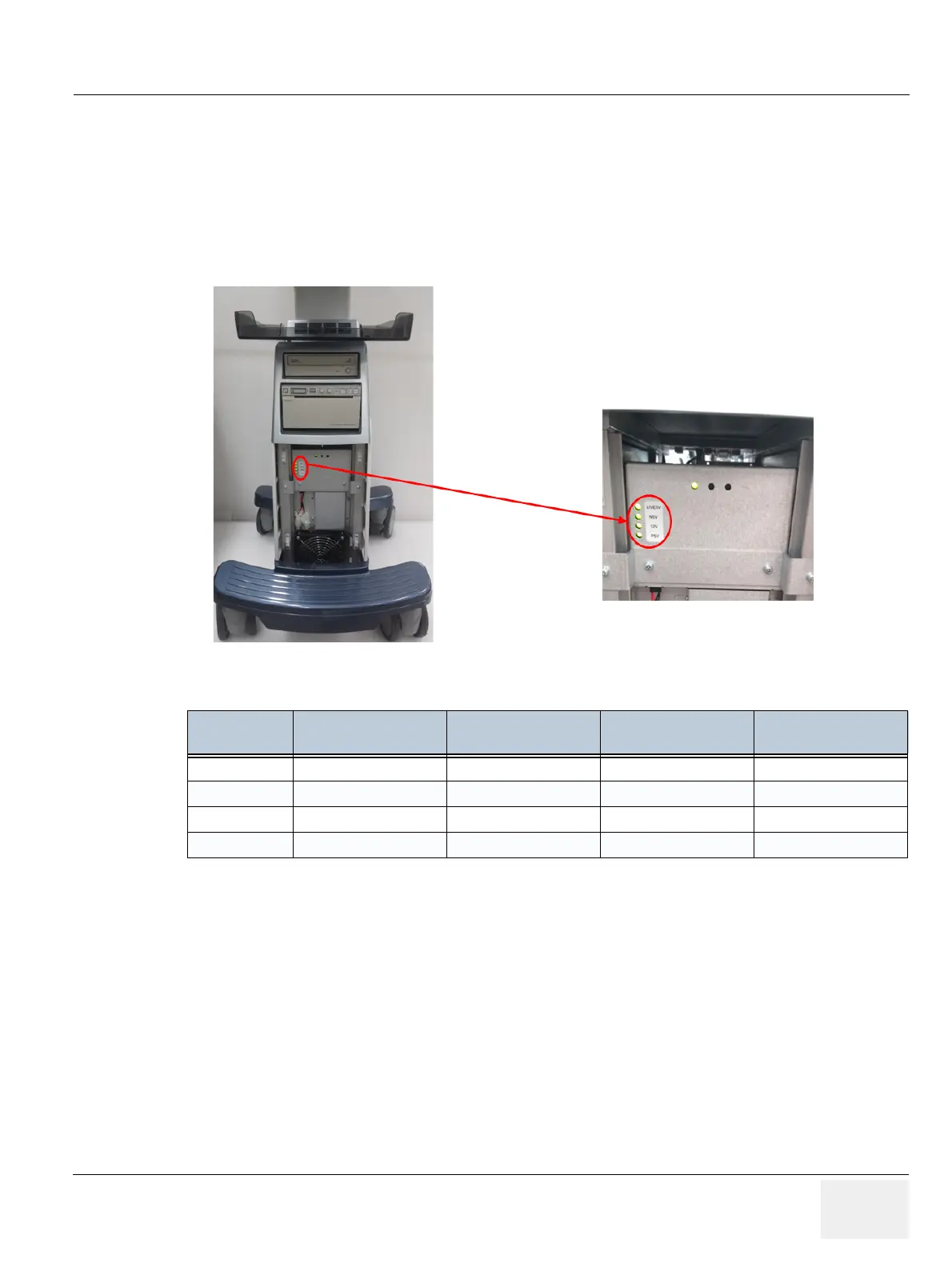

Figure 7-10 LED for Power Status

LED

Breaker OFF

System OFF

Breaker ON

System OFF

Breaker ON

System ON

Breaker ON

System Sleep

LIVE5V

OFFONONON

N5V

OFF OFF ON OFF

12V

OFF OFF ON OFF

P5V

OFF OFF ON OFF

Voltage Status
