GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Pr
ocedures
8-107
8-17-8
Removal Procedure
- Separating MPI and MCB
1)

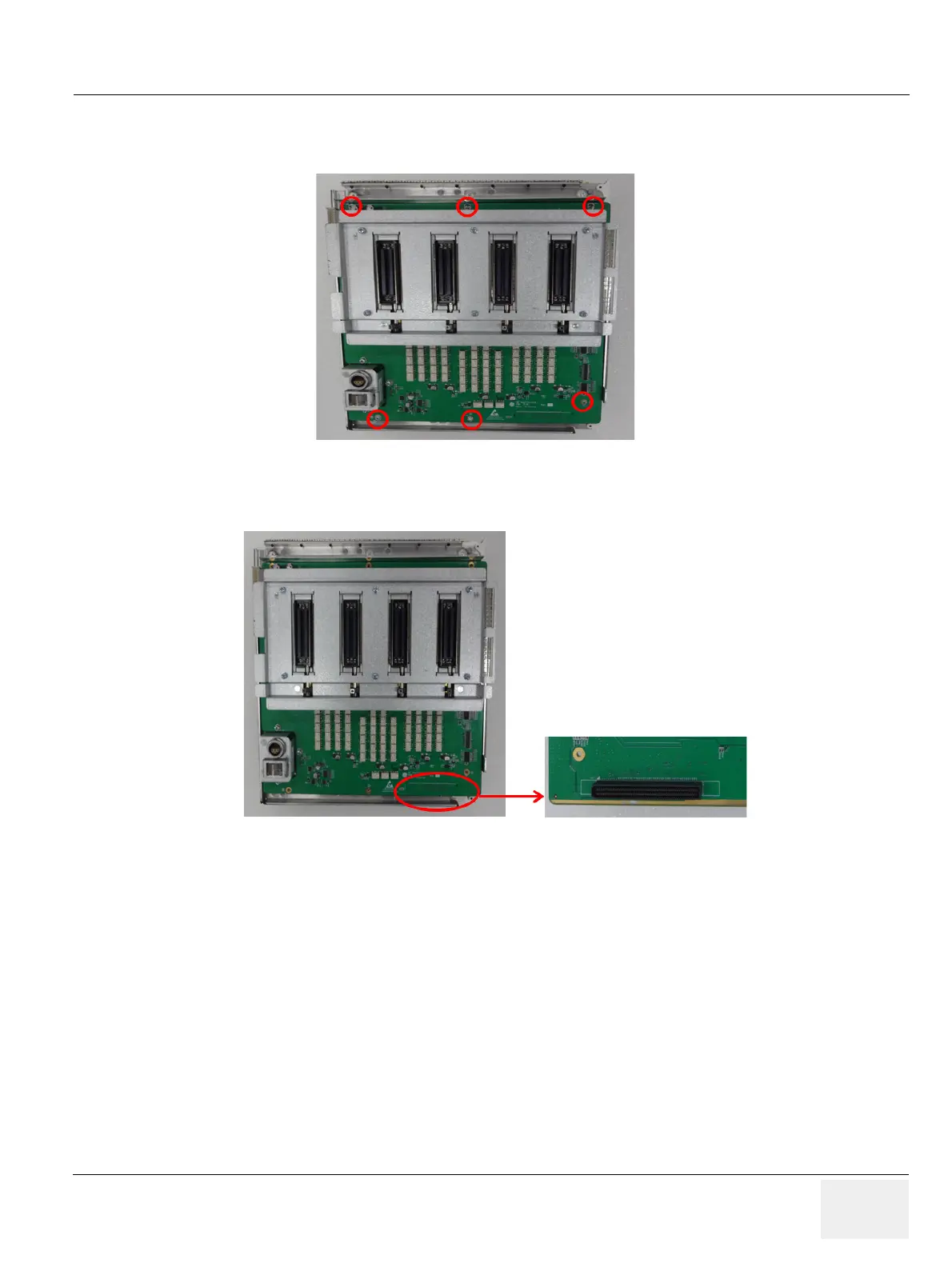

Unscrew 6 screws. Refer to following figure.
Figure 8-1
16 Screw points on MPI
assy
2)
Carefully separate MPI assy from
MCB assy. Refer to
following figure.
Figure 8-1
17 Lifting up MPI and position of Stacking
up connector on MPI assy
432
434
