GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-146 Section 8-29 - Replacement of Peripheral Cable Assy

Section 8-29

Replacement of Peripheral Cable Assy

8-29-1 DVD Cables

8-29-1-1 Manpower

1 person, 5 minutes.

8-29-1-2 Tools

Nipper, 2 Cable ties (GEPN: 2160955).

8-29-1-3 Pre work

1) Remove Rear Cover. (refer to section 8-9)

2) Remove Top Cover. (refer to section 8-7)

3) Remove Cable Cover Bracket. (refer to section 8-17)

8-29-1-4 Removal Procedure

1) Remove the cable ties.

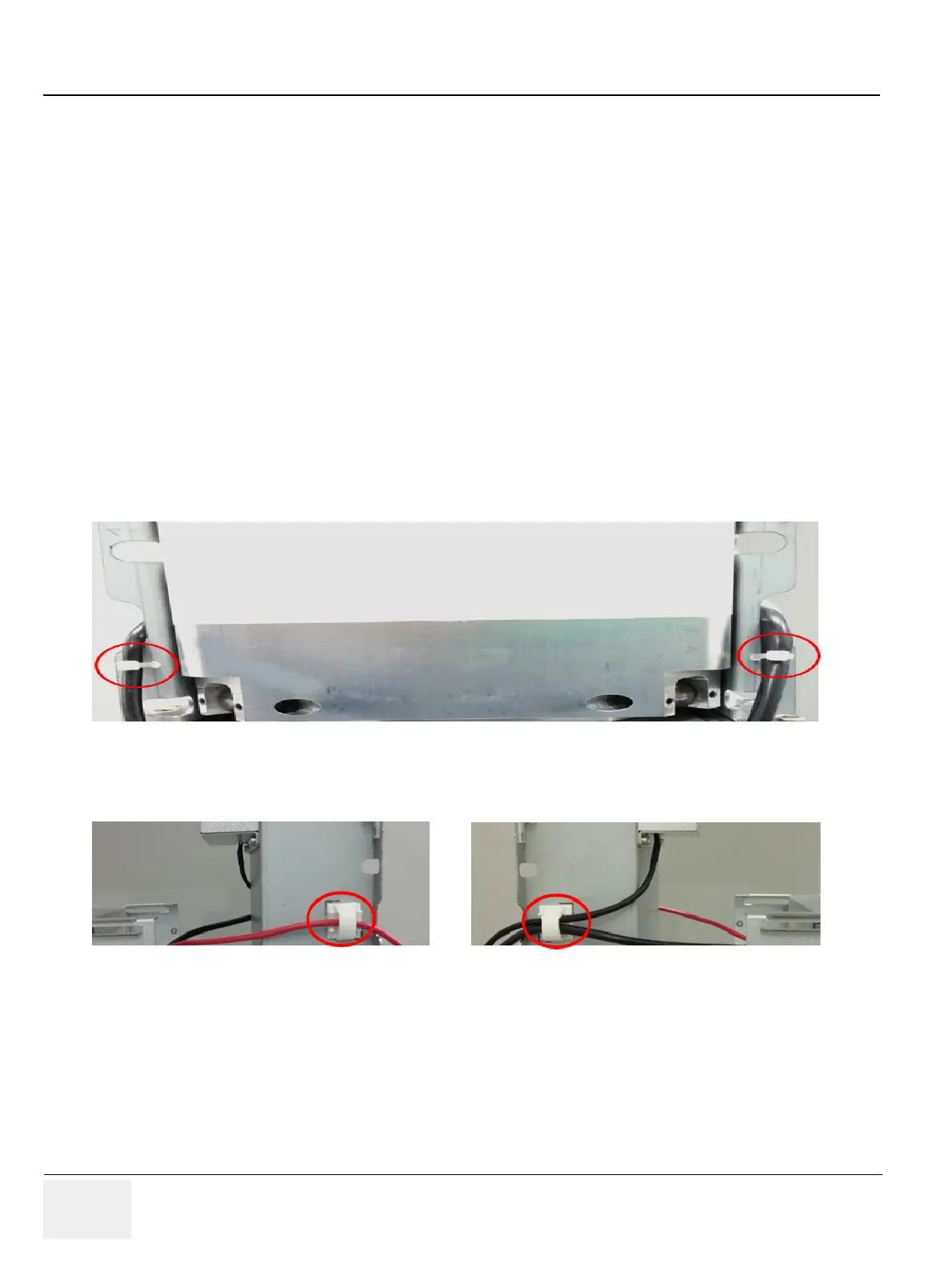

Figure 8-169 Cable tie points

2) Unlock cable clamp. Refer to following figure.

Figure 8-170 Cable clamps
