GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-157

Section 8-34

Replacement of AC Cable Holder

8-34-1 Manpower

1 Person, 5 minutes.

8-34-2 Tools

Standard Phillips Screwdriver.

8-34-3 Removal Procedure

1) Remove 2 Screws from AC Cable Holder

NOTE: This procedure applicable to all AC Power Cord replacement

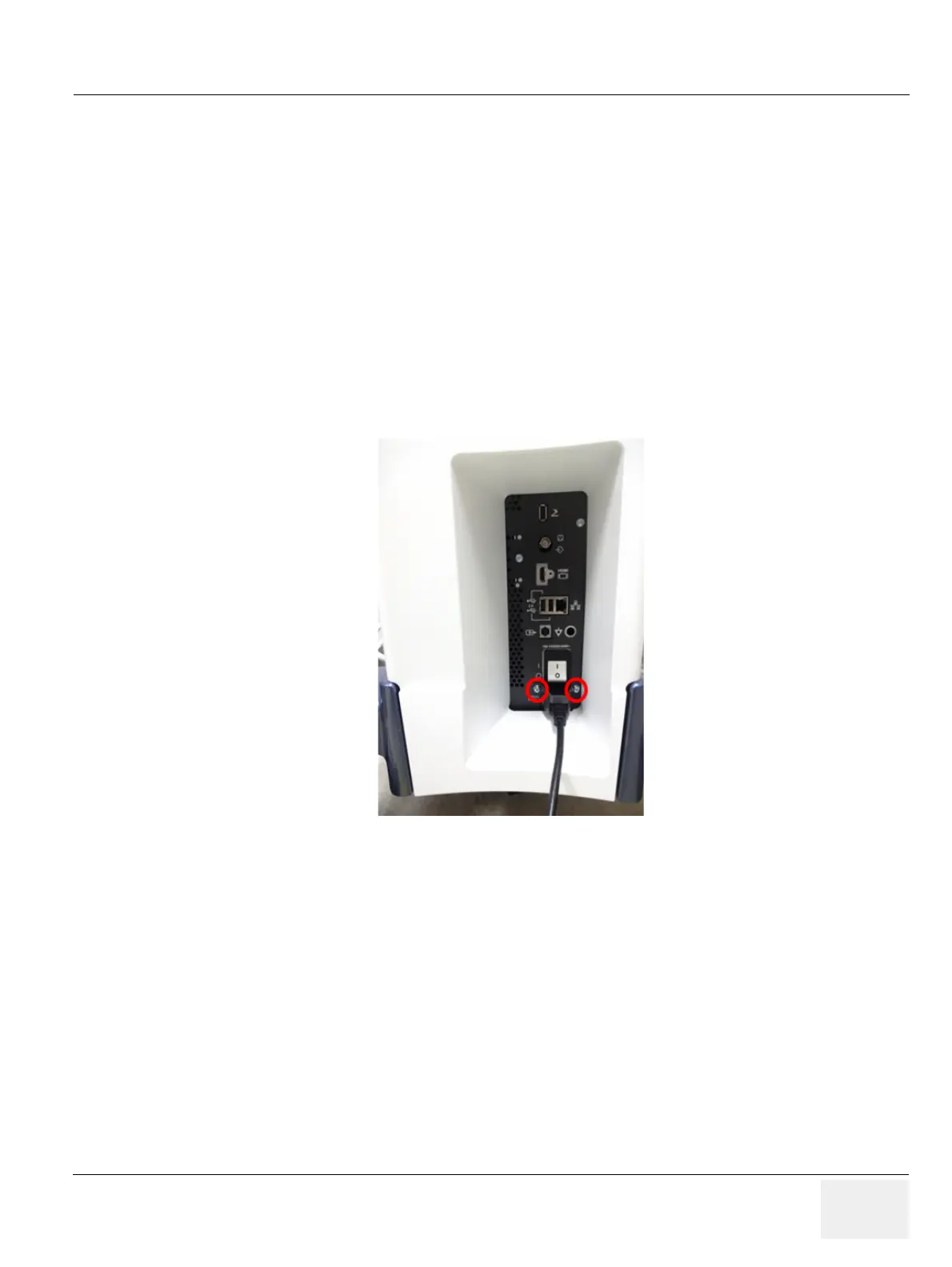

Figure 8-185 AC Cable Holder

8-34-4 Installation Procedure

Parts to be installed in reverse order of removal.

8-34-5 Functional Check

Visual inspection Only.
