GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-48 Section 8-3 - System Software - Installation/Upgrade Procedure

8-3-8 Software Installation from Common Service Desktop (R1.x.x or R2.x.x)

NOTE: This procedure requires PC with LAN connection capable of reaching to to GE Network

8-3-8-1 Involking Software Reload

1) Select [SERVICE] from [UTILITY] Menu (R1.x.x) or Select [SERVICE] from [UTILITY] Menu

(R2.x.x)

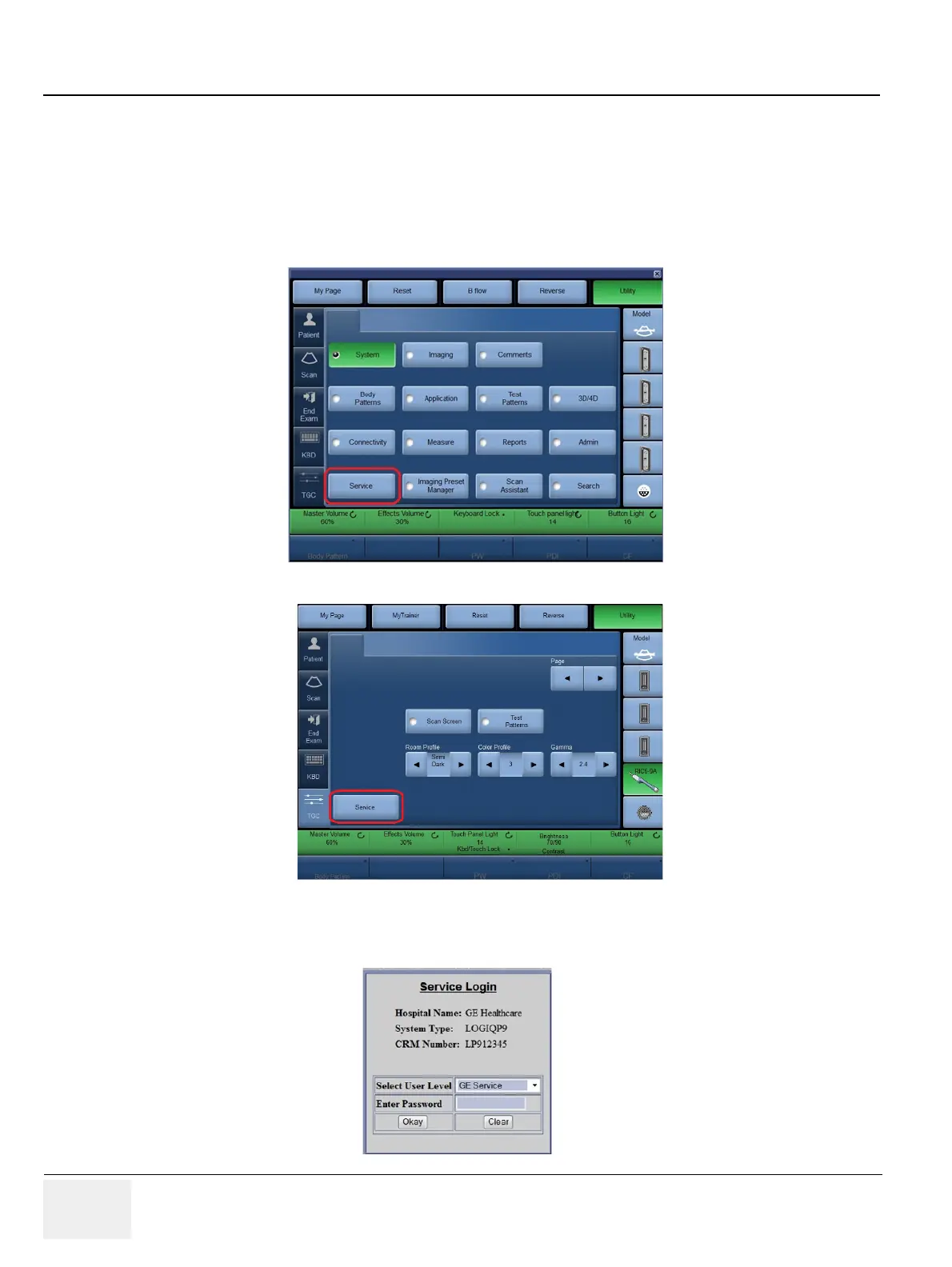

Figure 8-32 Utility menu (R1.x.x)

Figure 8-33 Utility menu (R2.x.x)

2) Select “GE Service” and enter Password

Important Precautions3
