GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-38 Section 8-3 - System Software - Installation/Upgrade Procedure
8-3-7-3 System Software - Installation Procedure (R3.x.x)
8-3-7-3-1 Set the system boot order (BIOS setting)
1.) Prepare the THUMB DRIVER R3.x.x (USB media) including Base Image Load Windows 10.
2.) Insert USB media to on the system USB port.
3.) Power on the scanner
4.) Press “DEL” (If AN key is installed) or press left bottom key of trackball (If there’s no AN Key) to
enter BIOS
5.) Enter the “maru” in Enter Password

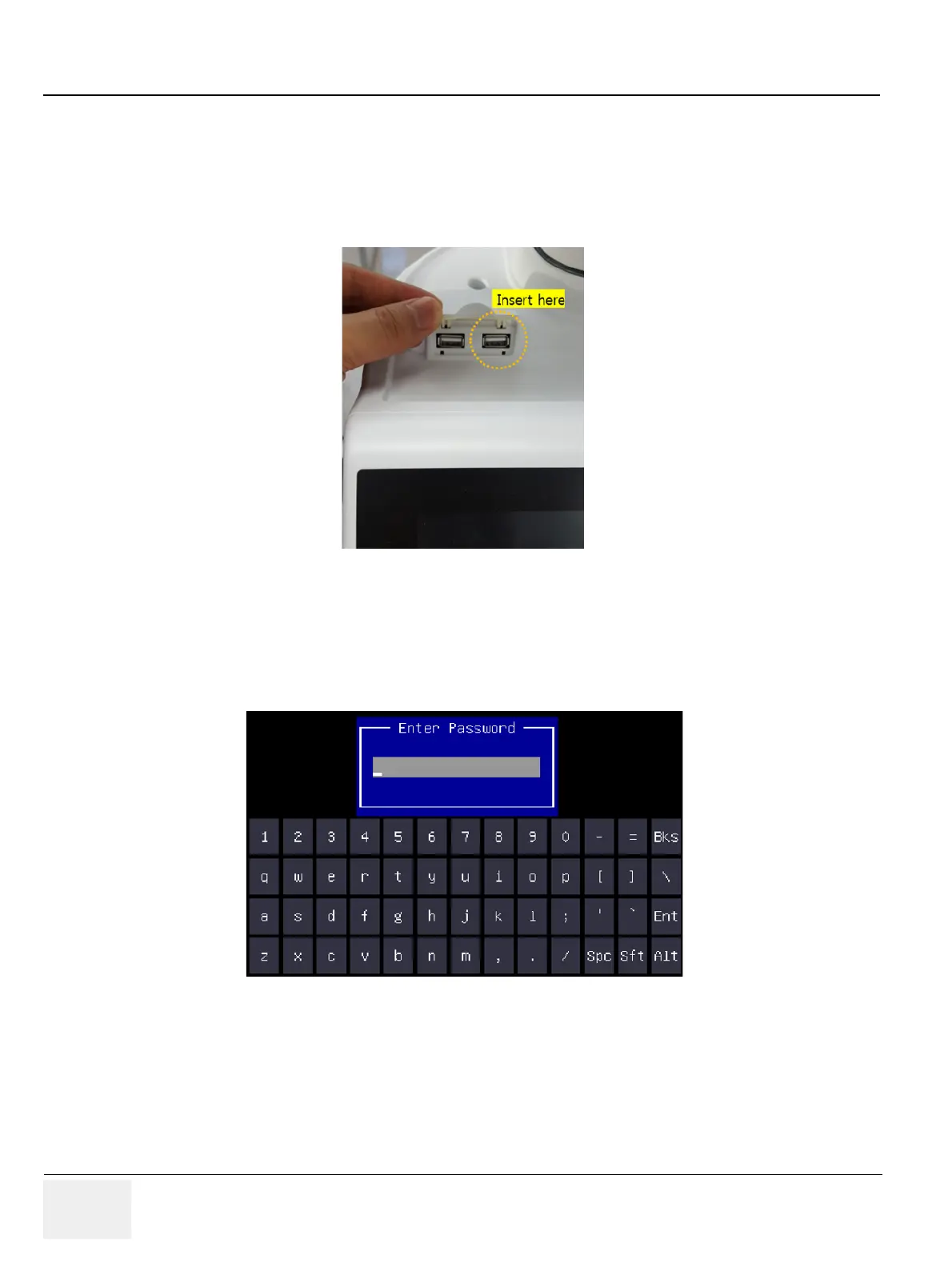

Figure 8-19 System USB port
Figure 8-20 Enter Password
To Next Page
