Chapter 8 - Replacement Procedures 8-155

Section 8-32

Replacement of the OPIO Tray

8-32-1 Manpower

1 Person, 5 minutes.

8-32-2 Tools

Standard Phillips Screwdriver.

8-32-3 Removal Procedure

1) Remove screw as following figure and carefully remove OPIO Tray.

NOTE: Make sure not to lose tray fix brkt when removing OPIO Tray.

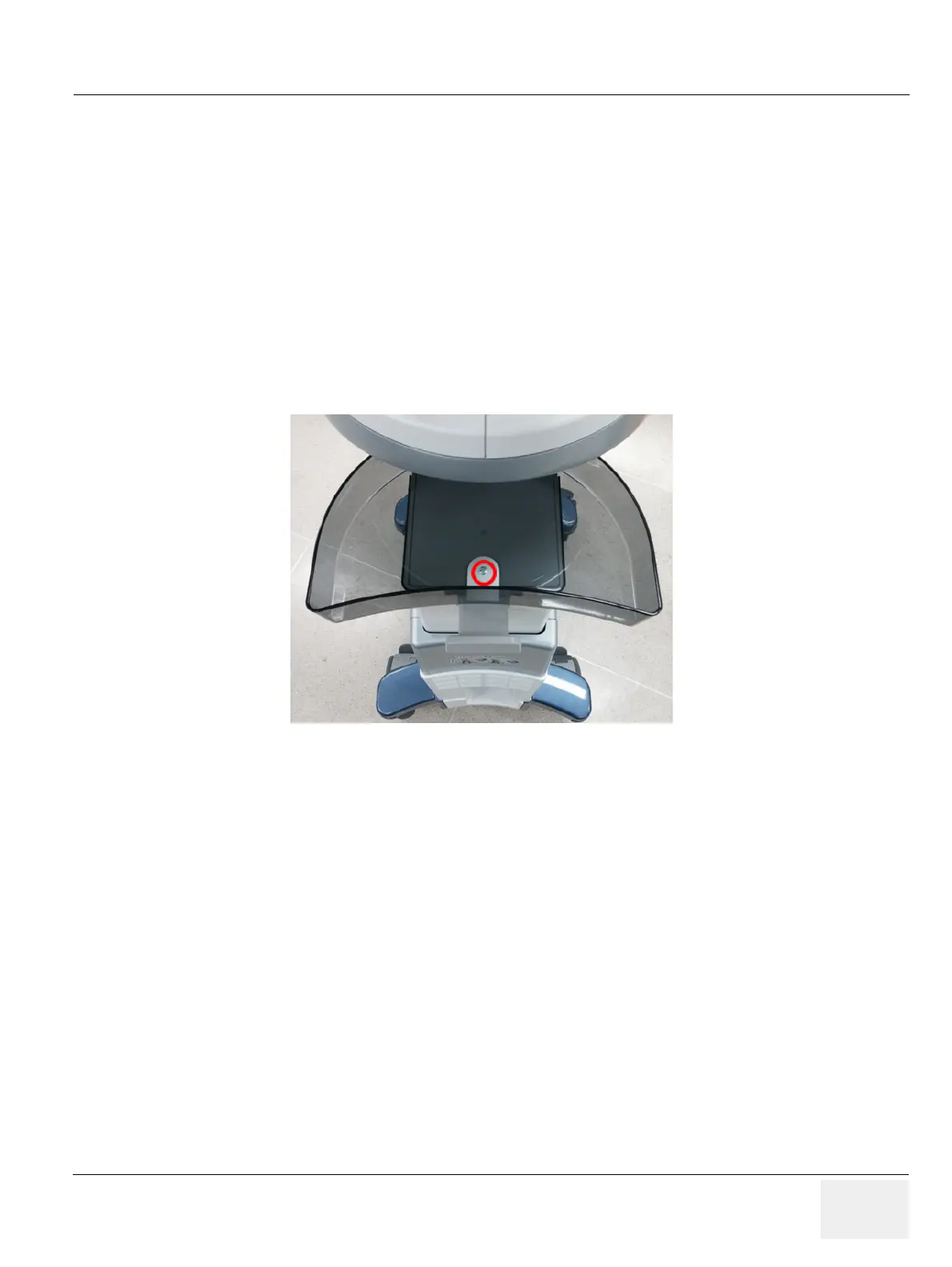

Figure 8-183 Removal of OPIO Tray

8-32-4 Installation Procedure

Parts to be installed in reverse order of removal.

8-32-5 Functional Check

Visual inspection Only.
