GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-168 Section 8-41 - Replacement of Drawer

Section 8-41

Replacement of Drawer

8-41-1 Manpower

1 Person, 5 minutes.

8-41-2 Tools

Standard Phillips screwdriver.

8-41-3 Removal Procedure

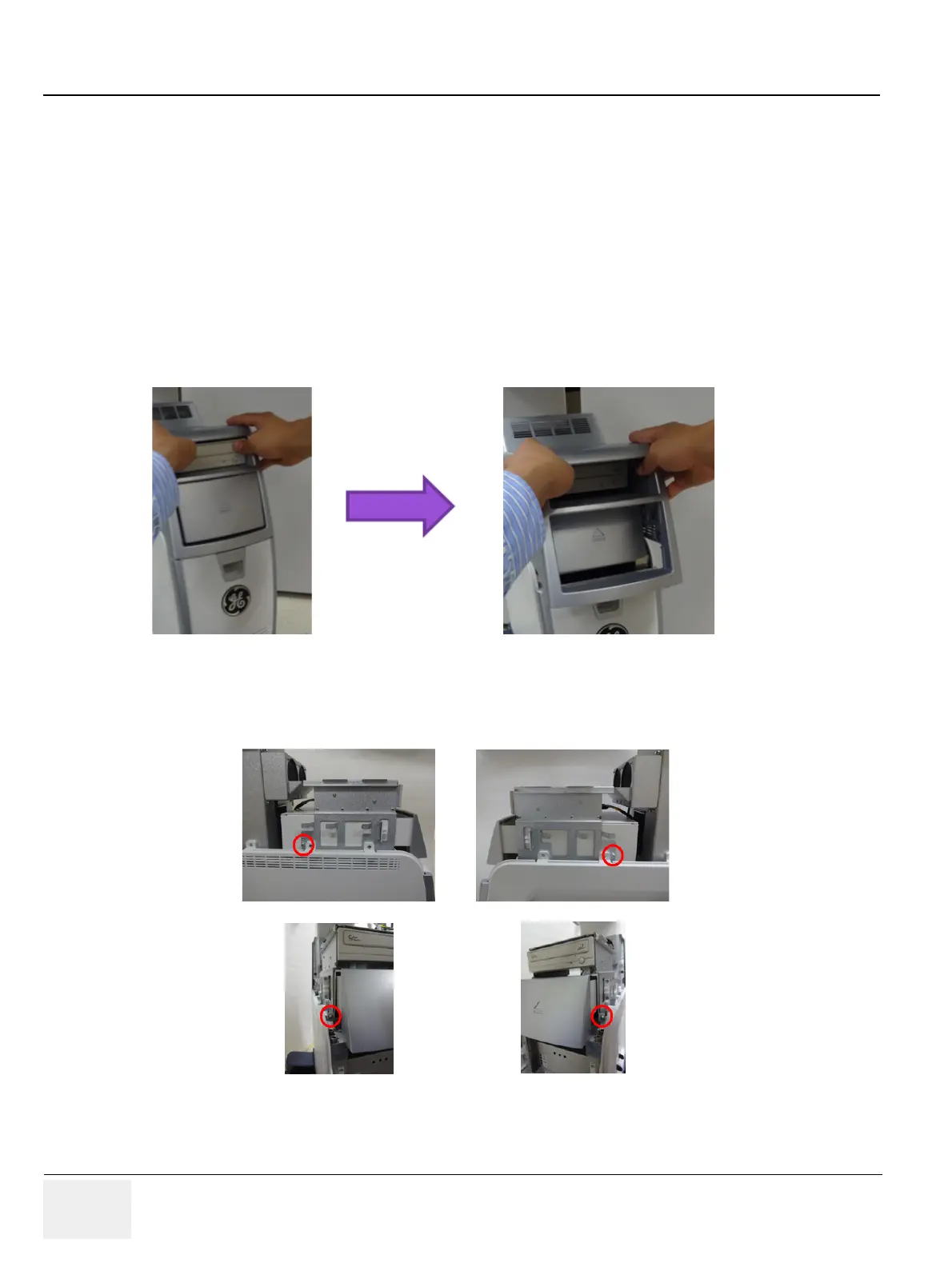

1) Pull out the Top cover.

Figure 8-198 Drawing out Top cover.

2) Remove 4 screws. Refer to following figure.

Figure 8-199 Screw point around drawer.

3) Carefully pull out the Drawer.

Rear left

Front right

Front left

Rear right
