8-44 Section 8-3 - System Software - Installation/Upgrade Procedure

8-3-7-5 Application Software Installation (R1.x.x or R2.x.x)

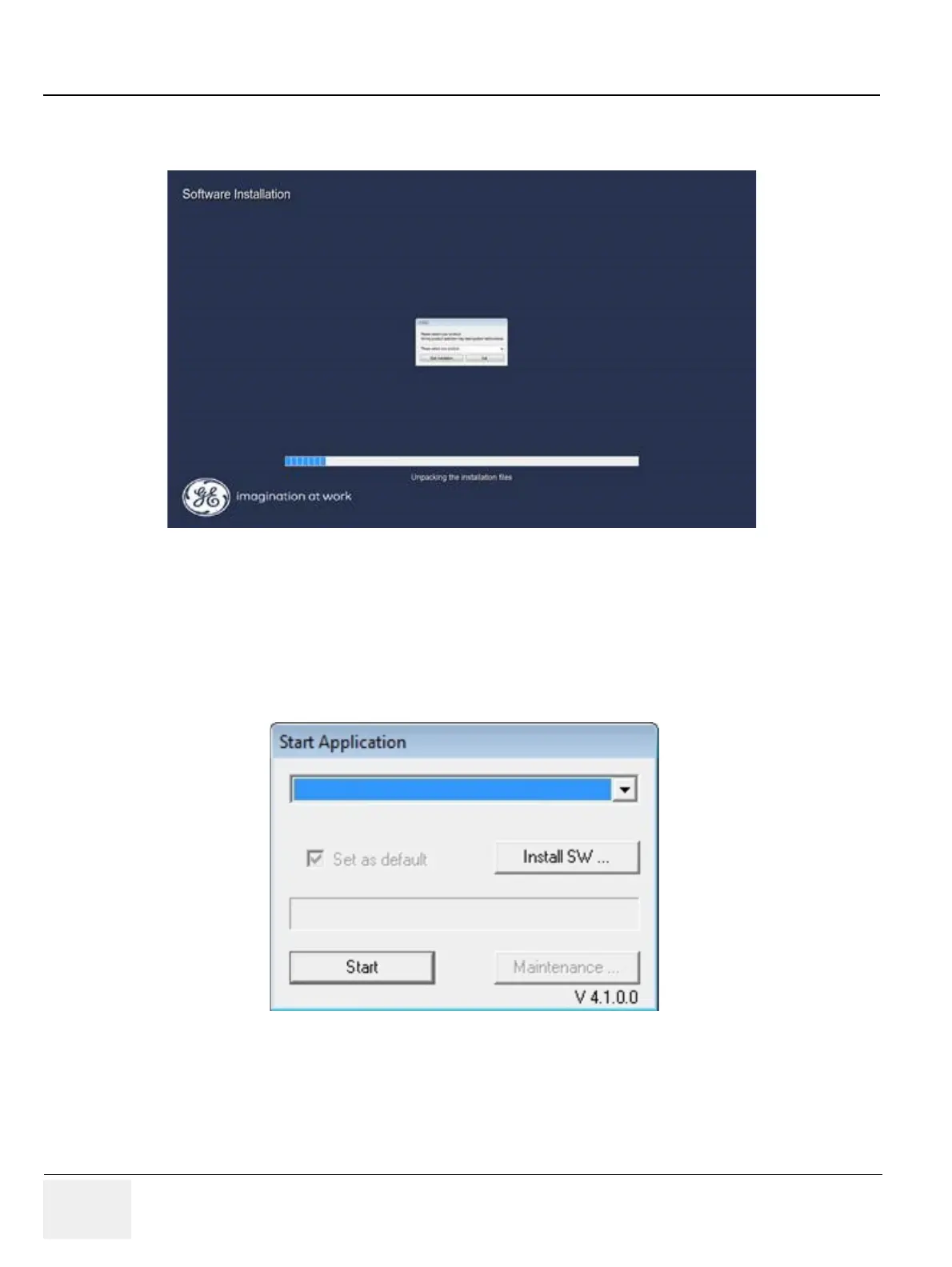

1) Application Software Installation process will take approximately 20 minutes

2) Select your product. Click “Start Installation” button.

3) After the installation completes, the system will be rebooted automatically.

NOTE: Do not remove Application Software DVD from drive. (R1.x.x or R2.x.x)

4) After rebooting the system, the “Start Application” window appears. Remove the DVD from the tray

(R1.x.x or R2.x.x), then click “Start” button.
