GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-149

8-29-2 B/W Printer Cables

8-29-2-1 Manpower

1 person, 5 minutes.

8-29-2-2 Tools

Standard Phillips Screwdriver.

8-29-2-3 Pre work

1) Remove Rear Cover. (refer to section 8-9)

2) Remove Top Cover (refer to section 8-7)

3) Remove Cable Cover Bracket. (refer to section 8-17)

8-29-2-4 Removal Procedure

1) Remove the cable tie.

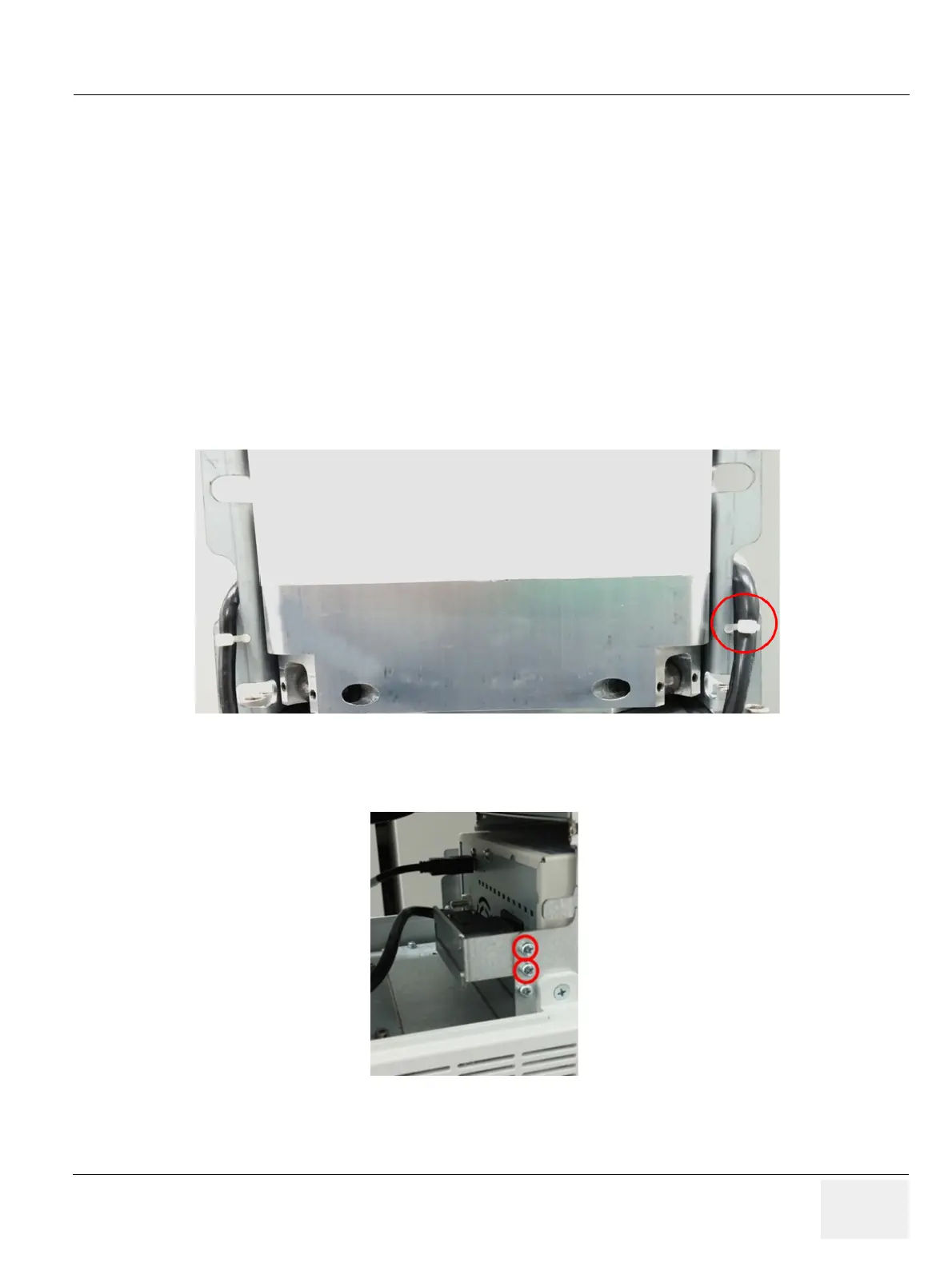

Figure 8-174 Cable tie point

2) Remove 2 screws on left side of BW printer and remove BW printer Power fix Bracket

Figure 8-175 Screw points to remove BW power fix bracket.
