8-98 Section 8-16 - Replacement of Key Caps (by special native language keys)
Section 8-16
Replacement of Key Caps (by special native language keys)
8-16-1 Manpower
1 person, 30 minutes.
8-16-2 Tools
• Regular Standard Phillips Screwdriver
• Screwdriver (Diameter : 3mm)
8-16-3 Preparations
1) Power Off/Shutdown the system.
8-16-4 Removal Procedure
1) Remove '1' Key, ‘Left Shift' Key, ‘F5’ Key, ‘6’ Key, ‘7’ Key, ‘H’ Key, ‘J’ Key, ‘N’ Key, ‘Back space’
Key, ‘Right Shift’ Key and ‘Pg Up’ Key by using fingertips. Refer to below Figure 8-75.

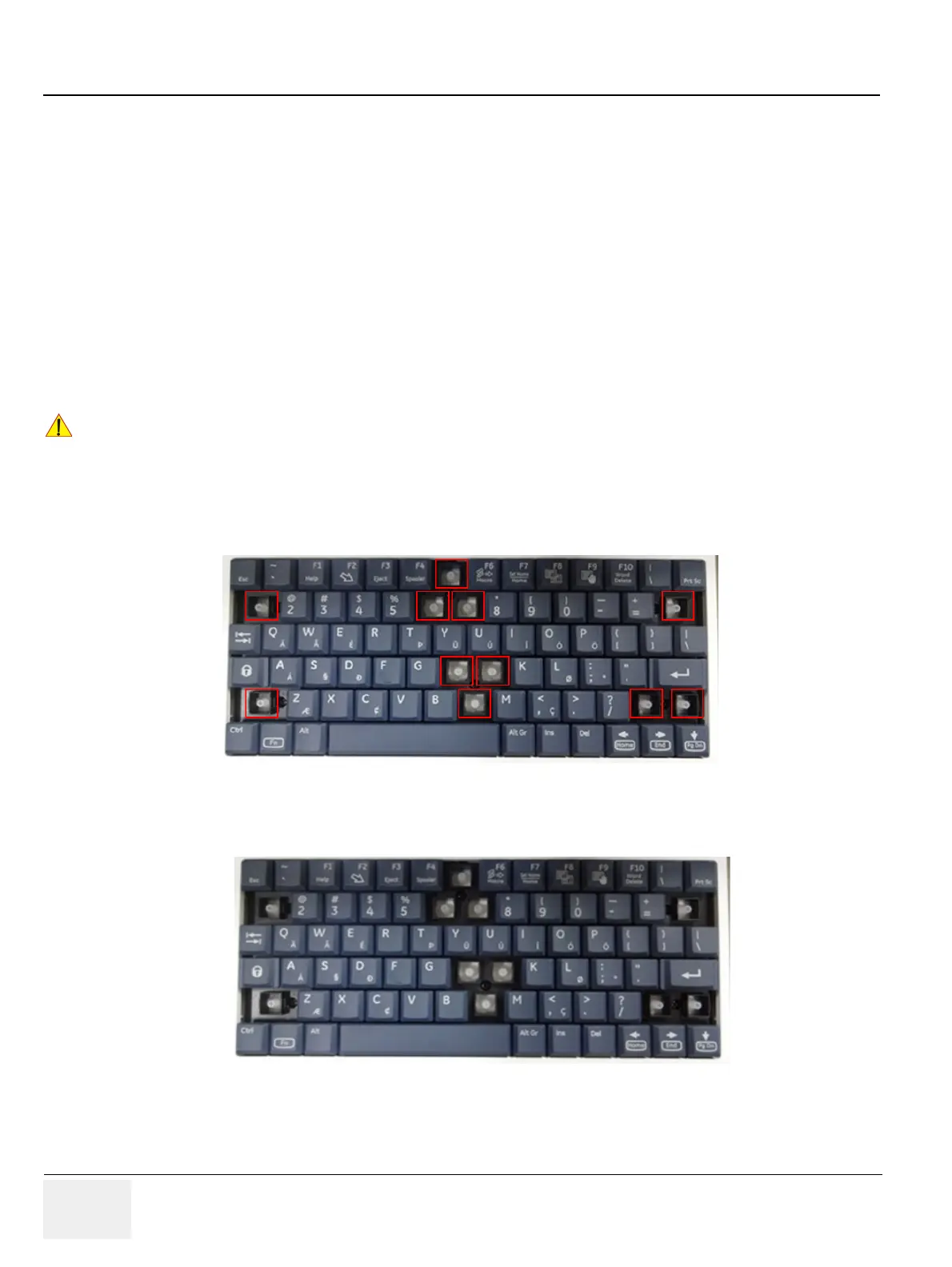

Figure 8-101 Remove key : ‘1’, ‘Left Shift’, ‘F5’, ‘6’, ‘7’, ‘H’, ‘J’, ‘N’, ‘Back space’, ‘Right Shift’, ‘Pg Up’
2) Remove the 6 screws using the plus(+) screwdriver. Refer to below Figure 8-76
Figure 8-102 Loosen the 6 screws
!! CAUTION:
Before you replace the boards, please make sure you wear the Ground strap, which prevents
ESD problems just in case.
