5-6 Section 5-2 - General Information

5-2-4 System Ports

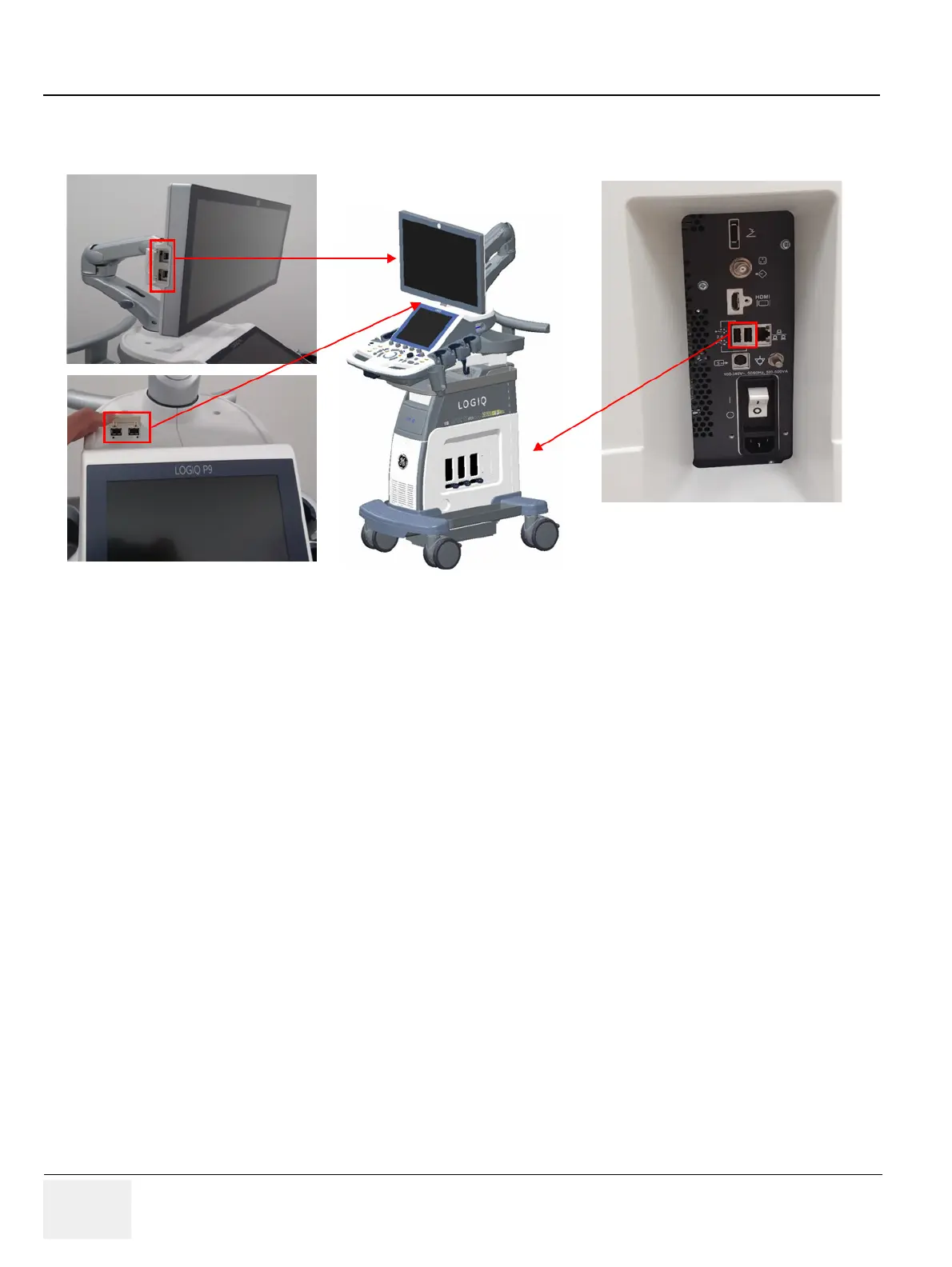

Figure 5-5 System Ports

System is equipped with 4 USB ports in front. These are customer use and Service port connected to

USB controller via USB Hub.

The Rear panel contains following ports.

• 3 USB ports for peripherals such as printers and footswitch

• HDMI for monitor output (without sound)

• S-Video & Composite for monitor output

• RJ45 for LAN connection

• AC Inlet for power

USB Ports Rear Panel
