GE
DRAFT
LOGIQ P9/P7
D
IRECTION
5604324
, R
EVISION
11
DRAFT
(J
ANUARY
24, 2019
)
S
ERVICE
M
ANUAL
Chapter 8 -
Replacement Pr
ocedures
8-177
5)

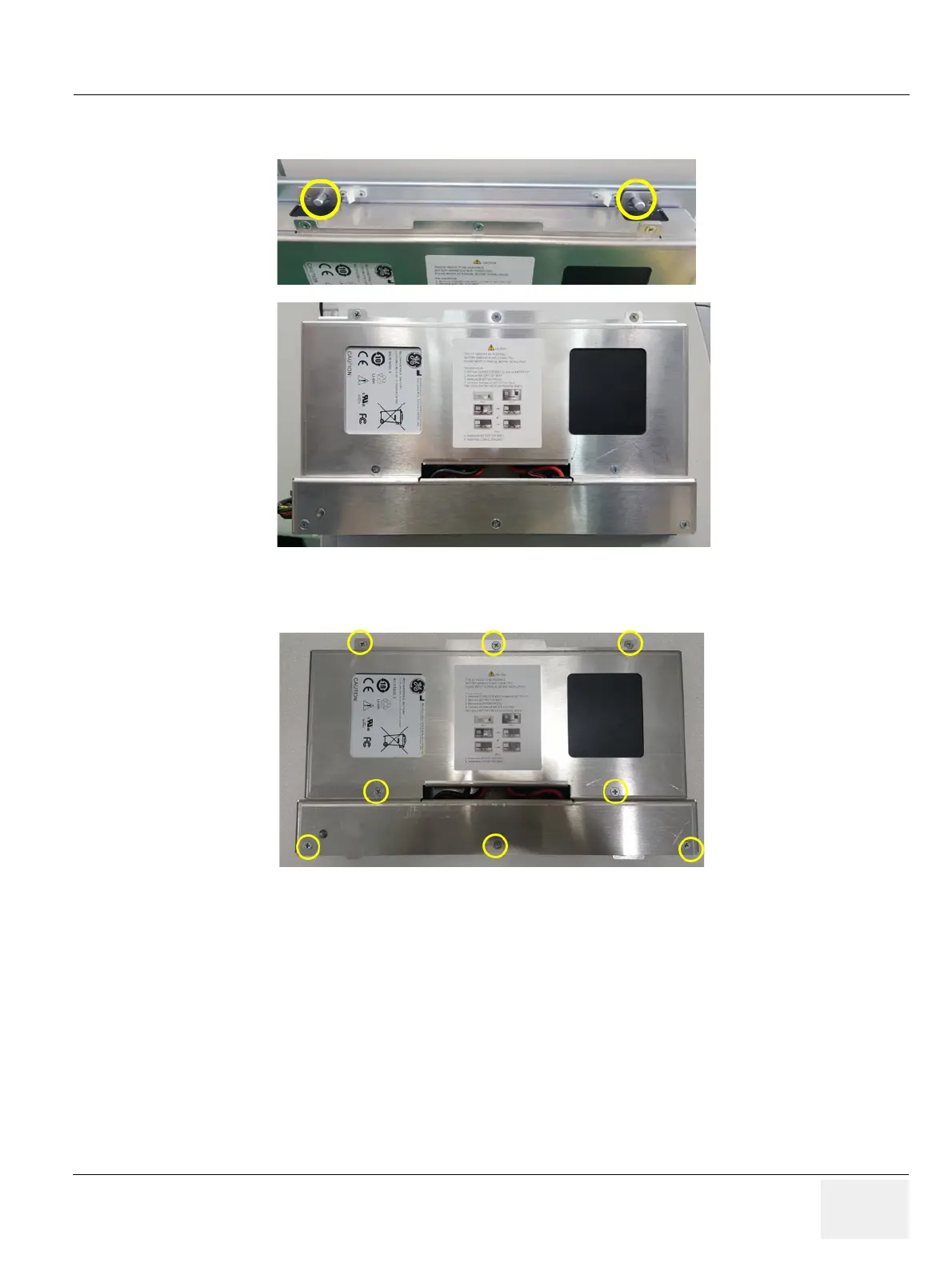

Disassemble LP7-P9 R2 EXT BATTERY PACK
from extrude shape of BATTERY PACK FRAME
BRKT.
6)
Unscrew 8 screws to remove
BATTERY PACK TOP BRKT.
Figure 8-210 Removing LP7-P9 R2 EXT BA
TTERY
P
ACK
Figure 8-21
1 Unscrewing 8 screws
to remove BA
TTER
Y P
ACK TOP BRKT
502
504
