FRONT WHEEL/SUSPENSION/STEERING

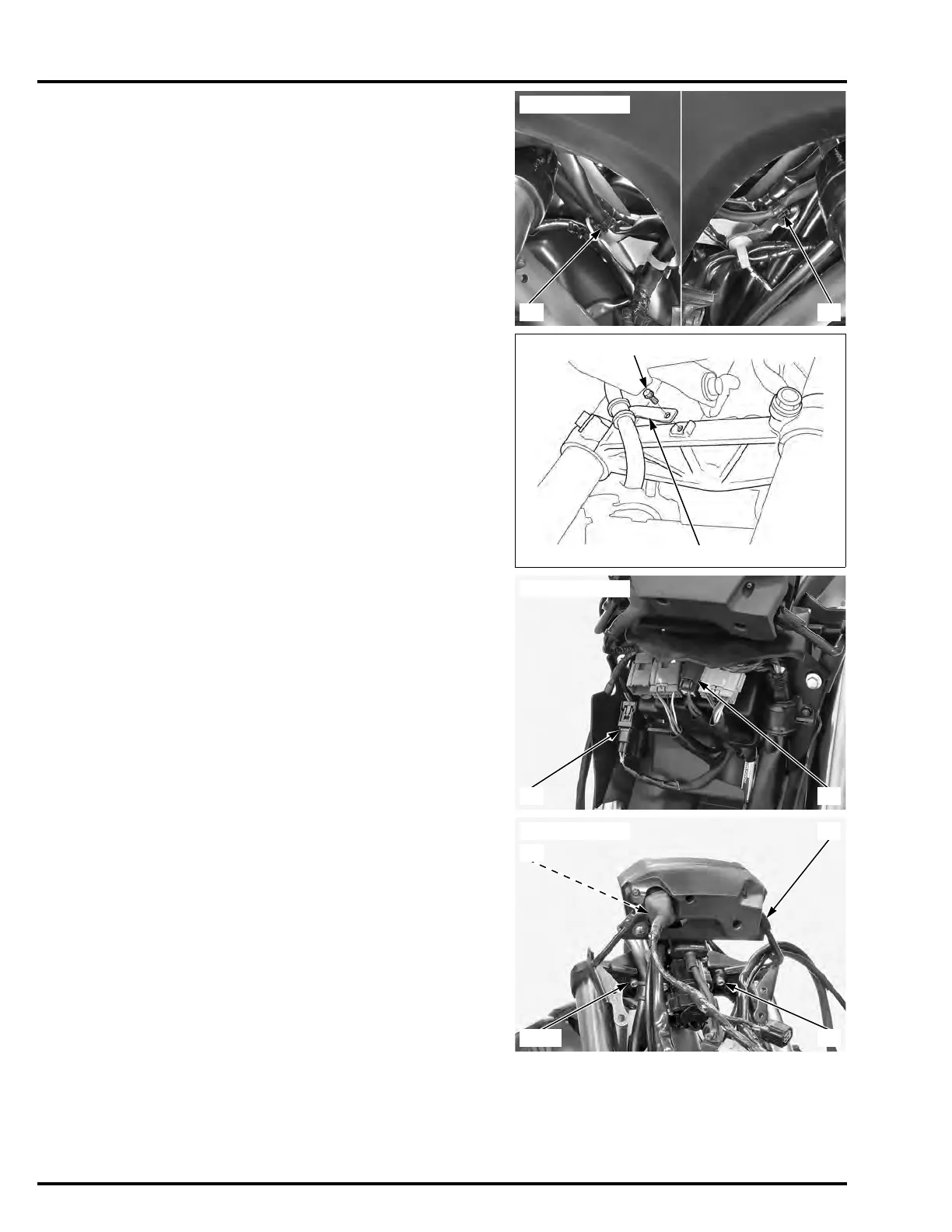

NC700X/XA/XD: Remove the ignition switch wire harness clamp [1] and
immobilizer receiver wire harness clamp [2].
NC700X: Remove the bolt [1] and brake hose clamp [2] from the
bottom bridge.
NC700S/SA/SD: Remove the following:
– Headlight/headlight stay (page 2-27)
– Handlebar
– NC700S/SA (page 17-10)
– NC700SD (page 17-12)
Disconnect the ignition switch 2P (Brown) connector [1]
and immobilizer receiver 4P (Black) connector [2].
NC700S/SA/SD: Remove the headlight cover (page 2-27).
Disconnect the combination meter 16P (Gray)
connector [1].
Remove the socket bolts [2], brake hose guide [3] and
combination meter/stay [4].
[2][1]
NC700X/XA/XD:
[2]
[1]NC700X:
NC700S/SA/SD:
[1][2]
NC700S/SA/SD:
[2][2]/[3]
[1]
[4]

Honda NC700 2012 Specifications

General

Engine Type	670cc liquid-cooled parallel-twin
Bore x Stroke	73.0mm x 80.0mm
Compression Ratio	10.7:1
Front Brake	Single 320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Fuel Capacity	3.7 gallons
Fuel System	PGM-FI
Transmission	6-speed
Front Suspension	41mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	60.6 inches
Curb Weight	472 pounds
