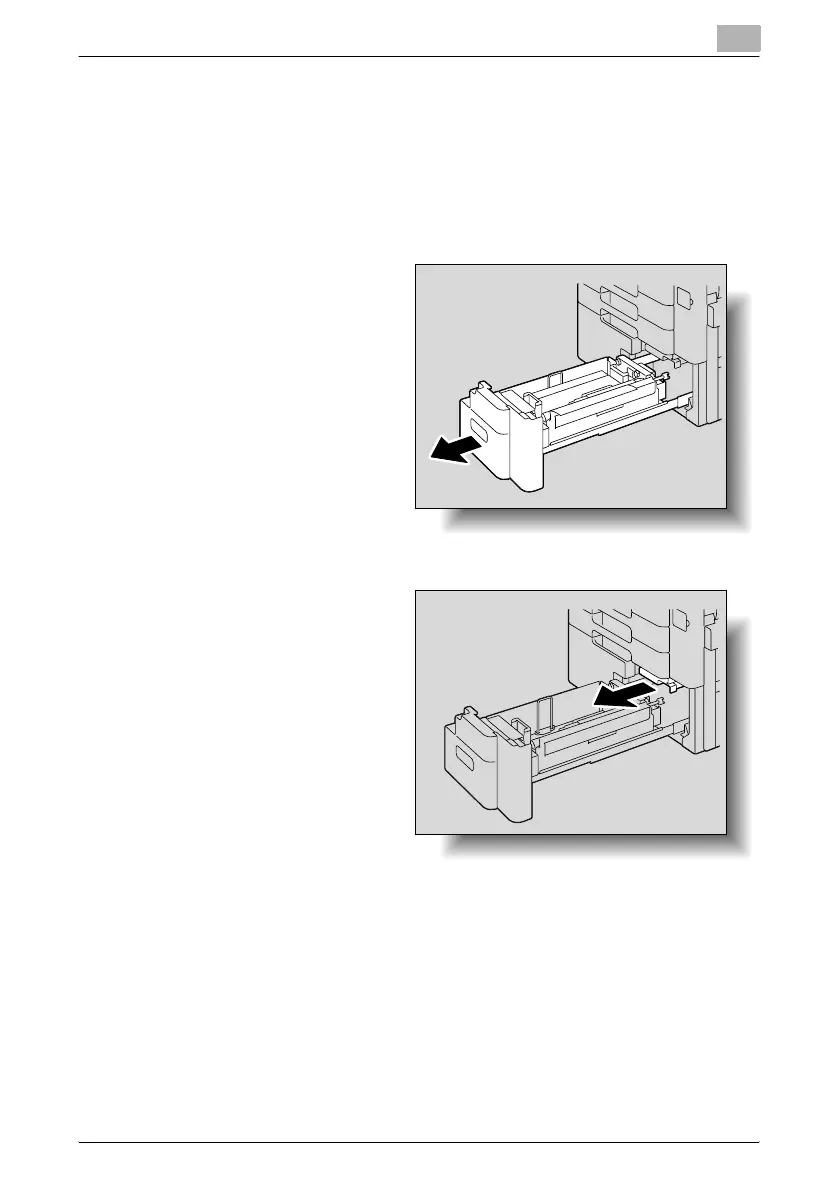

Troubleshooting
4
C451
4-52
Clearing a paper misfeed in the tr
ay 3/4 horizontal transport unit
!
Detail
For details on the positions of paper
misfeeds, refer to
“Paper misfeed in-
dications” on page
4-5.
1
Pull out tray 4.
2
Pull out the tray 3
/4 hori-
zontal transport unit.
321
323
