Application function
s
7
C451
7-21

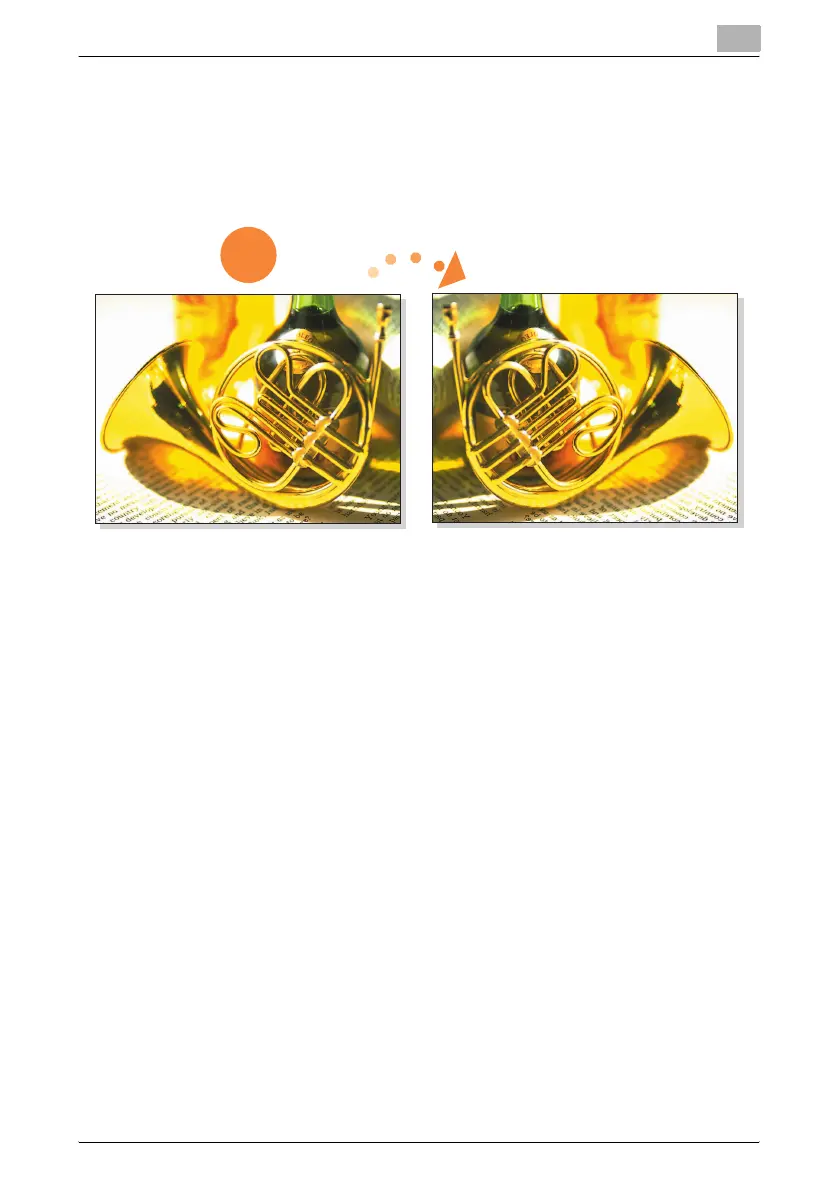

“Mirror Image” function
This function allows you to copy a mirror image of the original.
For details on the setting pro
cedure, refer to page
7-49.
Original
449
451
Table of Contents
Default Chapter
4
Default Chapter
4
Introduction
4
Kerberos
4
Mersenne Twister
5
Table of Contents
6
Available Features
18
Selecting the Print Color
18
Automatically Selecting the Paper
18
Adjusting Copies to the Size of the Paper
18
Specifying Separate Horizontal and Vertical Zoom Ratios
18
Scanning the Original in Separate Batches
18
Center Binding and Folding in Half and in Three
19
Sorting Copies
19
Stapling Copies
19
Punching Holes in Copies
20
Copying Multiple Original Pages Onto a Single Page
20
Adjusting Copies According to the Image Quality of the Original
20
Inserting Paper between Copies of OHP
21
Adding a Cover Page
21
Inserting Different Paper into Copies
21
Inserting Pages from a Different Original at Specified Locations in a Copy
22
Printing Double-Sided Copies with the Specified Page on the Front Side
22
Copying with Reversed Colors
22
Printing a Mirror Image
23
Copying with a Background Color
23
Improving the Copy Color Quality
23
Repeating Copy Images
24
Printing the Enlarged Image on Multiple Pages
24
Creating Booklets from Copies of Pamphlets
24
Making Copies for Filing
25
Adjusting the Image to Fit the Paper Size
25
Copying with the Page Layout of a Magazine
25
Erasing Sections of Copies
26
Printing a Sample Copy
26
Printing Date/Time or Page Number on Copies
26
Managing Jobs
26
Programming Copy Settings
26
Checking the Copy Settings
27
Enlarging the Size of Text in Touch Panel Screens
27
Displaying Explanations of Functions and Settings
27
Interrupting a Copy Job
27
Explanation of Manual Conventions
28
Descriptions of Original Documents and Paper
30
User's Guides
31
Printed Manuals
31
User's Guide CD Manuals
31
1 Before Making Copies
33
Part Names and Their Functions
34
Options
34
Outside of Machine
37
Inside of Machine
43
Finisher FS-517/Punch Kit PK-512
45
Finisher FS-608/Punch Kit PK-512
47
Finisher FS-519/Output Tray OT-602/Punch Kit PK-515
50
Output Tray Ot
51
Saddle Stitcher SD-505/Mailbin Kit MT-502
52
Job Separator JS-504
54
Large Capacity Unit LU-301
55
Control Panel
57
Basic Settings Screens
60
Icons that Appear in the Screen
63
Adjusting the Angle of the Control Panel
64
To Adjust the Angle of the Control Panel
64
Turning on the Main Power and the Sub Power
68
Turning on the Machine
68
Scanning During Warm-Up
70
Turning off the Machine
71
Automatically Clearing Settings (Automatic Panel Reset)
73
Automatically Canceling the Mode Screen (System Auto Reset)
73
Automatically Conserving Energy (Low Power Mode)
73
Automatically Conserving Energy (Sleep Mode)
75
Manually Conserving Energy
75
Automatically Turning the Machine On/Off (Weekly Timer)
76
Controlling each User's Use of this Machine (User Authentication)
79
Controlling each Account's Use of this Machine (Account Track)
83
Controlling Use of this Machine with Authentication Unit (Biometric Type)
86
When "1-To-Many Authentication" Has Been Specified
88
When "1-To-1 Authentication" Has Been Specified
89
Controlling Use of this Machine with the Authentication Unit (IC Card Type)
90
When "Card Authentication" Has Been Specified
90
When "Card Authentication + Password" Has Been Specified
92
Loading Paper into Tray 1 and Tray 2
93
Loading Paper into Tray 3
97
Loading Paper into Tray 4
100
Loading Paper into the LCT
103
Loading Paper into the Bypass Tray
105
2 Basic Copy Operations
113
General Copy Operation
114
Operations that Cannot be Combined
117
Operations Where the Setting Specified Last Is Given Priority
117
Operations Where the Setting Specified First Is Given Priority
119
Feeding the Document
120
Loading the Document into the ADF
120
Placing the Document on the Original Glass
123
Scanning the Document in Separate Batches ("Separate Scan" Setting)
125
Scanning a Multi-Page Document from the Original Glass
129
Specifying Document Settings
135
Specifying the Document Size (Original Size Settings)
135
Copying Documents of Mixed Sizes ("Mixed Original" Setting)
137
Loading Folded (Z-Folded) Documents
139
Selecting the Document Orientation (Original Direction Settings)
141
To Select an Original Direction Setting
143
Selecting the Position of the Binding Margin (Binding Position Settings)
144
To Select a Binding Position Setting
146
Reducing the Effects of Dust on the Left Partition Glass
147
Changing Scan Settings for each Document
148
Selecting a Color Setting
153
To Select a Color Setting
154
Selecting a Paper Setting
156
Automatically Selecting the Paper Size ("Auto" Paper Setting)
157
Manually Selecting the Desired Paper Size
158
Specifying a Zoom Setting
159
Automatically Selecting the Zoom Ratio ("Auto" Zoom Setting)
159
Specifying the Zoom Ratio of the Document ("Full Size" Setting)
160
Typing in the Zoom Ratio (XY Zoom Setting)
161
Slightly Reducing the Copy ("Minimal" Setting)
163
Selecting a Preset Zoom Ratio (Enlarge and Reduce Settings)
164
Typing in Separate X and y Zoom Ratios (Individual Zoom Settings)
165
Selecting a Stored Zoom Ratio
167
Storing the Desired Zoom Ratio
168
Selecting an Original > Copy Setting
171
Selecting Single-Sided Copies
172
Selecting Double-Sided Copies
174
Selecting a Combined Copy Setting
177
Copying Multiple Document Pages Onto a Single Page (Combined Copy Settings)
179
Selecting the Quality of the Document
181
Loading Documents with Small Print or Photos (Original Type Settings)
181
To Select an Original Type Setting
182
Selecting the Density Settings
185
Adjusting the Print Density (Density Settings)
185
Adjusting the Background Density (Background Removal Settings)
187
Adjusting the Reproduction Quality of Text
188
Printing with a Glossy Finish ("Glossy" Setting)
190
Selecting Finishing Settings
191
Separating Copies by Sets ("Sort" Setting)
196
Separating Copies by Pages ("Group" Setting)
197
Selecting the Output Tray
198
Stapling Copies (Staple Settings)
200
Punching Holes in Copies (Punch Settings)
205
Selecting a Folding Setting
208
Folding Copies in Half ("Half-Fold" Setting)
209
Binding Copies at the Center ("Center Staple & Fold" Setting)
212
To Fold Copies in Three ("Tri-Fold" Setting)
216
Selecting Not to Rotate the Image
218
Scanning the Next Document to be Copied While a Copy Job Is Being Printed (Next Job Reservation)
219
Temporarily Stopping Scanning/Printing
221
Deleting a Paused Job
222
3 Additional Copy Operations
223
Checking the Copy Settings (Check Job)
224
To Check the Settings
224
To Change the Settings
227
Printing a Proof to Check the Settings (Proof Copy)
228
Checking the Print Image as a Preview Image (Advanced Preview)
232
Preview Screen
232
Zoom
233
Page Rotation
234
View Finishing
235
Change Setting
235
Checking the Advanced Preview
236
Interrupting a Copy Job (Interrupt Mode)
239
Registering Copy Programs (Mode Memory)
241
Deleting a Copy Program
244
Copying with Programmed Copy Settings (Mode Memory)
246
Displaying Function Descriptions (Help)
249
Overview of Help Screens
249
Displaying Main Help Screens
253
Specifying Control Panel Settings (Accessibility Mode)
255
Displaying the Accessibility Setting Screen
255
Setting the "Touch Panel Adjustment" Function
255
Setting the Key Repeat Start/Interval Time Functions
257
Setting the "System Auto Reset Confirmation" Function
259
Setting the "Auto Reset Confirmation" Function
262
Setting the "Enlarge Display Mode Confirmation" Function
264
Setting the "Message Display Time" Function
266
Setting the "Sound Setting" Functions
268
4 Troubleshooting
271
When an Error Code Appears
272
When the Message "Misfeed Detected." Appears
274
Location of Paper Misfeed
274
Paper Misfeed Indications
275
Clearing a Paper Misfeed in the ADF (Feed Section)
277
Clearing a Paper Misfeed in the ADF (Transport Section)
282
Clearing a Paper Misfeed in the ADF (Scanning Section)
287
Clearing a Paper Misfeed in the ADF (Output Section)
292
Clearing a Paper Misfeed in the ADF (Turnover Section)
295
Clearing a Paper Misfeed in the Fusing Unit
298
Clearing a Paper Misfeed in the Main Unit
303
Clearing a Paper Misfeed in the Automatic Duplex Unit
308
Clearing a Paper Misfeed in the Bypass Tray
310
Clearing a Paper Misfeed in the Paper Transport Section
312
Clearing a Paper Misfeed in Tray 1
315
Clearing a Paper Misfeed in Tray 2
316
Clearing a Paper Misfeed in Tray 3
318
Clearing a Paper Misfeed in Tray 4
320
Clearing a Paper Misfeed in the Tray 3/4 Horizontal Transport Unit
322
Clearing a Paper Misfeed in the LCT
324
Clearing a Banner Paper Misfeed
327
Clearing a Paper Misfeed in Finisher FS-517
333
Clearing a Paper Misfeed in Finisher FS-608
340
Clearing a Paper Misfeed in Finisher FS-519
349
Clearing a Paper Misfeed in the Mailbin
354
Clearing a Paper Misfeed in the Saddle Stitcher
357
Clearing a Paper Misfeed in the Separator
359
When the Message "Unable to Staple." Appears
361
Clearing Jammed Staples in Finisher FS-608
366
Clearing Jammed Staples in Finisher FS-519
371
Clearing Jammed Staples in the Saddle Stitcher
373
When the Message "Replenish Paper." Appears
376
When the Message
377
Appears
377
When the Message "Please Replace Following Unit(S)." Appears
378
When the Message "XXXX Needs to be Replaced." Appears
380
When the Message "Now Remote Operating. Please Do Not Turn off the Power." Appears
381
Simple Troubleshooting
382
Main Messages and Their Remedies
386
5 Specifications
389
Specifications
389
Main Unit
390
Automatic Duplex Unit
392
Automatic Document Feeder
393
Large Capacity Unit LU-301
394
Finisher FS-517
394
Finisher FS-608
395
Punch Kit PK-512
397
Finisher FS-519
397
Punch Kit PK-515
398
Saddle Stitcher SD-505
398
Output Tray OT-602
399
Mailbin Kit MT-502
399
Job Separator JS-504
399
6 Copy Paper/Original Documents
401
Copy Paper
402
Possible Paper Sizes
402
Paper Types and Paper Capacities
404
Special Paper
405
Precautions for Paper
407
Paper Storage
407
Auto Tray Switch Feature
408
Order for Selecting Paper Trays
408
Selecting the Paper Settings
409
Automatically Detecting the Paper Size ("Auto Detect" Setting)
409
Selecting a Paper Size Setting (Size Setting)
411
Specifying a Non-Standard Paper Size (Custom Size Settings)
413
Storing a Non-Standard Paper Size (Custom Size Settings)
415
Selecting a Setting for Oversized Paper (Wide Paper Settings)
418
Specifying a Setting for Special Paper
421
Printing Double-Sided Copies Manually
423
Original Documents
426
Documents that Can be Loaded into the ADF
426
Precautions for Loading Documents into the ADF
428
Documents that Can be Placed on the Original Glass
428
Precautions for Positioning Documents on the Original Glass
429
7 Application Functions
430
Color Adjust Parameters and Samples
431
General Information about Color
433
Red" Parameter
435
Green" Parameter
436
Blue" Parameter
437
Color Balance" Parameter (CMYK Color Adjustment)
438
Brightness" Parameter
440
Contrast" Parameter
441
Saturation" Parameter
442
Sharpness" Parameter
443
Hue" Parameter
444
Copy Density" Parameter
445
Single Color" Function
446
Color" Function
447
Background Color" Function
448
Neg-/Pos. Reverse" Function
449
Mirror Image" Function
450
Inserting Paper between OHP Transparencies ("OHP Interleave" Function)
451
Adding Cover Pages ("Cover Sheet" Function)
454
Inserting Different Paper into Copies ("Insert Sheet" Function)
457
Inserting Copies of a Different Document for a Specified Page ("Insert Image" Function)
462
Specifying Pages to be Printed on the Front Side ("Chapters" Function)
466
Scanning Documents with Different Settings and Printing Copies All Together ("Program Jobs" Function)
470
Copying with Image Colors Inversed ("Neg./Pos. Reverse" Function)
476
Copying in a Mirror Image ("Mirror Image" Function)
478
Adding a Background Color to Copies ("Background Color" Function)
482
Adjusting the Copy Color Quality (Color Adjust Parameters)
485
To Adjust the Color Adjust Parameters
486
Checking the Print Result of the Color Adjust Settings (Sample Copy)
488
Producing Separate Copies of each Page in a
490
("Book Copy" Function)
490
Tiling Copy Images ("Image Repeat" Function)
496
Copying an Enlarged Image on Multiple Pages ("Poster Mode" Function)
502
Copying Booklets ("Booklet Original" Function)
507
Adding a Binding Margin to Copies ("Page Margin" Function)
511
Adjusting the Image to Fit the Paper (Image Adjust Settings)
515
Copying with the Page Layout of a Booklet ("Booklet" Function)
519
Erasing Specified Areas of Copies ("Frame Erase" Function)
521
Printing the Date/Time or Page Number on Copies (Stamp/Composition Functions)
523
Printing the Date/Time ("Date/Time" Function)
524
Printing the Page Number ("Page Number" Function)
528
Printing Previously Registered Stamps ("Stamp" Function)
533
Printing Copy Protection Text ("Copy Protect" Function)
537
Printing Repeating Stamps ("Stamp Repeat" Function)
546
Printing the Image Scanned First Overlapped by the Remaining Document Pages ("Overlay" Function)
554
Saving a Scanned Image as a Registered Overlay ("Overlay" Function)
558
Using a Registered Overlay ("Overlay" Function)
561
Printing a Header/Footer ("Header/Footer" Function)
562
Saving the Scanned Document in a User Box ("Save in User Box" Function)
564
8 Replacing Toner Cartridges and Staple Cartridges and Emptying Punch Scrap Box
568
Replacing the Toner Cartridge
569
To Replace the Toner Cartridge
573
Replacing the Waste Toner Box
577
To Replace the Waste Toner Box
579
Replacing an Imaging Unit
583
To Replace the Imaging Unit (Black)
585
To Replace the Imaging Unit (Yellow, Magenta and Cyan)
594
Replacing the Staple Cartridge
603
To Replace the Staple Cartridge in Finisher FS-517
604
To Replace the Staple Cartridge in Finisher FS-608
609
To Replace the Staple Cartridge in Finisher FS-519
614
To Replace the Staple Cartridge in Saddle Stitcher
617
Emptying the Punch Scrap Box
621
To Empty the Punch Scrap Box in Finisher FS-517/FS-608
624
To Empty the Punch Scrap Box in Finisher FS-519
626
9 Care of the Machine
628
Cleaning
629
Housing
629
Original Glass
630
Left Partition Glass
630
Control Panel
631
Document Pad
631
Paper Take-Up Rollers
632
Electrostatic Charger Wire
633
Print Head
633
Viewing Counters (Meter Count)
635
Viewing Counters
635
Viewing the Coverage Rate
636
When the Message "It Is Time for the Scheduled Inspection of the Device." Appears
638
10 Managing Jobs
639
Jobs
640
Multi-Job Feature
640
Job List Screens
640
Overview of Job List Screen
640
Left Panel Job List
645
Performing Operations on Jobs
647
Deleting a Job
647
Checking Job Settings
648
Checking Job Details
649
Displaying the Current Jobs List (Stored Jobs and Active Jobs)
651
Displaying the Job History List
652
Printing a Proof Copy of a Stored Job
653
Printing a Stored Job
655
Increasing Printing Priority
656
11 Utility Mode
658
Overview of Utility Mode Parameters
659
List of Registration Information and Parameters
659
Create One-Touch Destination
659
Create User Box
666
Limiting Access to Destinations
667
Access Level
667
Level Settings
667
Group
668
Specifying a Group Setting
668
Specifying a Destination Level
670
Specifying a User Level
672
Displaying the Destination Registration Screen
675
Specifying User Settings
677
System Settings
677
Custom Display Settings
681
Fax Active Screen
682
Color Selection Settings
682
Search Option Settings
682
Copier Settings
683
Scan/Fax Settings
686
Printer Settings
686
Change Password
687
Change E-Mail Address
687
Change Icon
687
Displaying the User Settings Screen
687
Specifying Administrator Settings
689
System Settings
689
User Box Settings
698
Stamp Settings
698
Blank Page Print Settings
698
Application Key Settings
698
Administrator/Machine Settings
699
One-Touch/User Box Registration
699
User Authentication/Account Track
700
User Authentication Settings
701
Network Settings
705
Copier Setting
706
Printer Settings
707
Fax Settings
707
System Connection
707
Security Settings
708
Security Details
709
Enhanced Security Mode
711
Hdd Settings
711
Function Management Settings
711
License Settings
712
Displaying the Administrator Settings Screen
713
Check Consumable Life
716
Displaying the Check Consumable Life Screen
716
Overview of Weekly Timer Settings
718
Printer Adjustment
719
Leading Edge Adjustment
719
Centering
721
Leading Edge Adjustment (Duplex Side 2)
723
Centering (Duplex 2Nd Side)
725
Adjusting Printing According to the Media
727
Finisher Adjustment
729
2-Position Staple Pitch Adjustment
729
Center Staple Position
730
Half-Fold Position
734
Tri-Fold Position Adjustment
737
Punch Vertical Position Adjustment
739
Punch Horizontal Position Adjustment
741
Punch Regist Loop Size Adjustment
745
Punch Edge Sensor Adjustment
747
Color Registration Adjust
749
Adjusting the Color Registration for Yellow, Magenta and Cyan
749
11.10 Gradation Adjustment
753
11.11 Header/Footer Settings
756
Specifying Headers/Footers
756
Editing Headers/Footers
759
11.12 Authentication Method
760
User Authentication and Account Track
760
When User Authentication and Account Track Are Synchronized
761
When User Authentication and Account Track Are Used Separately
762
Selecting an Authentication Method
763
11.13 User Authentication Setting
768
Administrative Settings-List
768
Default Function Permission
769
Public User Access
770
User Registration
771
User Counter
776
Viewing User Counters
778
11.14 Account Track Setting
780
Account Track Registration
780
Account Track Counter
784
Viewing Account Counters
785
11.15 Password Rules
787
11.16 Enhanced Security Mode
789
Appendix
792
Entering Text
793
Enlarging the Keyboard
795
To Type Text
796
List of Available Characters
796
Glossary
797
13 Index
802
Index
802
Other manuals for Konica Minolta bizhub C451
Service Manual
1503 pages
Copy Operations
610 pages
Technical Bulletin
21 pages
User Manual
620 pages
Network Scanner Operations
302 pages
Operation Manual
304 pages
Installation Manual
40 pages
Operation Guide
68 pages
Quick Guide
10 pages
Security Guide
28 pages
Faq And Quick Guide
12 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Konica Minolta bizhub C451 and is the answer not in the manual?
Ask a question
Konica Minolta bizhub C451 Specifications
General
Brand
Konica Minolta
Model
bizhub C451
Category
All in One Printer
Language
English
Related product manuals
Konica Minolta bizhub C450
608 pages
Konica Minolta bizhub C454
272 pages
Konica Minolta BIZHUB C452
343 pages
Konica Minolta bizhub C458
286 pages
Konica Minolta bizhub C450i
110 pages
Konica Minolta bizhub C454e
178 pages
Konica Minolta bizhub C4050i
227 pages
Konica Minolta bizhub C25
339 pages
Konica Minolta bizhub C308
286 pages
Konica Minolta bizhub C364
272 pages
Konica Minolta BIZHUB C250
658 pages
Konica Minolta bizhub C224
272 pages
Need help?
General
To Next Page
