Troubleshooting
4
C451
4-89

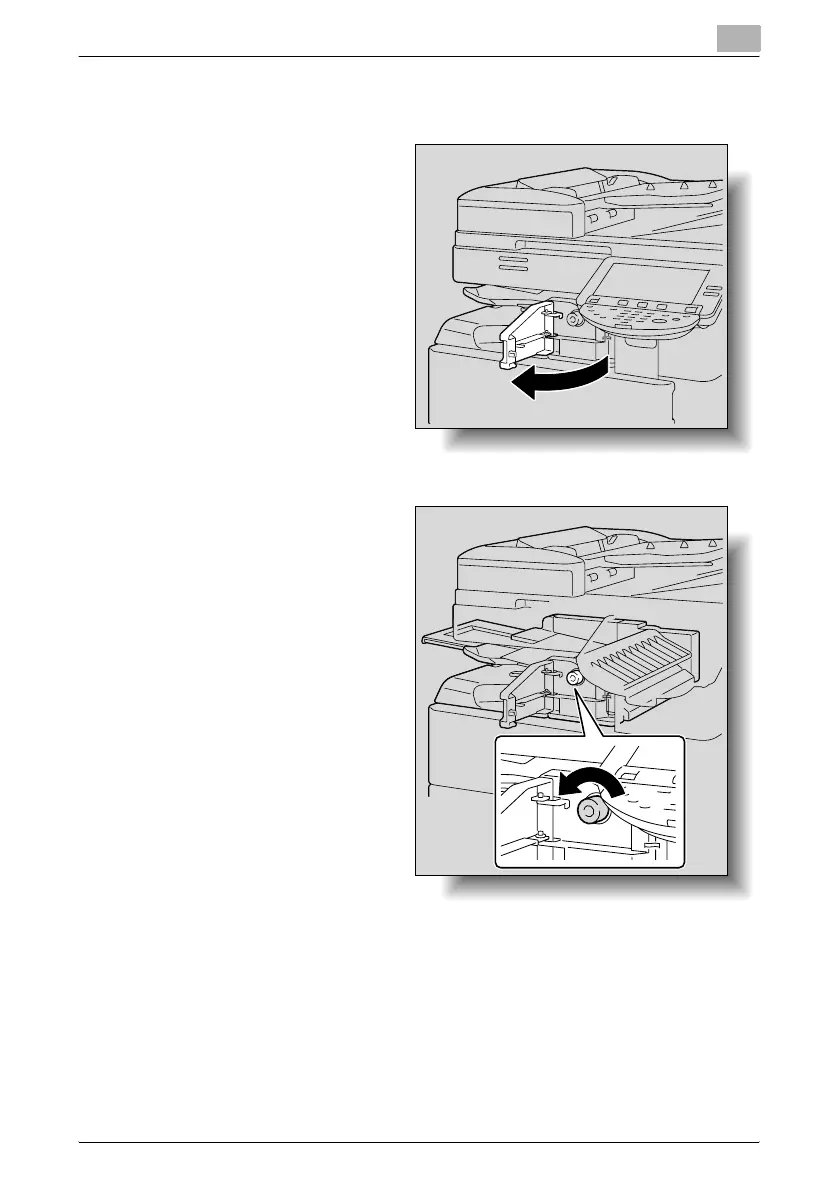

Clearing a paper misfeed in the separator
1
Open the misfeed-clear-
ing door.
2
Turn the misfeed-clear-
ing dial to feed out the
paper.
358
360
