Reading DPM 2D Codes
128
FQ2-S4 User’s Manual
4-7 Reading DPM 2D Codes
2D Codes (DPM)
You can read DPM (direct part marking) 2D codes.
You can also verify whether the character string that was read from the 2D code matches a registered
character string.
You can output the result of reading a 2D code and the verification result to an external device.
The scan result and verification result can be externally output.
Codes that can be scanned are Data Matrix (ECC200) and QR Codes.

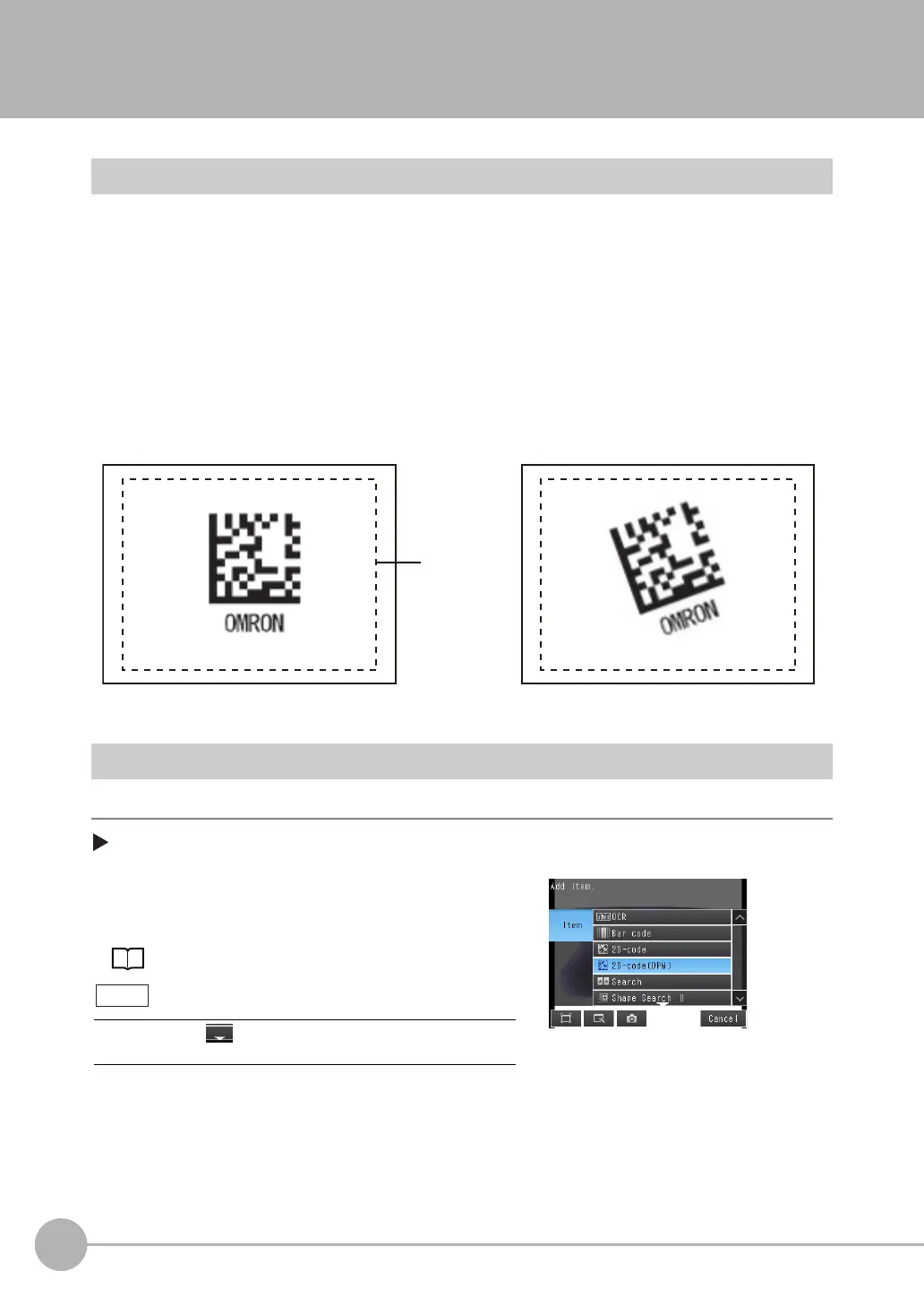

Setup Procedure for 2D-code (DPM)
Step 1 Select the Inspection Item
[Inspect] - [Modify]
Inspection image
When the inspection region is set, the code
image is displayed, and teaching is executed, the
code type and detailed parameters are
automatically set.
Inspection image
One 2D code is scanned in one inspection
region. If there are multiple 2D codes in the
inspection region, the first scanned result is
output.
1 Press an unused inspection item number and press
[Add item.].
2 Press [2D-code (DPM)].
4-3 Configuring Inspection Items: p. 94
Inspection
region
Drag the arrow ( ) at the bottom of the menu to display all of
the inspection items.
Note
To Next Page
