Changing the Scene to Change the Line Process
234
FQ2-S4 User’s Manual
7-1 Changing the Scene to Change the Line Process
What Are Scenes?
With an FQ2 Vision Sensor, the inspection items that can be processed at the same time are registered as
scenes. A command input from an external device or a touch panel operation can be used to select a certain
scene.
If a scene is registered for each type of measurement object or inspection, the line process can be changed
simply by changing the scene when the measurement object or inspection changes.

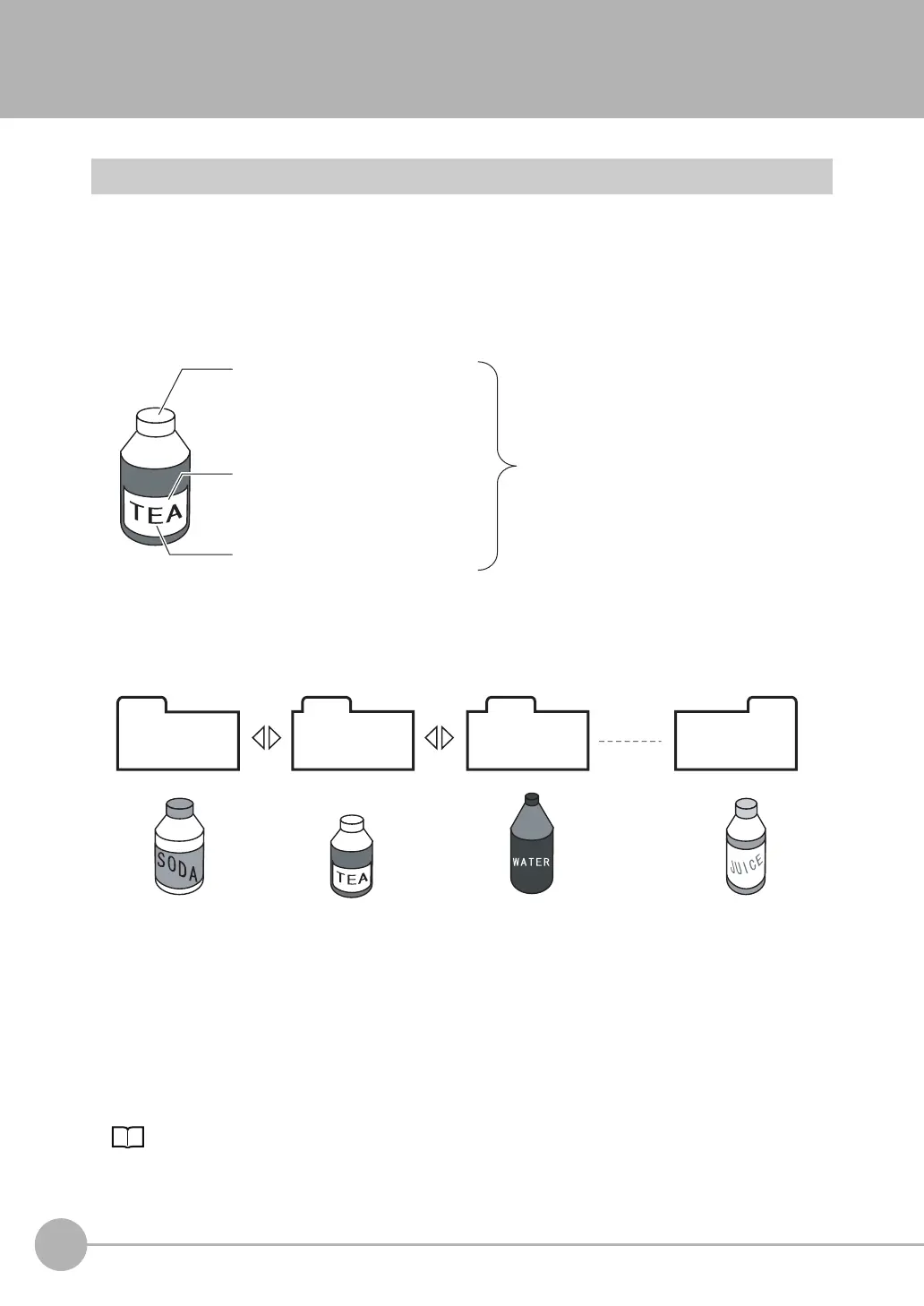

Example:
• Maximum Number of Scenes
With the FQ2-S4-series Vision Sensors, you can create up to 32 scenes.
• Settings Included with Scenes
The following settings are changed when the scene is changed: Camera image ([Image] Tab Page) and
Inspection Items ([Inspect] Tab Page). The settings related to external I/O specifications that are included in
the output settings and the system settings for the overall Sensor are used for all of the scenes.
Refer to the following information for the data that is included in the scene data.
12-1 Menu Tables: p. 458
Inspection for
product A
Inspection for
product B
Inspection for
product C
Inspection for
product Z
Scene 1
Scene 2
Scene 0
Scene 31
Line Process Changes:
Text alignment
(Inspection item 2: Edge Position)
Label detection
(Inspection item 1: Search)
These can be registered as
one scene.
Cap color
(Inspection item 0: Color Data)
To Next Page
