Outputting Data and Controlling Operation through EtherNet/IP
FQ2-S4 User’s Manual
341
Connecting through Ethernet
9
Setting the Data To Output Automatically after Measurements
You can specify the measurement data to output automatically to the PLC after measurements.
Data That Can Be Output
• Data Output
You can output up to 64 data items (256 bytes) with the output data (data 0 to data 31).
The measurement data from inspection items that can be output and the calculation results from the
expression settings can be output.
For data that can be output, refer to the Measurement Data That Can Be Used for External Outputs and
Calculations for each inspection item.
Assigning Detection Results to Output Data: p. 341
Assigning More Than One Detection Result to Output Data: p. 342
• Outputting Character Strings
You can output a character string for each of the inspection items that reads a character string, such as the
OCR inspection item. Also, when reading the character string fails, you can output a specific character string
that is set in advance.
Outputting Read Character Strings: p. 346

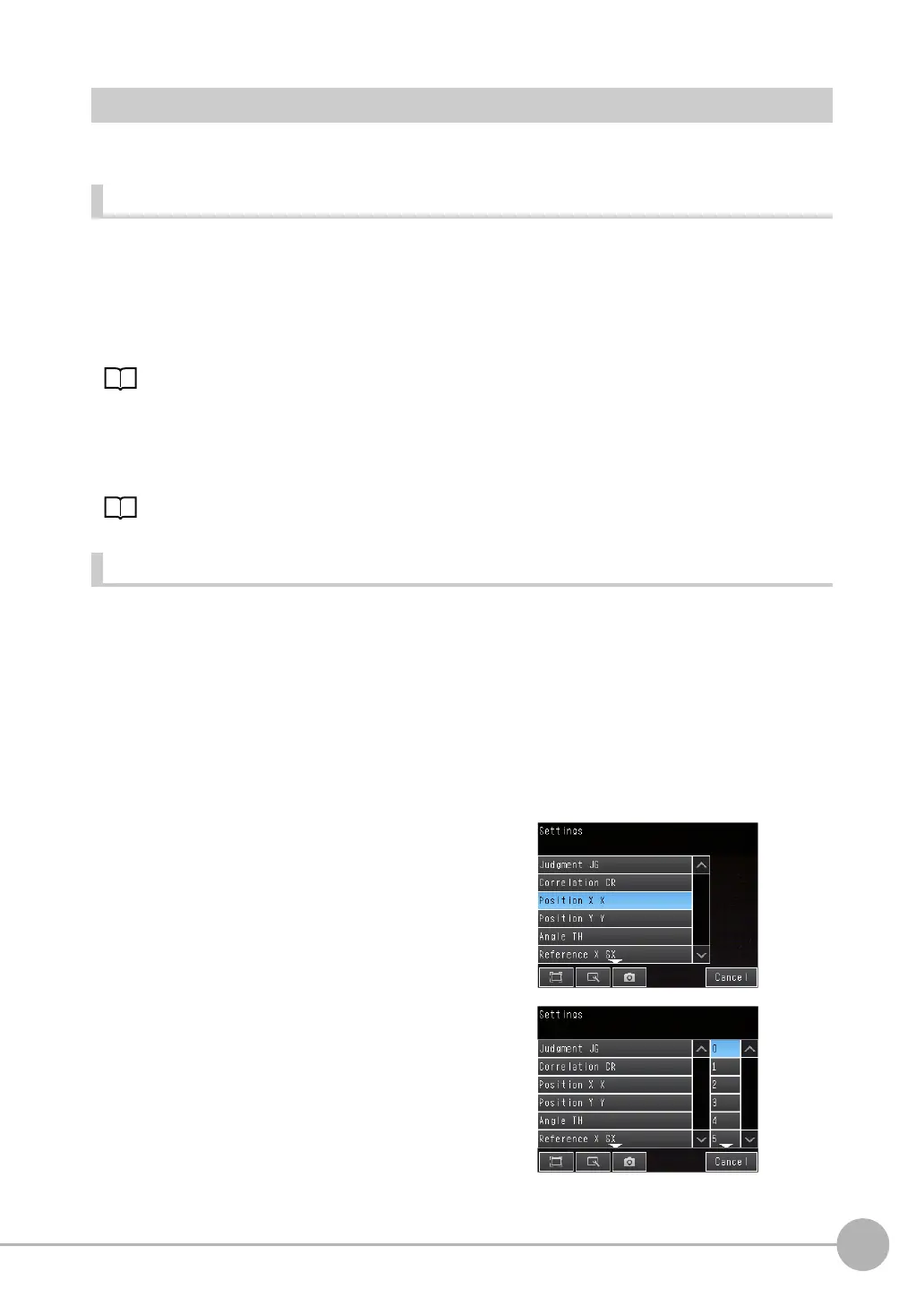

Assigning Inspection Results to Output Data
You can individually assign the parameters of the inspection items to output data (data 0 to data 31).
The following procedure shows how to assign the measured position X of [0. Search] to data 0 for a binary
output.
[In/Out] − [I/O setting] − [Output data setting] − [Link data output] − [Output data set]
1 Press [0. Data 0].
2 Press [Data setting].
3 Press [I0. Search].
4 Press [Position X X].
5 If the inspection item allows multi-point output,
press the number ([0] to [30]) of the inspection result
for which to output the data from the list of inspec-
tion results.
To register something to data 1 and higher, repeat this process.
The settings will be enabled after you restart the Sensor.
