Display Functions
FQ2-S4 User’s Manual
245
7
Convenient Functions

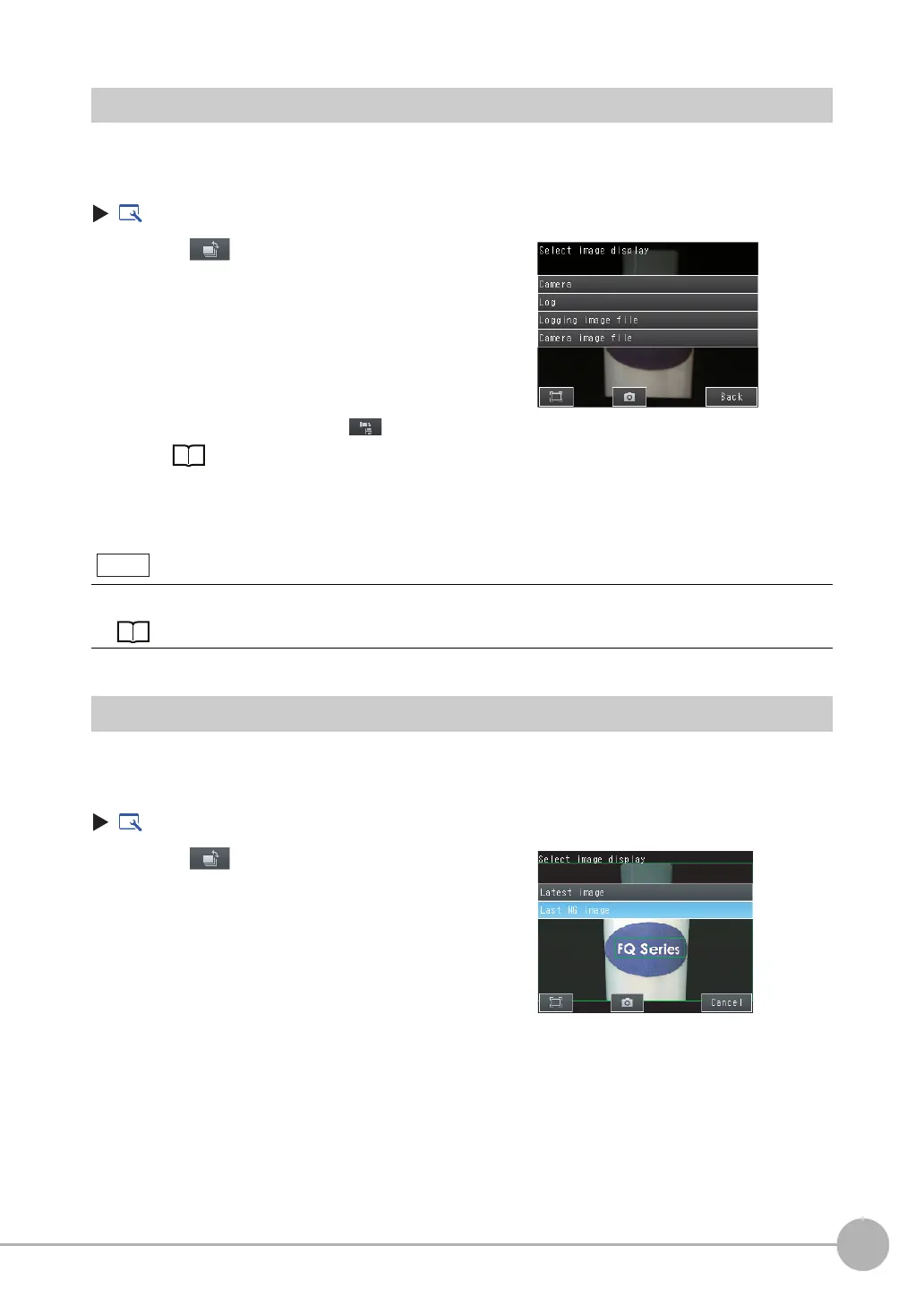

Displaying a Saved Image
You can display an image that was saved in internal memory in the Sensor or in an SD card. This can be done
to configure inspection items or to check measurements using saved images.
(Setup Mode)
Updating the Display and Measurement Results Only for NG Measurement Results
In Run Mode, you can specify updating the display of the image and measurement results only when the
measurement result is NG.
(Run Mode)
1 Press .
2
You can select one of the following types of images
to display.
• [Log]:
Images that are logged in the Sensor’s internal memory
• [Logging image file]:
Images that are logged in the SD card
• [Camera image file]:
Images that were logged with (Logging Button)
Saving the Currently Displayed Camera Image:
p. 268
3
Press the [Back] Button to return to the [Display] Dis-
play.
Refer to the following information for the procedures to save images.
Logging Measurement Data: p. 252
1 Press .
2 Press [Last NG image].
3
Press [Back].
