Adjusting Image Quality
FQ2-S4 User’s Manual
65
3
Taking Images
The lower the shutter speed/gain and brightness settings are, the darker the image becomes. If the Sensor is
used in a dark environment, make sure that the darkness of the image does not cause the measurements to be
unstable.
Improving the Image Quality of Metallic and other Shiny Surfaces
When objects with shiny surfaces are being measured, the lighting may be reflected off the surface and affect
the image.
To remove reflections, one of the following two functions can be used.

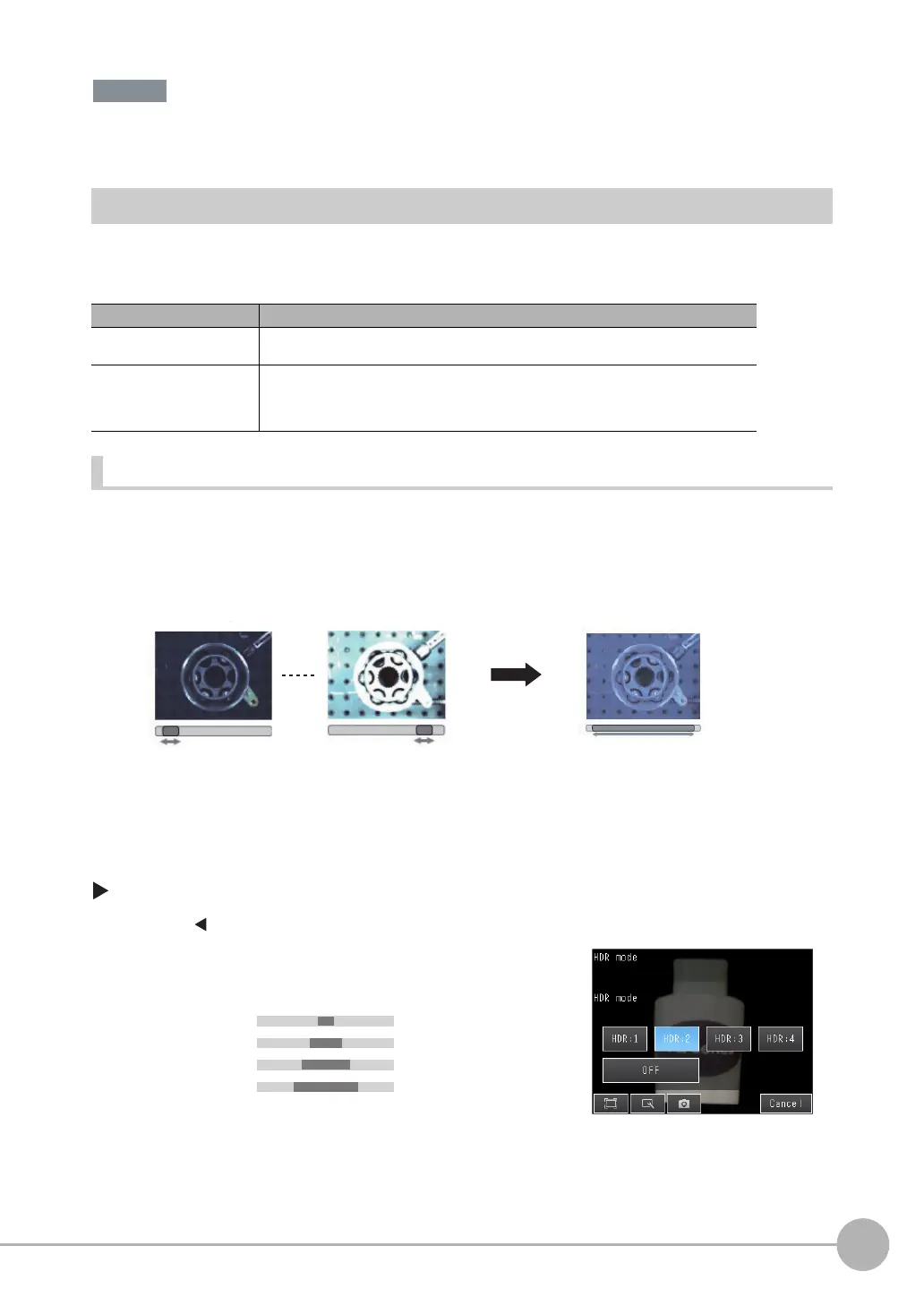

HDR Function
The HDR function is used for objects that have a large difference between light and dark areas. For this kind of
object, clear images cannot be achieved with the standard brightness setting. The HDR function combines
several images of different brightnesses (shutter speed) so that the resulting image has a lower degree of
contrast and can be measured stably for the desired characteristic.
Observe the following precautions.
• Use the HDR function only for objects that are not moving to avoid image blurring.
Several images are taken with different shutter speeds and combined. If the object moves while the image
is being taken, the image will become blurred.
• Images with different brightnesses are combined, so the resulting image will have a lower degree of con-
trast.
[Image] − [Camera setup]
Function Description
HDR (High Dynamic Range) If objects have contrasting light and dark areas, the dynamic range can be made wider to
improve the quality of the images.
Polarizing filter (for Sensors
with Built-in Lighting)
Specular reflections can be eliminated from an image by attaching a polarizing filter to the
Sensor.
If the measurement object must be moving, use a polarizing filter. Also, if reflections can-
not be sufficiently removed by using the HDR function, use a polarizing filter as well.
1 Press [ ] − [HDR] on the right side of the display.
2 Set the best level for the HDR Mode.
As shown below, the higher the level, the wider the combined dy-
namic range will be.
Important
Inputting Images with a Limit Range of Brightness
Combining Images to Create an Image
with a Wide Dynamic Range
Dark
Bright
Level 1
Level 2
Level 3
Level 4
Dark
Bright
To Next Page
