Logging Measurement Data and Image Data
FQ2-S4 User’s Manual
253
7
Convenient Functions

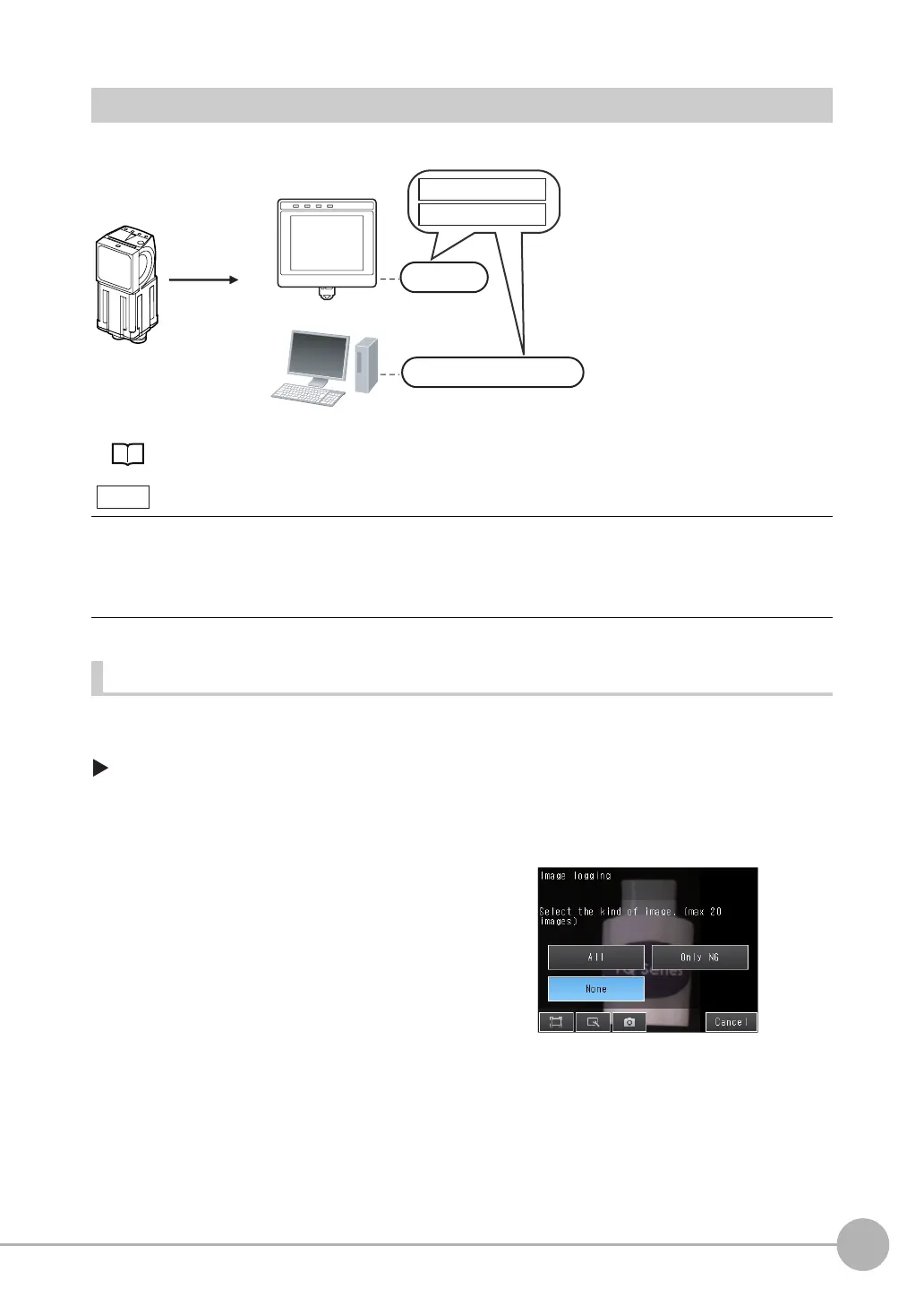

Logging All Data (File Logging)
Large amounts of measurement and image data can be saved in files in external memory (SD cards or computer).
*1: Image data and measurement data can be logged in the same way as for the Touch Finder by installing the PC Tool for FQ.
System Configuration: p. 26
Setting Logging Conditions
Use the following procedures to set the conditions to log data.
[In/Out] − [Log setting]
• Image Data
Only the data for the Sensor that is currently being displayed will be logged even if more than one Sensor is con-
nected.
If multiple sensors are displayed, or if the most recent NG sensor is displayed, only the results of the sensor that was
displayed before changing to the other sensor monitor screen will continue to be logged. Simultaneous logging of the
results of multiple sensors is not possible.
1 Press [Image logging].
2
Change the logging conditions, and then press
[Back].
Hard disk drive
Computer*1
Saved for
each
measurement
SD card
Data logging file
FQ2 Vision Sensor
Image logging file
Touch Finder
Note
