FQ2-S4-series Vision Sensors
20
FQ2-S4 User’s Manual
1-1 FQ2-S4-series Vision Sensors
The FQ2-S4 Series features Vision Sensors with integrated cameras and controllers. They can be used to
easily achieve simple inspections and measurements and to easily read and verify IDs.
You can use parallel controls, no-protocol communications on Ethernet, PLC Link communications on Ethernet,
and EtherNet/IP communications on Ethernet as standard features. You can also use a Data Unit to enable
control with full-scale parallel communications or RS-232C communications.
To set up and monitor the Vision Sensor, you can use either the Touch Finder or the PC Tool running on a
computer. For actual operation, you can use the Vision Sensor on a stand-alone basis.

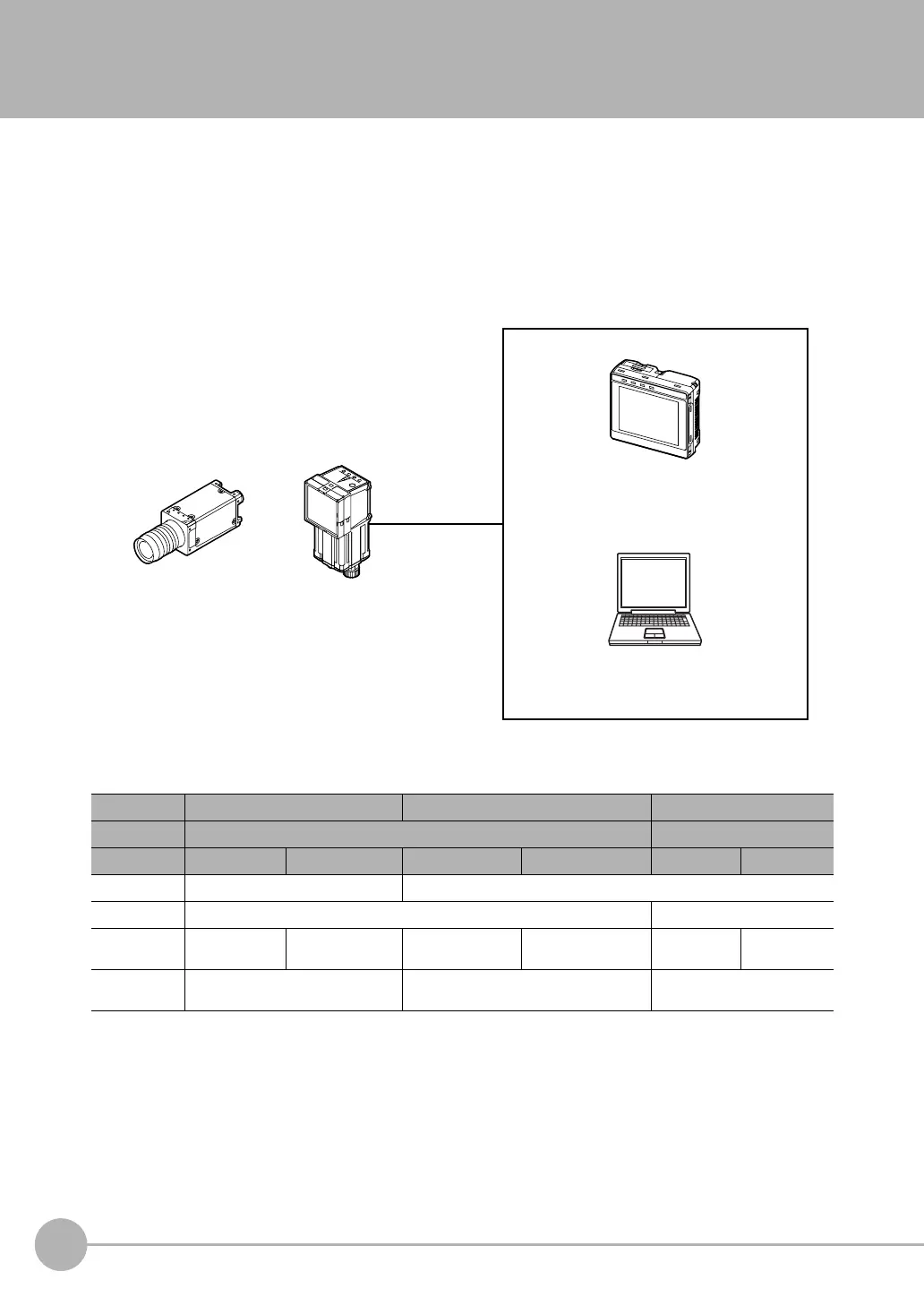

FQ2-S4-series Vision Sensors are available in models with 350,000, 760,000, and 1,300,000 pixels. There are
also Sensors with C-mounts that allow you to change the lens, and Sensors with Built-in Lighting. The
differences are given in the following table.
Pixels 350,000 760,000 1,300,000
Typ e Sensors with Built-in Lighting Sensors with C-mounts
Model FQ2-S4@@@@@ FQ2-S4@@@@@-M FQ2-S4@@@@@-08 FQ2-S4@@@@@-08M FQ2-S4@-13 FQ2-S4@-13M
Partial input Horizontally only Horizontally and vertically
Lens mount --- C-mount
Image process-
ing method
Real color Monochrome Real color Monochrome Real color Monochrome
Processing
resolution
752 × 480 928 × 828 1,280 × 1,024
The same functions as those that are
provided by the Touch Finder can be
performed from a computer. The PC Tool
is available free of charge.
After the Sensor has been set up, it can be
operated alone to perform measurements
without the Touch Finder or PC Tool.
PC Tool
Used to check images and set the
judgement parameters. It can also be
used to save measurement results and
check status during operation.
FQ2 Vision Sensor
Touch Finder
Setup, Image Confirmation, and Logging Tools
Sensor with C-mount
Sensor with
Built-in Lighting
To Next Page
