Inspecting with the Search Inspection Item
142
FQ2-S4 User’s Manual

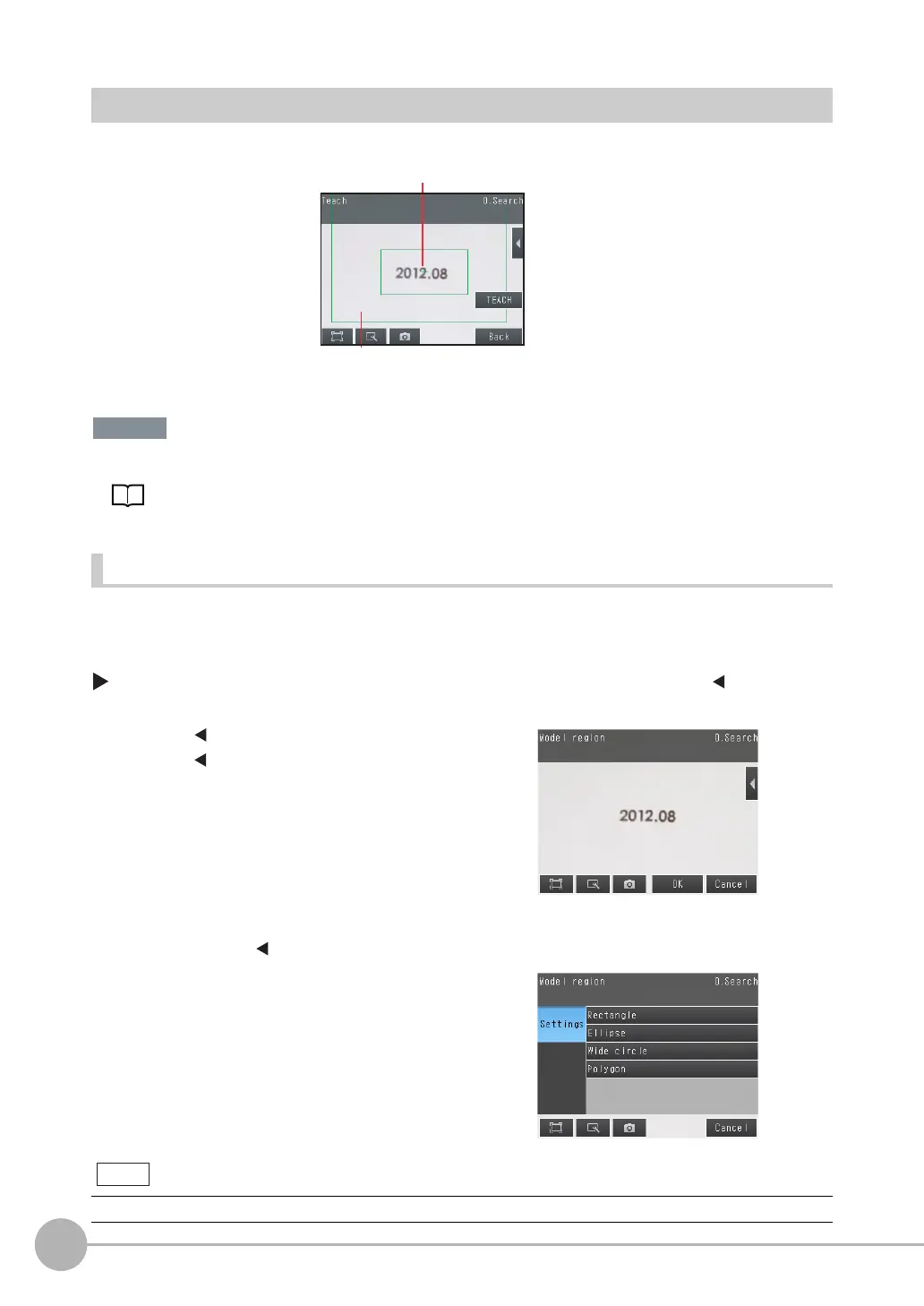

Editing the Model and Measurement Regions
This section describes how to edit the following regions.
If the model region is changed, perform teaching again.
p. 138
Changing the Model Registration Region to a Shape Other Than a Rectangle
One rectangular region is registered as the default model registration region.
Other than rectangles, circles and polygons can be set as the model registration regions.
[Inspect] − [Inspection] − [Search] − [Modify] − [Settings] Tab Page − [Teach] − [] − [Model
region]
1 Press [ ] – [Model region].
2 Press [ ] – [Delete] in the model registration editing
display.
The rectangle will be deleted.
3 Press [Yes].
4 Press [Add] in [ ].
5 Press the shape of the region that you want to use.
6 Draw the region.
7 Press [OK].
Up to 8 shapes can be combined to create a region for one model.
Measurement region
(region that is searched for the model)
Model registration region
Important
Note
To Next Page
