4
Setting Up Inspections
Inspecting with the Search Inspection Item
FQ2-S4 User’s Manual
137

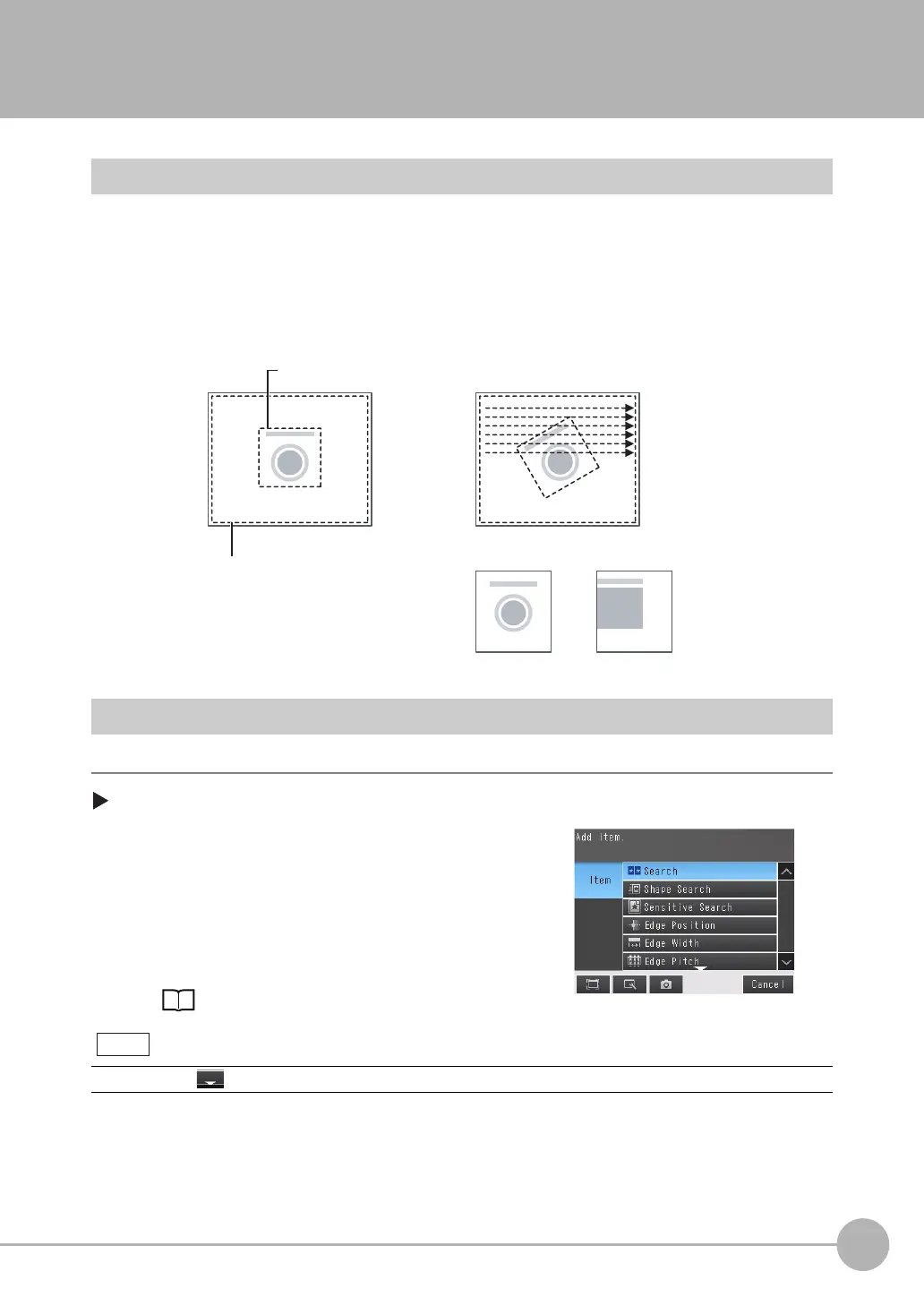

4-8 Inspecting with the Search Inspection Item
Search Inspection Item
This inspection item is used to perform inspections for shapes or for presence. The image pattern that is to be
measured is registered in advance and measurements are performed to see if the pattern is present or if the
shape is different.
The image pattern that is registered in advance is called the model. The degree to which the image matches
the model is called the correlation.
Setup Procedure for the Search Inspection Item
Step 1 Selecting the Inspection Item
[Inspect] − [Inspection]
1 Press an unused inspection item number and press
[Add item.].
2 Press [Search].
Registering inspection items: p. 94
Drag the arrow at the bottom of the menu upward to display all of the inspection items.
OK NG
Search region (region to
search for the model)
Search for sections that are similar to the model.
Model
(desired image pattern)
Sample Settings Sample Measurement
+
Note
To Next Page
