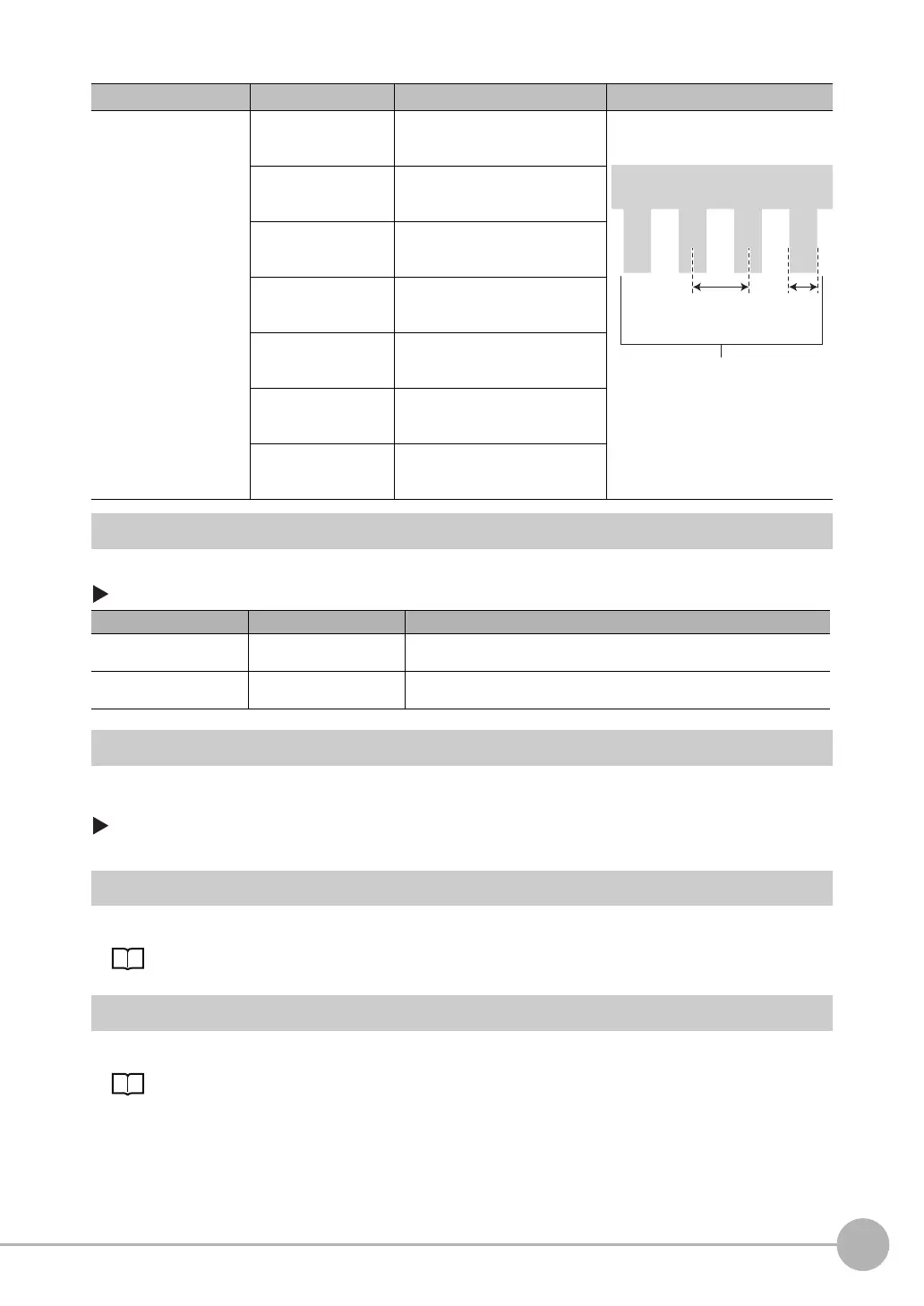

Inspecting with the Edge Pitch Inspection Item

FQ2-S4 User’s Manual

Setting Up Inspections

175

Changing Edge Detection Conditions (Sensors with Monochrome Cameras Only)

You can change the following measurement conditions for Sensors with Monochrome Cameras.

[Inspect] − [Inspection] − [Edge Pitch] − [Modify] − [Details] Tab Page − [Meas.parameter]

Reflect in Total Judgement

You can specify whether to reflect the judgement results of an inspection item in the overall judgement. (The

default is to reflect them.)

[Inspect] − [Inspection] − [Add item.] − [Edge Pitch] − [Details] Tab Page − [Output parameter]

Unstable Edge Pitch Results (Sensors with Color Cameras Only)

If the measurement result is not stable, adjust the [Edge level], [Noise level], and [Set color.] parameters.

p. 164

Increasing Edge Pitch Processing Speed

Make the measurement region smaller to reduce the processing time.

Changing the measurement region: p. 144

Item Parameter Setting Description

Judgement Parameter Edge pitch Range: 0 to 1000

Defaults: Lower limit: 0,

Upper limit: 1000

Set the range that is to be judged OK

for each parameter.

Average pitch Range: 0.0000 to 99,999.9999
