Inspecting with the Area Inspection Item
182
FQ2-S4 User’s Manual

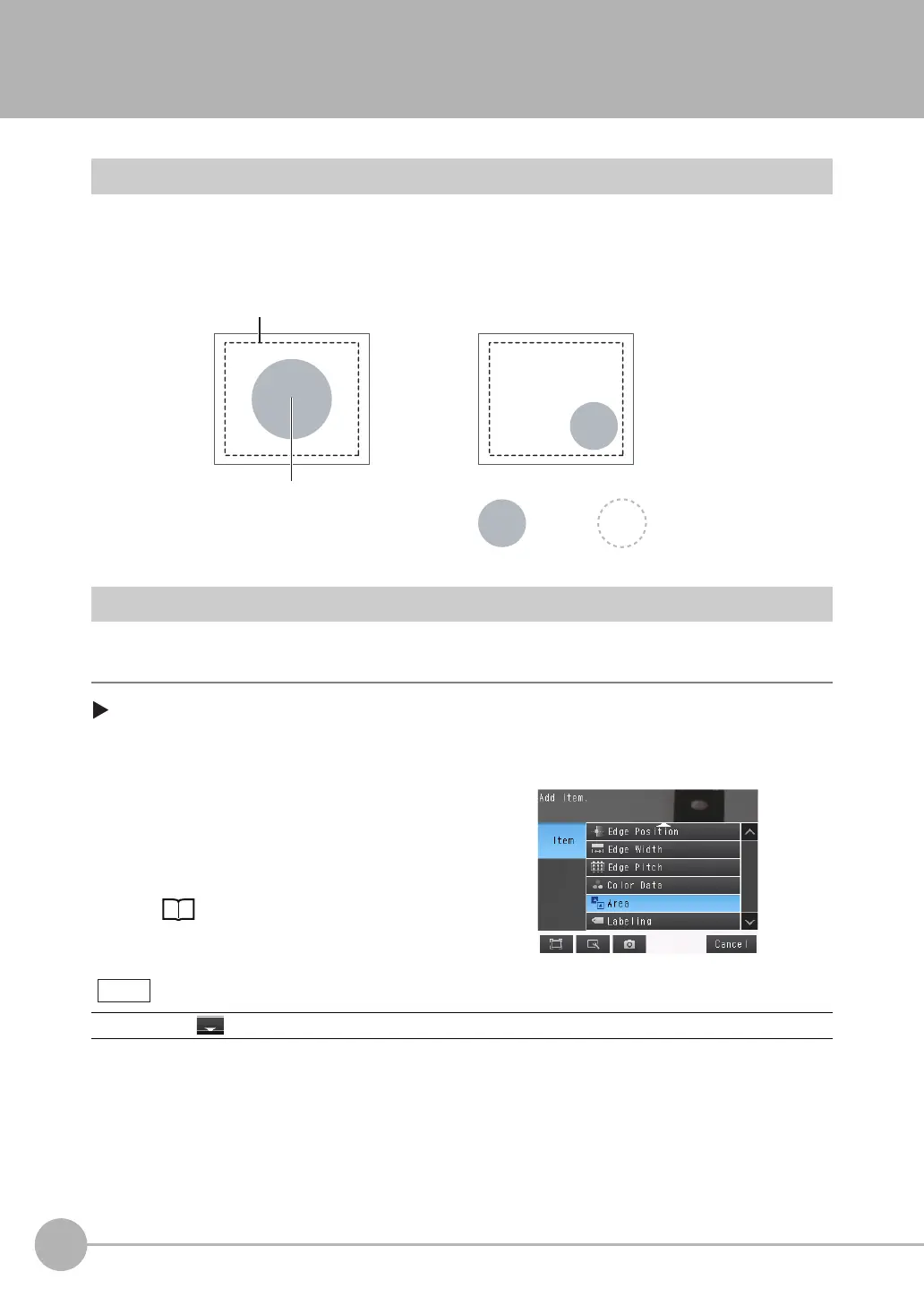

4-15 Inspecting with the Area Inspection Item
Area Inspection Item
This inspection item is used to measure sizes. It measures the amount of a color within the measurement
region. The size is calculated as a number of pixels and it is called the area.
Setup Procedure for Area
Step 1 Selecting the Inspection Item
[Inspect] − [Inspection]
1 Press an unused inspection item number and press
[Add item.].
2 Press [Area].
Registering inspection items: p. 94
Drag the arrow at the bottom of the menu upward to display all of the inspection items.
OK NG
Judges according to the
number of pixels (area) of the
specified color.
Specified color
Measurement region
Sample Settings Sample Measurement
Note
To Next Page
