PLC Link Connections
FQ2-S4 User’s Manual
377
Connecting through Ethernet
9
Changes to settings are not applied until the Vision Sensor is restarted. Therefore, save the settings and then restart
the Vision Sensor.
5-5 Saving Data to the Sensor p. 222
Restarting the Sensor p. 277
Setting the Data To Output Automatically after Measurements
You can set in advance the data to output automatically after measurements. (You can set up to 32 data items.)
Data That Can Be Output
• Data Output
You can output up to 32 data items (data 0 to data 31). The measurement data from inspection items that can
be output and the calculation results from the expression settings can be output. For data that can be output,
refer to the Measurement Data That Can Be Used for External Outputs and Calculations for each inspection
item.
Assigning Detection Results to Output Data: p. 377
Assigning More Than One Detection Result to Output Data: p. 378
• Outputting Character Strings
You can output a character string for each of the inspection items that reads a character string, such as the
OCR inspection item. Also, when reading the character string fails, you can output a specific character string
that is set in advance.
Outputting Read Character Strings: p. 383

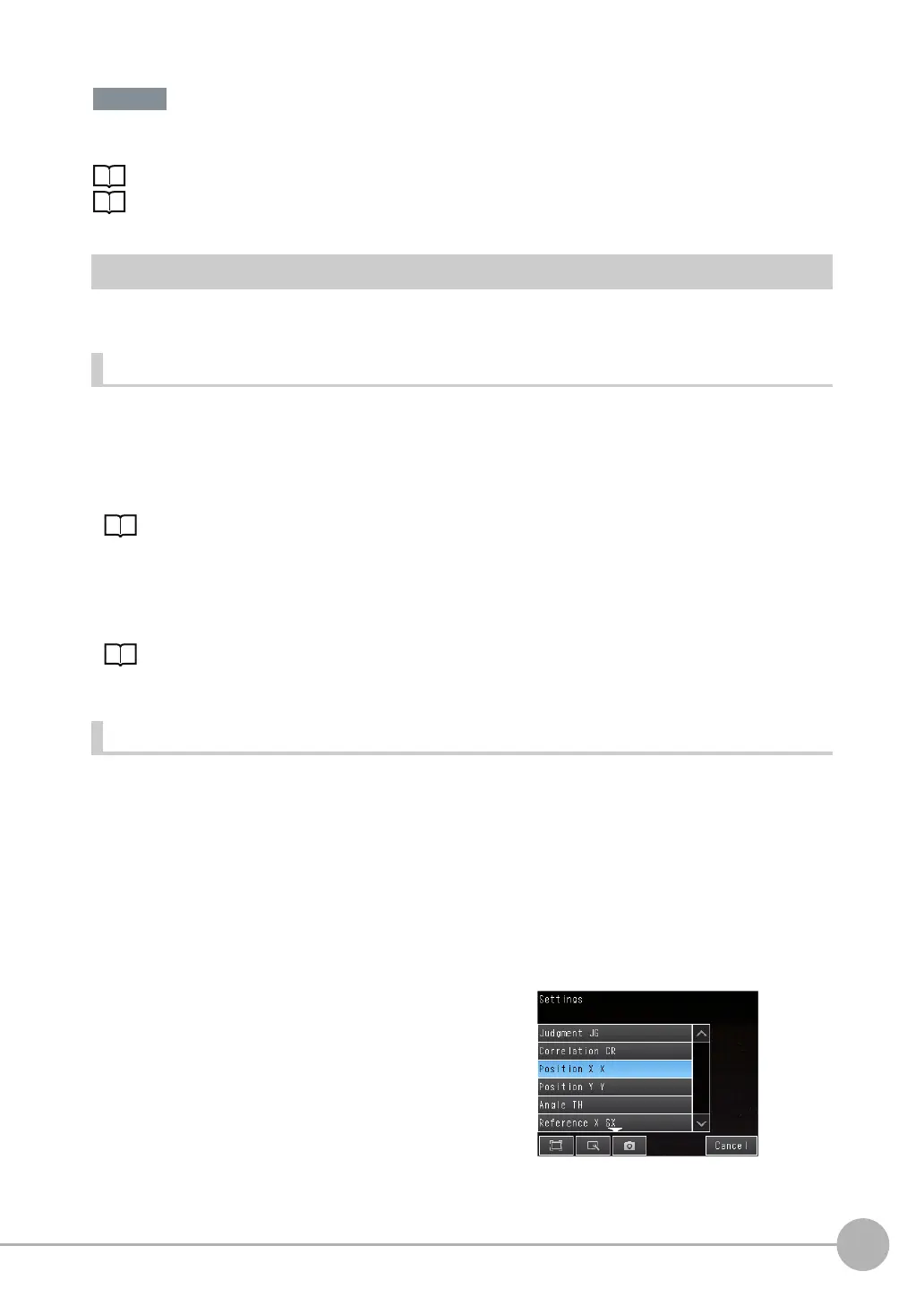

Assigning Inspection Results to Output Data
You can individually assign the parameters of the inspection items to output data (data 0 to data 31).
The following procedure shows how to assign the measured position X of [0. Search] to data 0 for a binary
output.
[In/Out] − [I/O setting] − [Output data setting] − [Link data output] − [Output data set]
1 Press [0. Data 0].
2 Press [Data setting].
3 Press [I0. Search].
4 Press [Position X X].
Important
