Logging Measurement Data and Image Data
256
FQ2-S4 User’s Manual

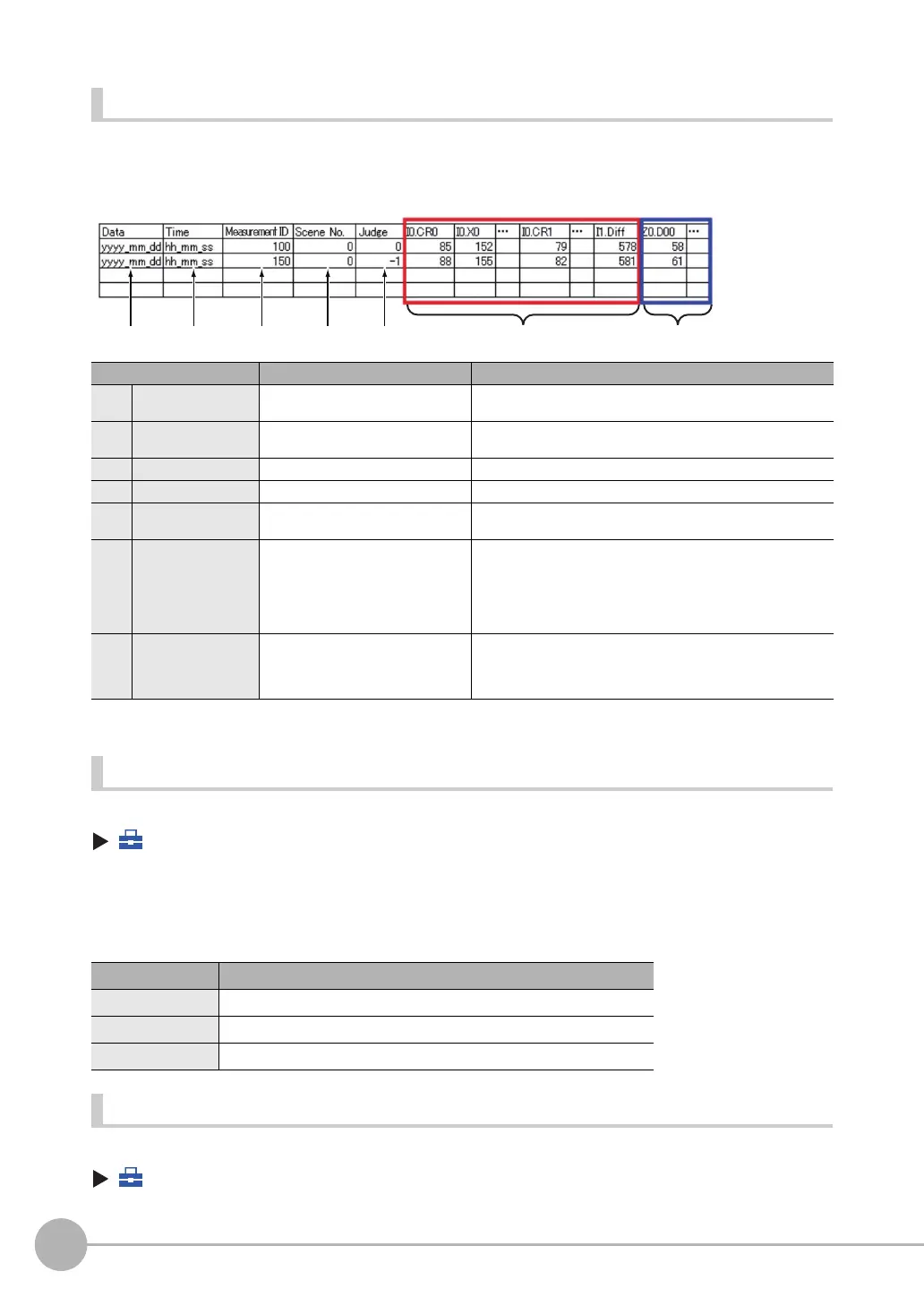

File Format
Image data: Image data is saved in a special format for OMRON Vision Sensors. (The file name extension is
IFZ.)
Measurement data: Measurement data is saved in the following CSV format.
*1: The data and time are not recorded with the measurement data. Therefore, this is not the date that the measurement was executed. This
is the date that the PC Tool or the Touch Finder obtained the data from the Sensor.
Changing the Format for Saving Measurement Data
The output CSV file format can be changed according to the external device.
(Setup Mode or Run Mode) − [TF settings] − [File format] − [Logging data file]
1 Press [Output format].
2 Change the required items in the CSV format.
3 Press [Back].
Enabling File Logging
You must enable file logging before you can execute it.
(Setup Mode) − [TF settings] − [Logging setting]
1 Press [ON].
Item Format Description
1) Date
*1
YYYY/MM/DD This is the date that the measurement data was obtained from
the Sensor.
2) Time
*1
hh:mm:ss This is the time that the measurement data was obtained from
the Sensor.
3) Measurement ID --- This is the measurement ID information.
4) Scene No. --- Scene number
5) Judge --- Overall judgement
0: OK, −1: NG, −2: NC (not measured)
6) Inspection item
region
I(inspection_item_number).(measure
ment_item)(detection_point)
Example: The correlation of the sec-
ond detection point in a search for
inspection item number 0 would be
given as follows: I0.CR2
The data selected for logging in the [Measurement data] under
[Log setting] is output. If multiple results are detected, only the
maximum number of data items that is set in the [Measurement
data] are output.
7) Expression region Z0.D**
Example: The fourth registered
expression would be given as fol-
lows: Z0.D04
This is the expression results for each expression.
Item Symbol
Field separator None, comma (default), tabs, space, colon, semicolon, CR, or CR+LF
Decimal symbol None, point (default), or comma
Record separator None, comma, tabs, space, colon, semicolon, CR, or CR+LF (default)
1) 2) 3) 4) 5) 6) 7)
