Inspecting with the Shape Search II Inspection Item
150
FQ2-S4 User’s Manual
Select the Results to Output
You can use multiple conditions to determine which results to output from all the objects detected with a
correlation at the candidate level or higher.
Only the results that meet all the specified conditions are output.
[Inspect] − [Inspection] − [Shape Search II] − [Modify] − [Details] Tab Page − [Meas.
Parameter]
Reflect in Total Judgement
You can specify whether to reflect the judgement results of an inspection item in the overall judgement. (The
default is to reflect them.)
[Inspect] − [Inspection] − [Add item.] − [Shape Search II] − [Details] Tab Page − [Output
parameter]

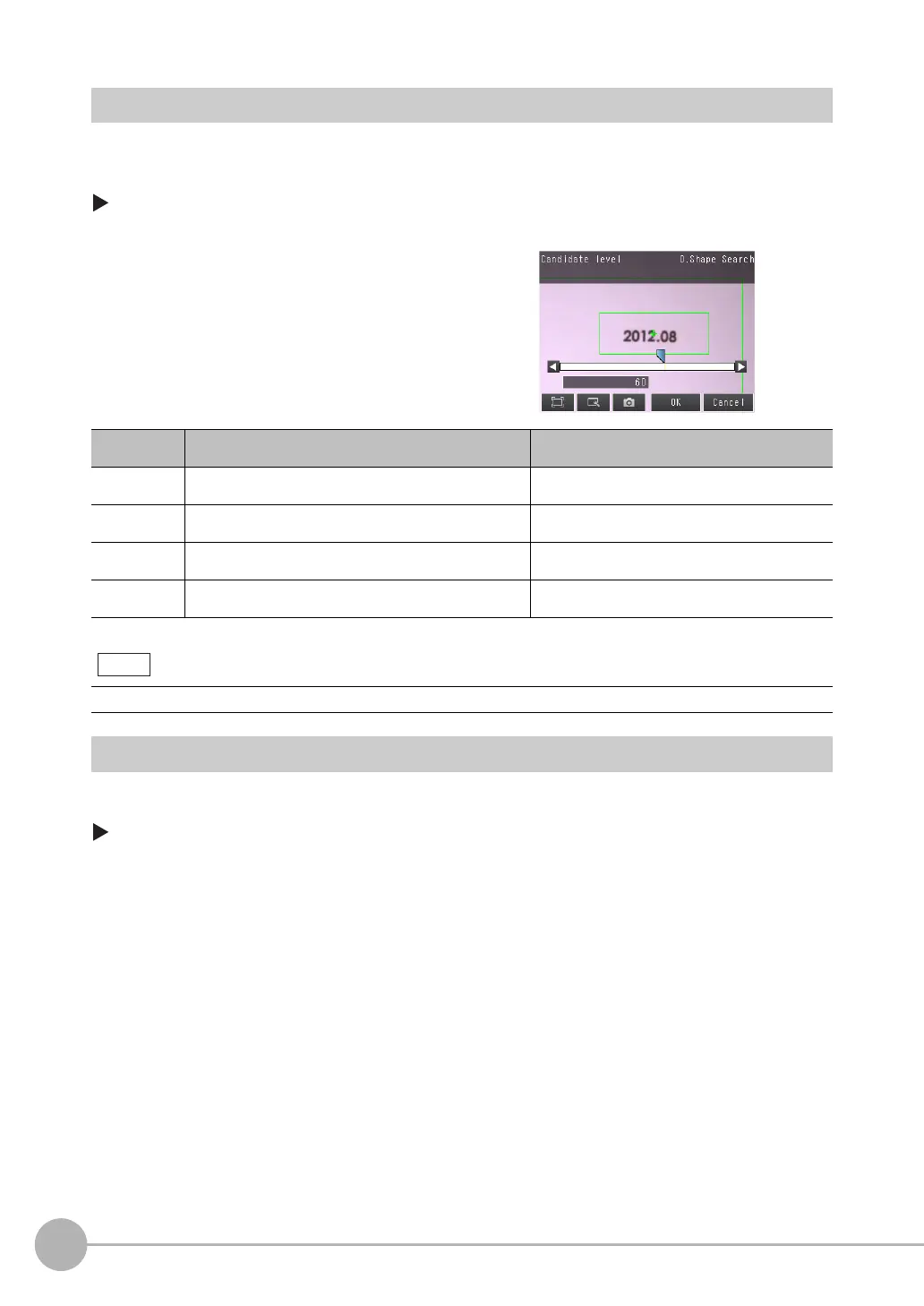

1 Press [Extraction condition] and adjust the candi-
date level so that only objects higher than a certain
correlation are detected.
2 Set the conditions for outputting the detected ob-
jects.
(Extraction X/Y and Detection Count)
Extraction con-
dition
Range Description
Candidate level 0 to 100
Defaults: Lower limit: 80, Upper limit: 100
Outputs only objects with a correlation that is higher
than the specified candidate level.
Extraction X −99999.9999 to 99999.9999
Defaults: Lower limit: −99,999.9999, Upper limit: 99,999.9999
Results are output only for objects with a measured X
coordinate that is within this range.
Extraction Y −99999.9999 to 99999.9999
Defaults: Lower limit: −99,999.9999, Upper limit: 99,999.9999
Results are output only for objects with a measured Y
coordinate that is within this range.
Detection
count
1 to 32
Default: 1
Sets the maximum number of detection results to out-
put.
The processing time changes if you change the candidate level.
Note
To Next Page
