2 Connect the Neck Strap or Hand Strap to the Mini-strap.
Mounting Sensor Data Units
Mounting to DIN Track

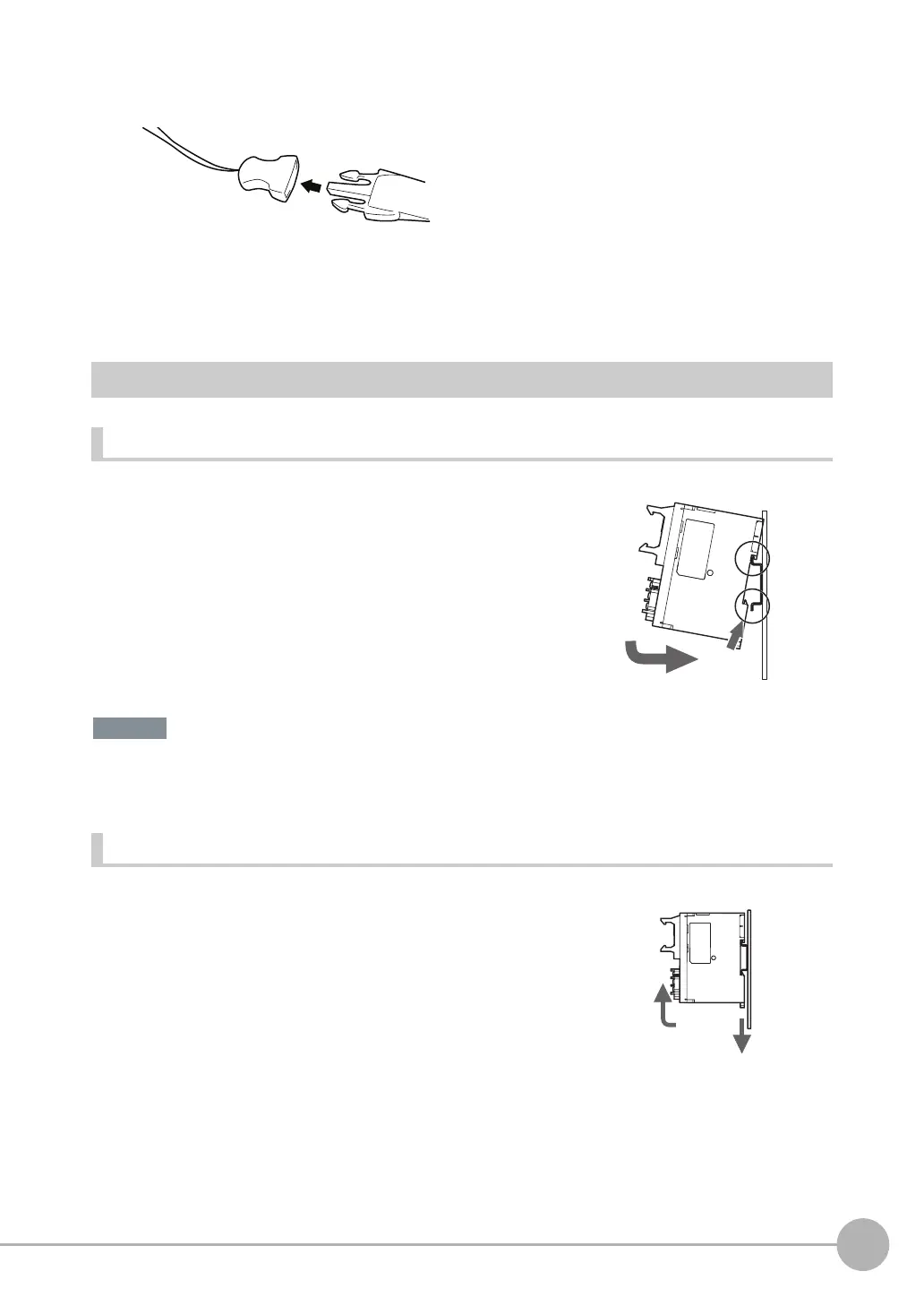

Installation Procedure
• Attach End Plates (sold separately) on the sides of the Sensor Data Unit on the DIN Track.
• Always hook the clip at the top of the Sensor Data Unit on the DIN Track first. If the lower clip is hooked on first, the
Touch Finder will not be mounted very securely.
Removal Procedure
1 Lock the sliders at the top and bottom of the Sensor Data
Unit.
2 Press the slider on the Sensor Data Unit to the top.
3 Hook the clip at the top of the Sensor Data Unit on to the DIN
Track.
4 Press the Sensor Data Unit onto the DIN Track until the bot-
tom clip clicks into place.
1 Pull down on the slider on the Sensor Data Unit.
2 Lift the Sensor Data Unit at the bottom and remove it from
the DIN Track.
Mini-strap
Neck Strap or Hand
Strap
1
2
3
3
Important
2
1
