Wiring
FQ2-S4 User’s Manual
2
Installation and Connections
51
Charging the Battery
This section describes how to charge and install the FQ2-D31 Battery and provides applicable precautions.
Charge the Battery while it is attached to the Touch Finder.
Use the AC adapter to charge the battery.

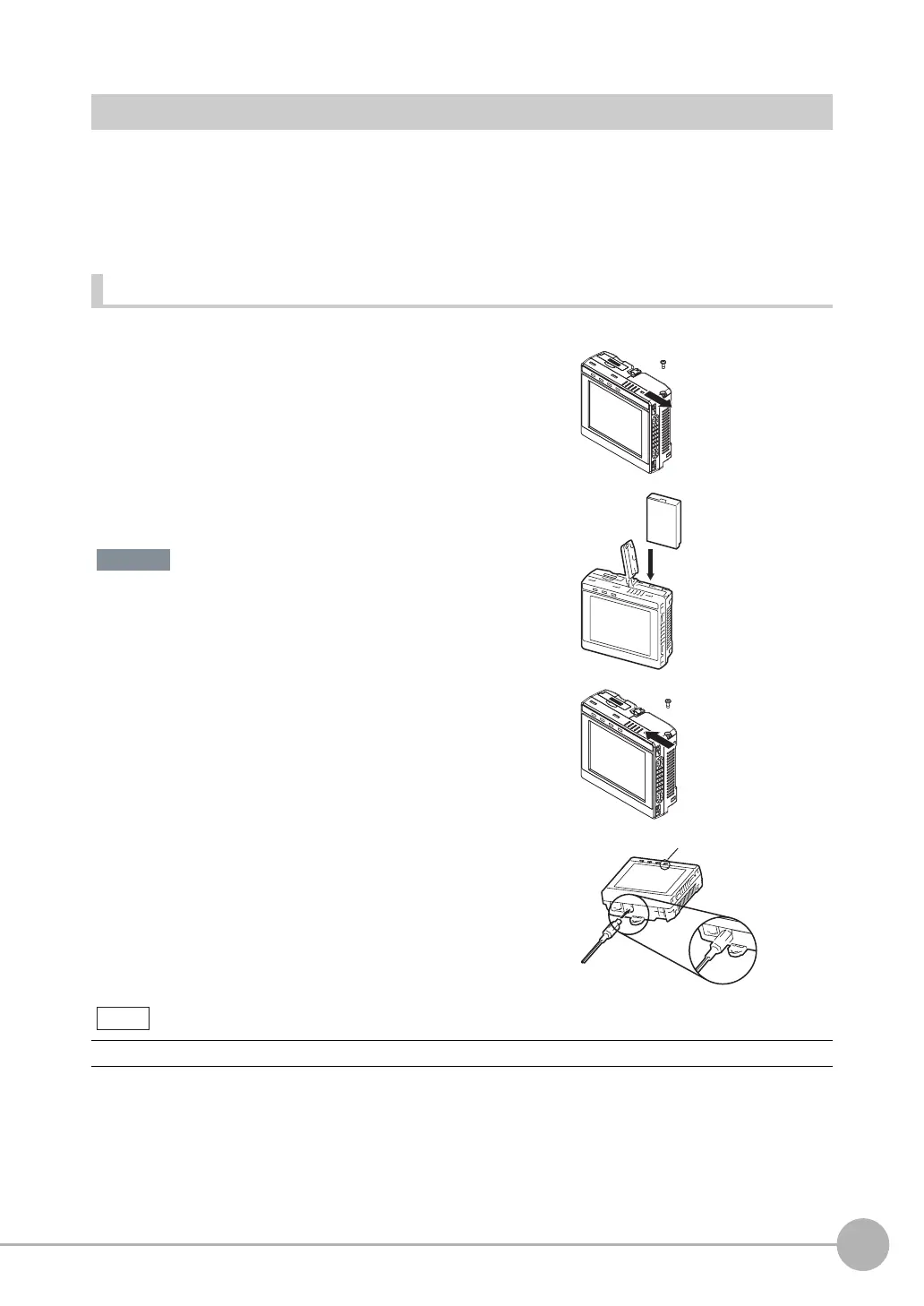

Mounting the Battery in the Touch Finder
1 Remove the screw from the battery cover on the top of the
Touch Finder, slide the cover in the direction of the arrow,
and open the battery cover.
2 Face the rounded side of the battery toward the back of the
Touch Finder and insert the battery.
Do not insert the battery in the wrong orientation.
3 Close the battery cover, slide the battery cover in the direc-
tion of the arrow, and tighten the screw on the battery cov-
er.
4 Attach the AC adapter to the Touch Finder to start changing
the battery.
The CHARGE indicator will be lit while the battery is being
charged. It will go out when charging the battery has been com-
pleted.
The Touch Finder will operate even if the AC adapter is connected when no battery is mounted in the Touch Finder.
Important
CHARGE indicator
Note
To Next Page
