Inspecting with Color Data Inspection Item
178
FQ2-S4 User’s Manual

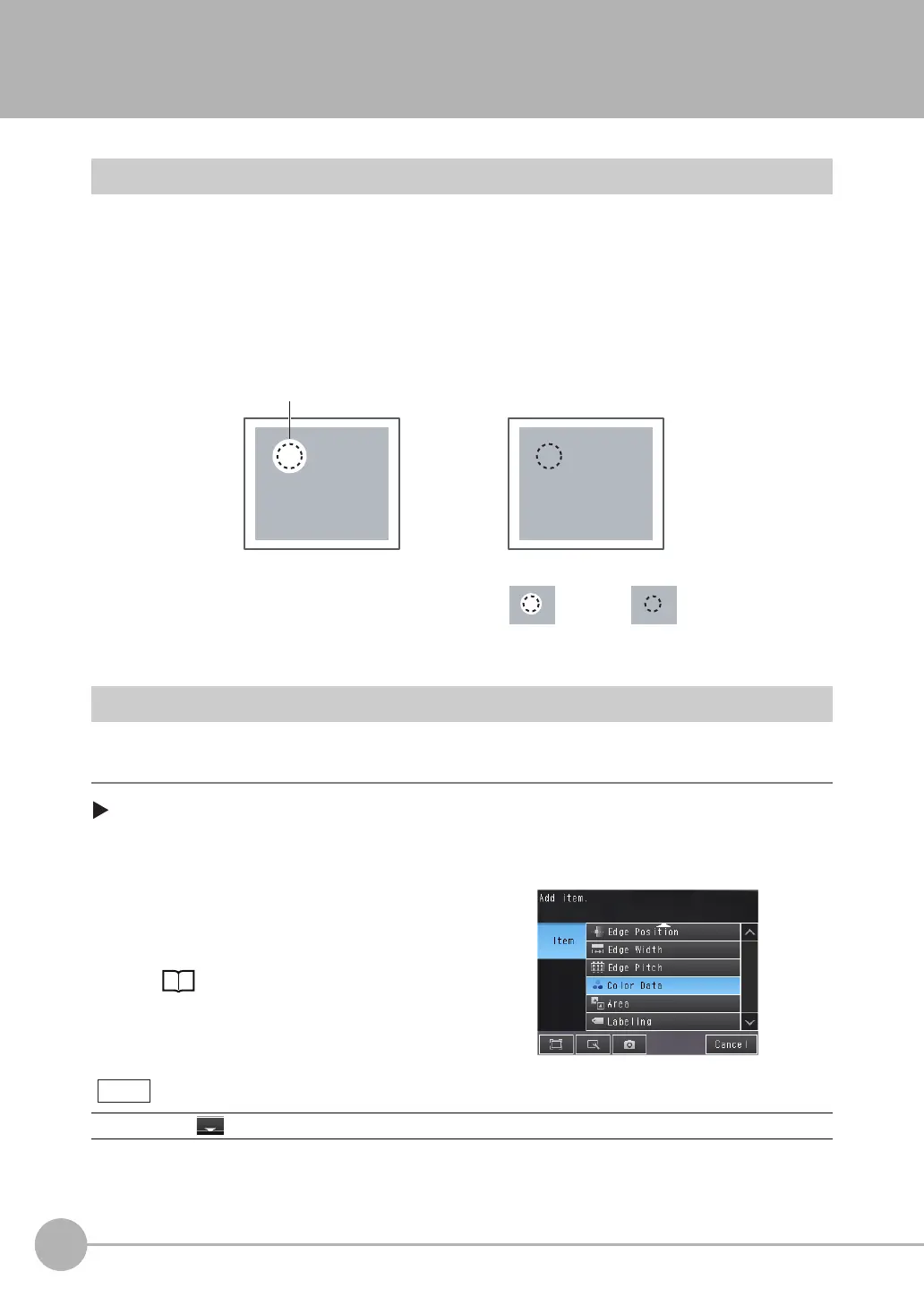

4-14 Inspecting with Color Data Inspection Item
Color Data Inspection Item
This inspection item is used to perform inspections for foreign matter with a different color or for presence. The
region is set for a portion of the image with the color that is to be measured. This region is called the
measurement region. The average color within the measurement region is measured.
If a Sensor with a Monochrome Camera is connected, the average density in the measurement region is found
and inspections are performed for the difference from the registered reference value (density average) and the
variation within the measurement region (density deviation).
If a Sensor with a Monochrome Camera is connected, the average density in the measurement region is
measured and the density deviation is used for judgements.
Setup Procedure for Color Data Inspection Item
Step 1 Selecting the Inspection Item
[Inspect] − [Inspection]
1 Press an unused inspection item number and press
[Add item.].
2 Press [Color Data].
Registering inspection items: p. 94
Drag the arrow at the bottom of the menu upward to display all of the inspection items.
OK NG
Measurement region
Judges using the average
color of the measurement
region.
Sample Settings Sample Measurement
Note
To Next Page
