Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
102 01/2017
4.2.14

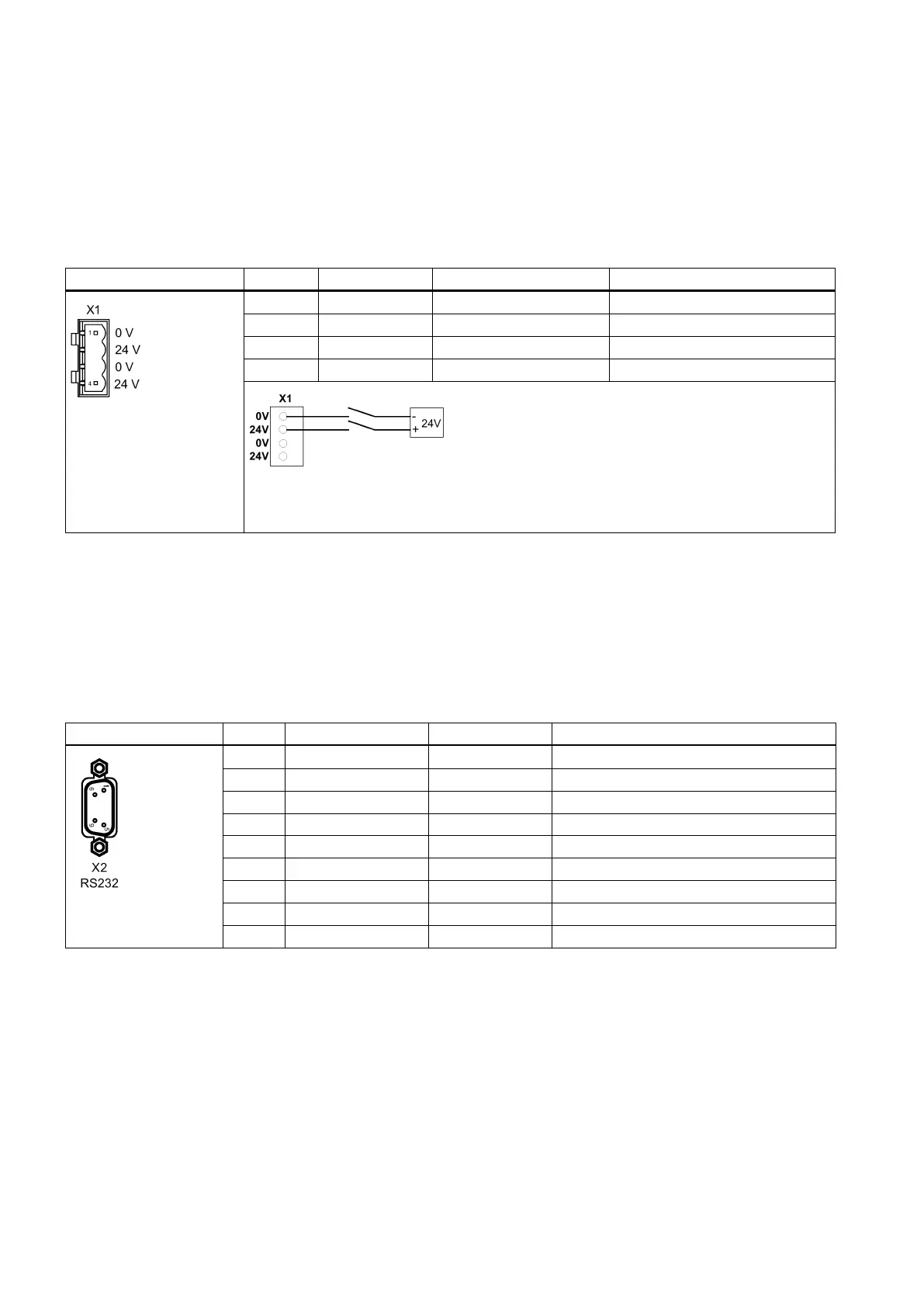

Power supply interface - X1
The PPU uses a 24 VDC power supply. You can connect the 24 VDC power supply via interface X1. For more information
about the 24 VDC power supply, see Section "External 24 VDC power supply (Page 29)".
Pin assignment
Type
Combicon 4-pin
Cable
Max. length: 10 m
Illustration
Pin1
Signal
Name
Comment
1
0 V
M24
0 V
2
24 V
P24
+24 V
3
0 V
M24
0 V
4
24 V
P24
+24 V
Note:
The 0 V terminals as well as the 24 V terminals are internally connected in parallel. This
means that you can connect the 24 V power supply to either of the terminal pairs.
4.2.15
RS232 interface - X2 (PPU160.2 only)
You can establish communication between a computer and the control system with PPU160.2 via the RS232 interface.
Pin assignment
Type
Sub-D, 9-pin, male
Cable
Type: RS232
Max. length: 10 m
Illustration
Pin
Signal name
Signal type
Comment
1
-
-
Not assigned
2
RxD
I
Receive data
3
TxD
O
Transmit data
4
DTR
O
Data terminal ready
5
M
VO
Ground
6
DSR
I
Request set ready
7
RTS
O
Request to send
8
CTS
I
Clear to send
9
-
-
Not assigned
