15.3.2

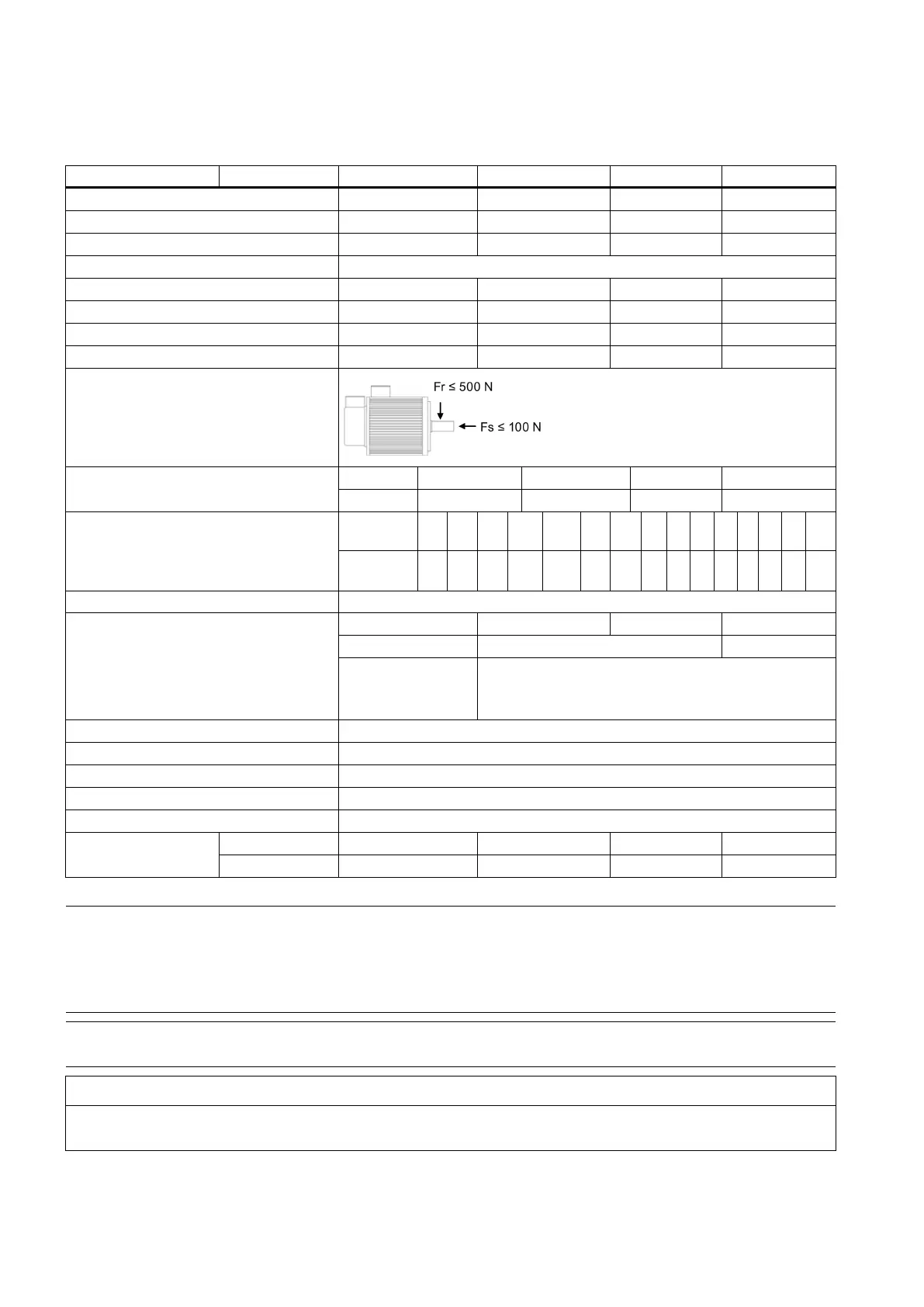

SIMOTICS S-1FL5 servo motors
Technical data
Order No.
1FL50...
60
62
64
66
Rated power
0.8 kW
1.2 kW
1.6 kW
2.0 kW
Rated torque
4 Nm
6 Nm
7.7 Nm
10 Nm
Maximum torque
8 Nm
12 Nm
15.4 Nm
20 Nm
Rated speed
2000 rpm
Rated current
4 A
6 A
7 A
10 A
Maximum current 8 A 12 A 14 A 20 A
Moment of inertia
11.01 10
-4
kgm
2
15.44 10
-4
kgm
2
20.17 10
-4
kgm
2
25.95 10
-4
kgm
2
Mechanical time constant
3.660 ms
2.789 ms
2.710 ms
2.071 ms
Maximum radial force (Fr, Fs)
Connector of motor winding
Terminals
U
V
W
PE
Number
2
3
4
1
Connector of encoder Signal 5
V
0
V
A+ A- B+ B- Z+ Z- U
+
U
-
V
+
V
-
W
+
W
-
PE
Number 2 3 4 7 5 8 6 9 1
0
1
3
1
1
1
4
1
2
1
5
1
Encoder resolution
2500 C/T
Mechanical brake
Number
1
2
3
Power
24 VDC (-15% to +10%)
PE
Parameter
•
Working current ≤ 0.6 A
• Brake torque ≥ 12 Nm
•
Rotor inertia = 1.67 x 10
-4
kgm
Degree of insulation
B
Operating temperature
0 °C to 40 °C
Relative humidity
≤ 90% (without condensation)
Storage temperature
5 °C to 40 °C
Degree of protection
IP54
Weight
With brake
8.6 kg
10.2 kg
11.2 kg
13.2 kg
Without brake
6.0 kg
7.6 kg
8.6 kg
10.6 kg
Note
The above
-mentioned maximum value for Fs cannot be exceeded.
No Fr should be applied to a motor with brake.
The brake is only for holding purpose besides some
occasional emergency stops.
Do not break the cable during your installation work or machine moves. No force should be applied to the cables.
Note
The motor can only be connected with Siemens SINAMICS V60 drives and relevantly designed cables, and vice v
ersa.
NOTICE
Motor damage caused by direct connection with a 3-phase power supply
Direct connection of the motor with a 3-phase power supply will cause damages to the motor.
