Commissioning Manual
01/2017
209
Note that the compatibility mode must not be activated to use the CNC lock function of the control
system.
Click this button to confirm and close the dialog box.
Downloading/uploading/comparing PLC applications

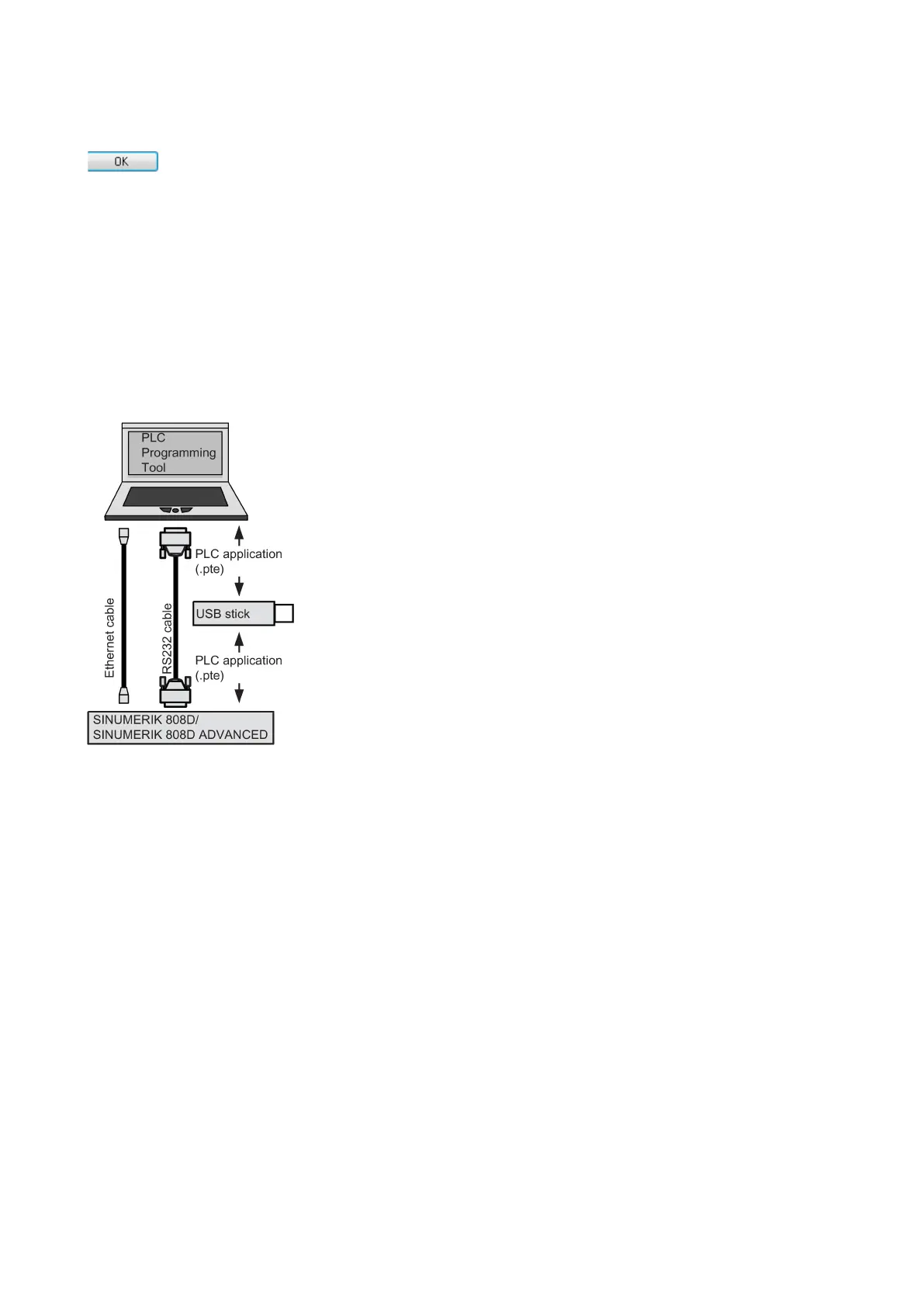

You can save, copy, or overwrite a PLC project on the control system by using the following:
● PLC Programming Tool
● USB memory stick
● Network drive
The
contains the PLC user program, including all of the important information (symbols, comments, ...).
You can upload/download a PLC project from/to the control system with PLC Programming Tool. Also with this tool, you can
import/export the PLC project in the "
" format. Additionally, you can read/write the PLC project in the "
" format from/to
a USB memory stick or the connected network drive directly on the control system.
Downloading a PLC project to the control system
You can write the transferred data into the permanent memory (load memory) of the control system with PLC Programming
Tool, a USB memory stick, or the network drive.
To download a PLC project with PLC Programming Tool, proceed as follows:
Establish the communication between the control system and PLC Programming Tool. For
more information, see Section "Connecting with PLC Programming Tool (Page 44)".
Open the desired PLC project in PLC Programming Tool.
