System connection overview
SINUMERIK 808D ADVANCED control system

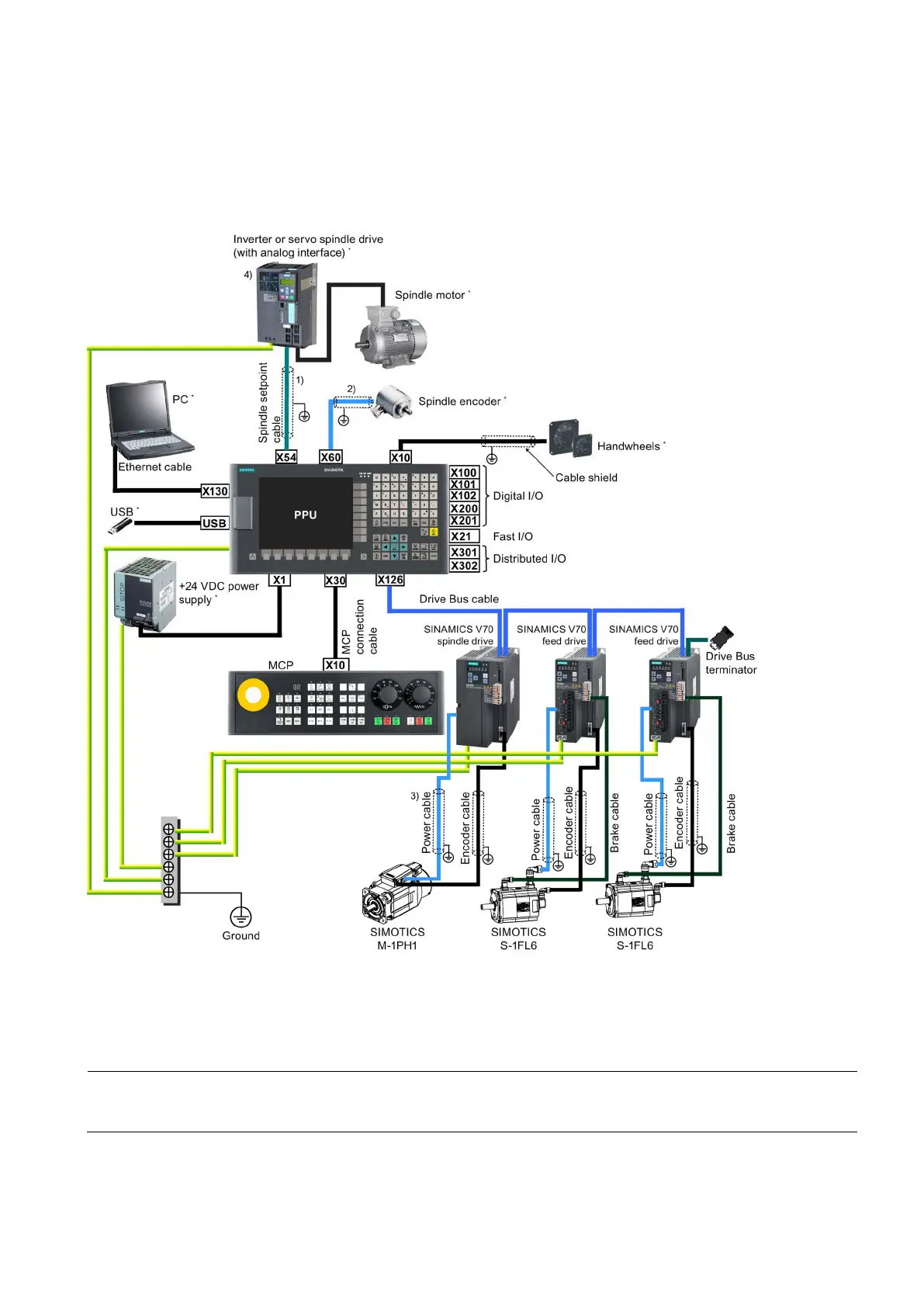

The following configuration shows a typical example of the SINUMERIK 808D ADVANCED T controller (PPU161.3) with the
SINAMICS V70 servo system, controlling two feed axes and one digital spindle. Note that the devices with an asterisk ("*")
are not included in the scope of delivery.
1), 2)
For more information about cable shield connection, see Section "Analog spindle interface - X54, spindle encoder
interface - X60 (Page 99)".
3)
For more information about cable shield connection, see Section "Connecting the drive to motor (Page 126)".
4)
For more information about configuring the analog spindle, see Section "Configuring the drives (PPU161.3 and PPU160.2
only) (Page 232)" or "Configuring an additional spindle (Page 260)".
information about connecting the drive to a line filter or an external braking resistor, see Section "Connecting the
(Page 126)".
