Siemens SINUMERIK 808D Commissioning Manual

Commissioning Manual
01/2017
87
⑯
-
Slot for the system CF card (available on PPU161.3 only)
PPU front
⑰
-
USB interface
4.2.4

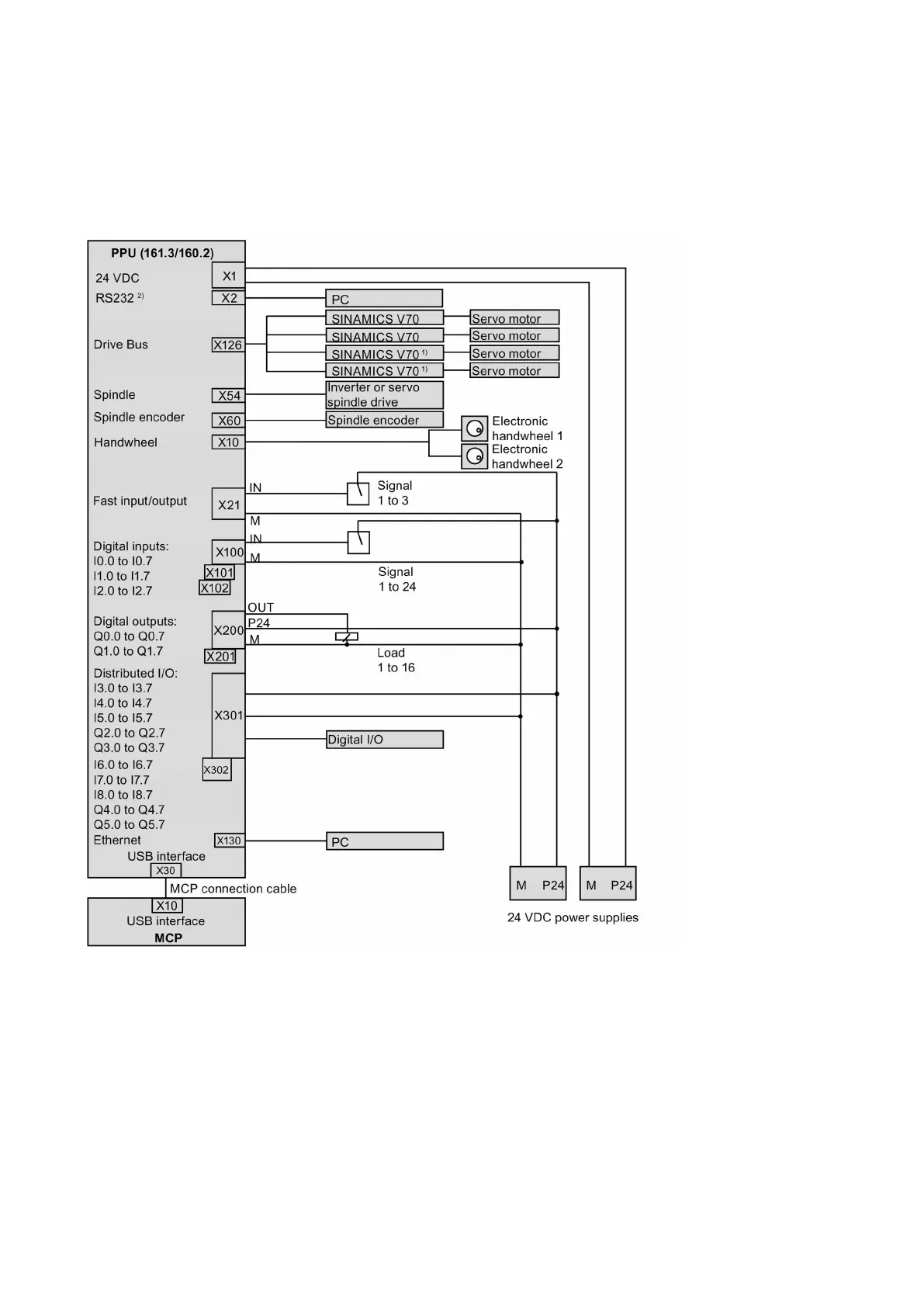

Connecting the PPU
1)
For the SINUMERIK 808D ADVANCED T control system, connecting to the third and fourth drives is optional and depends
upon whether you activate the software option "additional axis". For the SINUMERIK ADVANCED M control system,
connecting to the fourth drive is optional and depends upon whether you activate the software option "additional axis".
2)
The RS232 interface (X2) is available only for PPU160.2.
